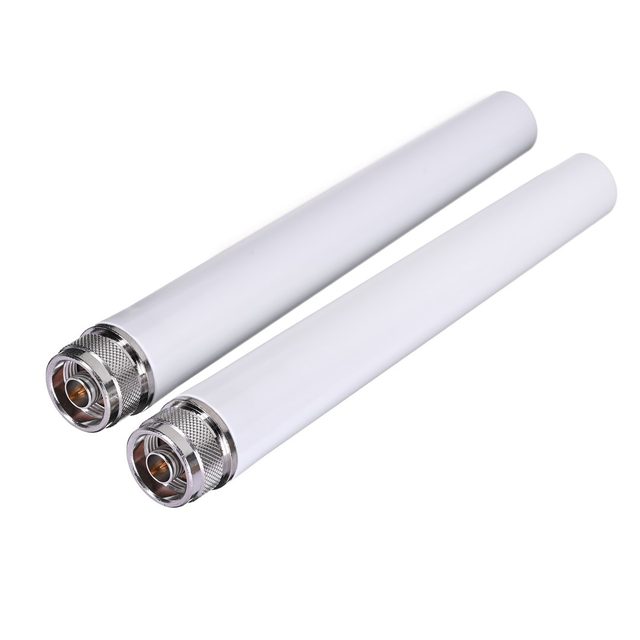

Zyxel ANT2105-ZZ0201F network antenna Omni-directional antenna N-type 7 dBi

Build a Wholesome WLAN Infrastructure with ZyXEL Selected Accessories

- Compatible with ZyXEL WLAN devices to get optimal signal quality
- Matching colors and exterior looks
- Multiple options to meet your current network environments

When building a wireless LAN infrastructure, the IT staff should consider several factors influencing transmission efficiency, such as different facility sizes, building materials and interior divisions. To address this concern, a comprehensive WLAN solution for wireless LAN deployments can be critical.

To facilitate the installation process, ZyXEL offers a complete range of 2.4 GHz and 5 GHz antennas, cables and other accessories for Access Points (APs) to enable customized wireless deployments for almost any installation types.

The ZyXEL antennas are available in various space, directionality, gain and range capabilities in different form factors. With appropriately coupled antennas and APs, businesses will enjoy prefect WLAN environments with superior coverage, better reliability and higher data rates in all kinds of facilities. In addition, the ZyXEL low-loss cables can be used to extend the distance between any ZyXEL 2.4 GHz and 5 GHz AP and the antenna through N-plug or RP-SMA connectors.

2 IN STOCK

SKU: ANT2105-ZZ0201F

Manufacturer: Zyxel Zyxel

RRP Price €68.93

Specifications

Performance

Frequency band
2.4/5 GHz
Antenna gain (2.4 GHz)
4.5 dBi
Antenna gain (5 GHz)
7 dBi
Impedance
50 Ω
Horizontal beam width
360°
Vertical beam width
30°
Horizontal beam width (2.4 GHz)
360°
Vertical beam width (2.4 GHz)
30°
Horizontal beam width (5 GHz)
360°
Vertical beam width (5 GHz)
15°
Antenna gain level (max)
7 dBi

Features

Antenna type
Omni-directional antenna
Antenna connector type
N-type
Polarization
Vertical polarization
Product colour
White
Purpose
Outdoor

Operational conditions

Operating temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Height
183 mm
Diameter
2.2 cm
Weight
70 g

Logistics data

Harmonized System (HS) code
85177100
