Tripp Lite B005-HUA4 4-Port HDMI/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing

Tripp Lite B005-HUA4 4-Port HDMI/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing

Name: Tripp Lite B005-HUA4 4-Port HDMI/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, USB Sharing
Brand: Eaton
SKU: B005-HUA4
Price: 174.29 EUR
Availability: OutOfStock

Connects 4 HDMI-Enabled Devices to a Single HDMI Monitor, Keyboard and Mouse
This KVM switch lets you access, control, boot and reboot four computers with HDMI ports and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other HDMI-enabled devices. All computers share one HDMI monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

Switching Between Computers Is Fast and Easy

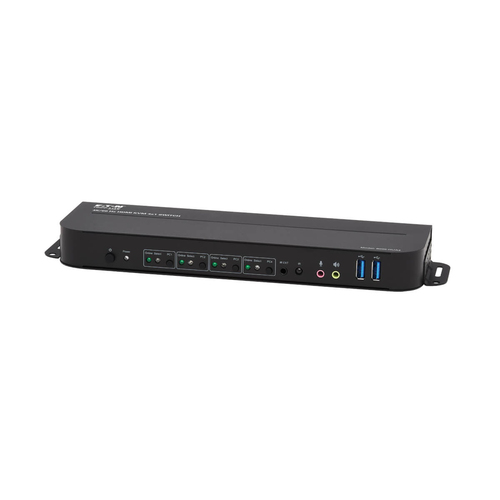

Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: Mouse Traversal is a permanent feature and cannot be disabled

USB Hub Lets You Share Peripherals Between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. The hub is backward compatible with USB 1.1 devices.

Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-HUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as 7.1-channel surround sound and HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

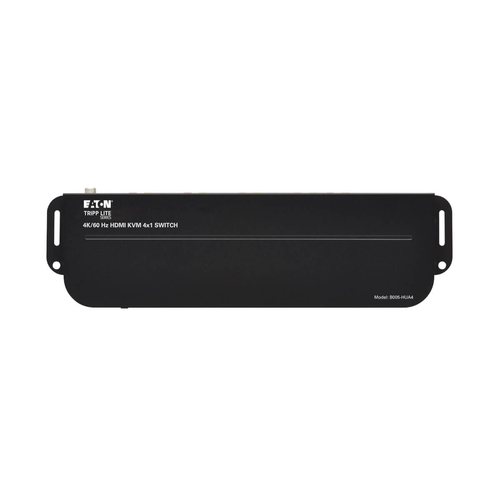

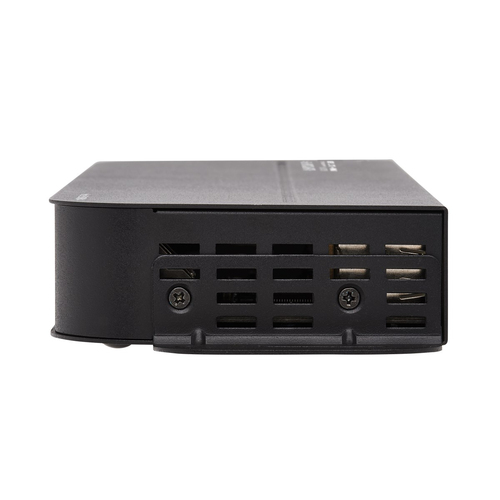

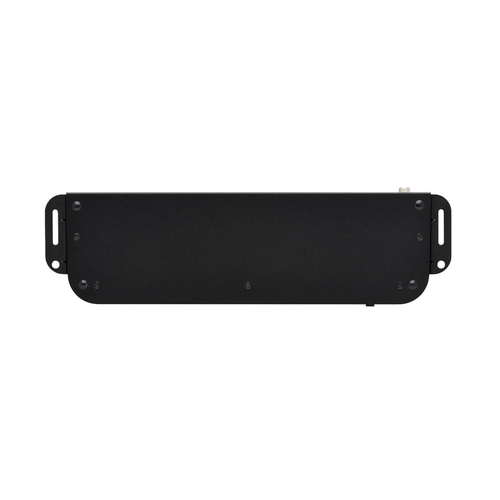

Designed for Convenient Mounting with Included Brackets

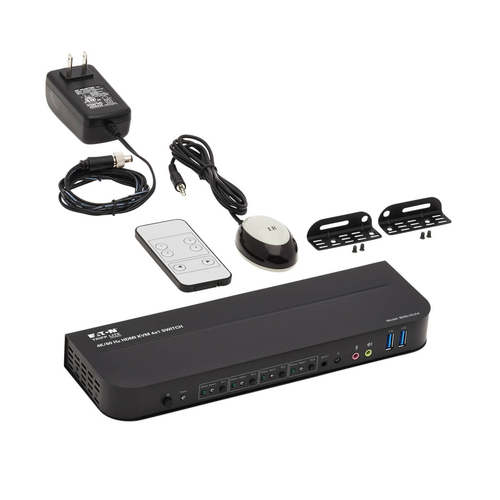

The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source. The plug-and-play B005-HUA4 requires no drivers, so you can connect and use it immediately. It works with all major operating systems, including Windows, macOS and Linux.

ON ORDER

SKU: B005-HUA4

Manufacturer: Eaton Eaton

RRP Price €174.29

Specifications

Ports & interfaces

Number of computers controlled

Keyboard port type

USB

Mouse port type

USB

Video port type

HDMI

HDMI ports quantity

HDMI version

2.0

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

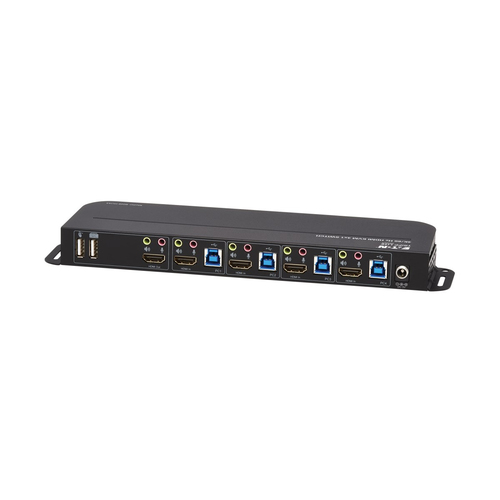

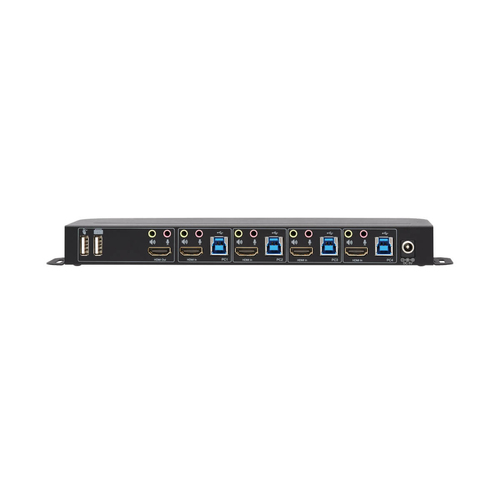

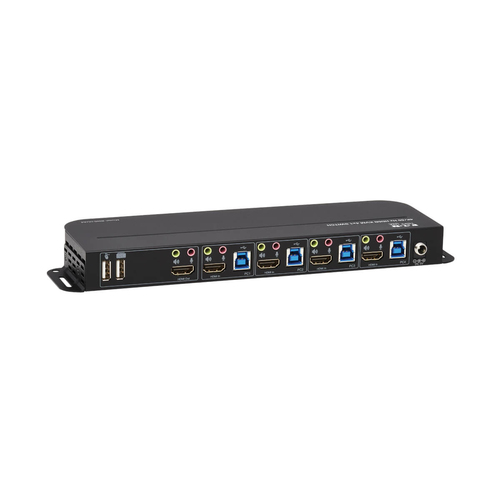

Console ports

3.5mm headphone, 3.5mm mic, HDMI, USB A

Console USB ports quantity

USB hub

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

Audio connections

Yes

Headphone outputs

Number of microphone inputs

DC-in jack

Yes

Performance

HD type

4K Ultra HD

Maximum resolution

4096 x 2160 pixels

Video bandwidth

60 Hz

Data transfer rate (max)

5 Gbit/s

Auto scan delay (min)

5 s

Auto scan delay (max)

999 s

HDCP

Yes

Plug and Play

Yes

Number of users

1 user(s)

Audio channels

7.1

Number of displays supported

Design

Rack mounting

Product colour

Black

Housing material

Metal

LED indicators

Yes

Push button

Yes

Hot keys

Yes

Certification

CE, FCC, REACH

Display

Built-in display

Power

Power source

Input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Output voltage

5 V

Output current

3 A

Power consumption (typical)

12.15 W

External power adapter

Yes

Compatible power plug types

AU, EU, UK, US

Sustainability

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 80 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

243.1 mm

Depth

74.9 mm

Height

25.9 mm

Weight

500 g

Packaging data

Package width

279.9 mm

Package depth

200.4 mm

Package height

65 mm

Package weight

700 g

Package type

Box

Packaging content

Manual

Yes

AC adapter included

Yes

Logistics data

Harmonized System (HS) code

85176200

Master (outer) case width

340.1 mm

Master (outer) case length

300 mm

Master (outer) case height

199.9 mm

Master (outer) case gross weight

4.2 kg

Products per master (outer) case

5 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332254907

Country of origin

Vietnam

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.5 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
