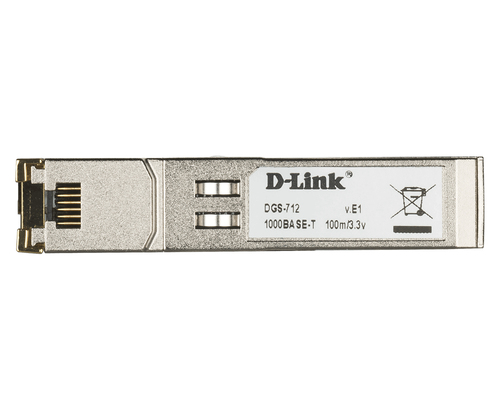

D-Link SFP 10/100/1000 BASE-T Copper Transceiver

Gigabit Ethernet connectivity for data centers, enterprise wiring closets, and service provider transport applications
The D-Link DGS-712 1000Base-T Copper SFP Transceiver Module is a hot-swappable SFP (Small Form-Factor Pluggable) transceiver that plugs into standard SFP slots on switches and supports Gigabit Ethernet. The DGS-712 offers a wide variety of Gigabit Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications. The DGS-712 is an external transceiver designed for insertion into SFP slots of network devices for transmission and reception of data signals from fiber ports. These transceivers provide Gigabit operation and physical compactness to deliver the speed, reliable data transfer, and deployment flexibility that today’s networks require.

ON ORDER

SKU: DGS-712

Manufacturer: D-Link D-Link

RRP Price €58.16

Specifications

Performance

SFP transceiver type
Copper
Maximum data transfer rate
1000 Mbit/s
Interface type
SFP
SFP transceiver standard
T, TX
Maximum transfer distance
100 m
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology
10BASE, 100BASE, 1000BASE

Features

Product colour
Metallic
Mean time between failures (MTBF)
5617000 h

Power

Maximum voltage
3.3 V

Certificates

Safety
CSA, TUV
Certification
FCC Class A CE Class A VCCI Class A

Operational conditions

Operating temperature (T-T)
0 - 85 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
13.7 mm
Depth
70.2 mm
Height
13.4 mm
Weight
20 g

Packaging data

Package width
74 mm
Package depth
131 mm
Package height
49 mm
Package weight
64 g

Logistics data

Shipping (inner) case length
36 cm
Shipping (inner) case width
26 cm
Shipping (inner) case height
31 cm
Shipping (inner) case net weight
3.2 kg
Products per shipping (inner) case
50 pc(s)
Pallet gross weight (air)
246.8 kg
Master (outer) cases per pallet (air)
54 pc(s)
Products per pallet (air)
2700 pc(s)
Pallet gross length
102 cm
Pallet gross width
122 cm
Pallet height (air)
199 cm
Pallet gross weight (sea)
246.8 kg
Master (outer) cases per pallet (sea)
54 pc(s)
Products per pallet (sea)
2700 pc(s)
Pallet height (sea)
199 cm
Shipping (inner) case gross weight
4.2 kg
Harmonized System (HS) code
85176990
