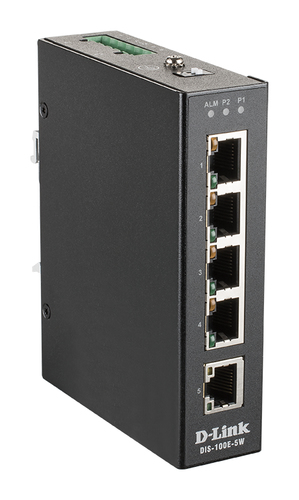

D-Link 5-Port Unmanaged Industrial Switch with 5 x 10/100 BaseT(X) ports

Unmanaged Plug and Play
Plug in and go. The DIS-100E-5W reliably forwards Ethernet frames.

Fast Ethernet Connectivity
Designed with 5 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout.

Officially Certified
Certifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

ON ORDER

SKU: DIS-100E-5W

Manufacturer: D-Link D-Link

RRP Price €192.70

Specifications

Management features

Switch type
Unmanaged
Switch layer
L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Relay outputs
1

Network

Networking standards
IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T
Full duplex
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes

Data transmission

MAC address table
1000 entries
Store-and-forward
Yes

Design

Rack mounting
Yes
Stackable
Yes
Product colour
Black
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Plug and Play
Yes
Mean time between failures (MTBF)
219000 h

Power

DC input voltage
12 - 58 V
Power consumption (typical)
0.95 W
Power consumption (max)
1.56 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
29.1 mm
Depth
89.4 mm
Height
109.2 mm
Weight
320 g

Packaging data

Package width
140 mm
Package depth
178 mm
Package height
83 mm
Package weight
488 g

Technical details

Shipping (inner) case height
20 cm
Shipping (inner) case width
30.5 cm
Shipping (inner) case length
43 cm
Shipping (inner) case net weight
5.78 kg
Products per shipping (inner) case
10 pc(s)
Pallet gross weight (air)
226.4 kg
Master (outer) cases per pallet (air)
36 pc(s)
Products per pallet (air)
360 pc(s)
Pallet gross length
120 cm
Pallet gross width
110 cm
Pallet height (air)
135 cm
Pallet gross weight (sea)
330.7 kg
Master (outer) cases per pallet (sea)
54 pc(s)
Products per pallet (sea)
540 pc(s)
Pallet height (sea)
195 cm
Shipping (inner) case gross weight
5.79 kg

Certificates

Certification
UL 60950‑1 CE FCC

Logistics data

Harmonized System (HS) code
85176990
