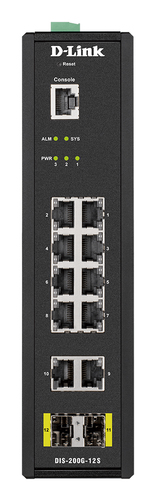

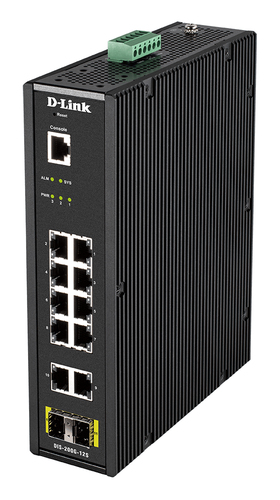

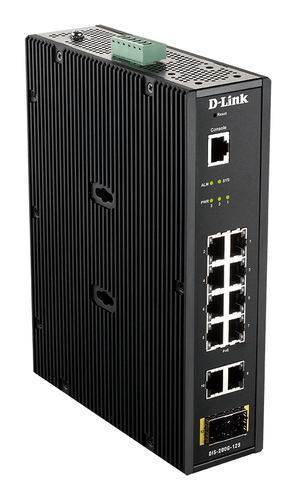

D-Link 12-Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) & 2 x SFP

Smart Management
Featuring management interfaces, including an industry-standard CLI, and Web-based UI, the DIS-200G Serie is easy to manage and provides the controls to help protect and shape your network.

Gigabit Connectivity with SFP ports
Designed with 10 x 10/100/1000BaseT ports and 2 x SFP ports to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, electromagnetic, and high-capacity 6 kV surge protection on all copper ports to maximise network uptime in harsh deployment environments.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +65°C.

High Redundancy and Reliability
ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged.

Enhanced IP Surveillance
Supports Auto-Surveillance VLAN (ASV), automatically detecting surveillance devices and putting them into a dedicated surveillance VLAN, increasing security of surveillance data, and giving the traffic a higher priority.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Fast Deployment

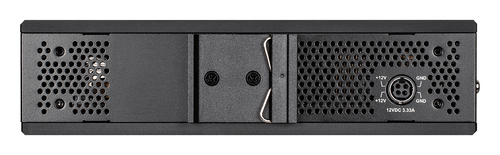

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 48 x 210 x 171.2 mm.

ON ORDER

SKU: DIS-200G-12S

Manufacturer: D-Link D-Link

RRP Price €803.49

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
10
SFP module slots quantity
2
Console port
RJ-45

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
Active link detection
Yes
VLAN support
Yes
Virtual LAN features
Voice VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs
4094

Optical fiber

Fiber ethernet cabling technology
1000BASE-X

Data transmission

Switching capacity
24 Gbit/s
Forwarding rate
17.85 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9216

Security

DHCP features
DHCP client
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SSL/TLS
Authentication
Port-based authentication
Authentication type
RADIUS
Queue scheduling algorithms
SPQ, Weighted Round Robin (WRR)

Multicast features

Multicast support
Yes

Protocols

Management protocols
SNMP v1/v2c/v3, SNTP, Telnet

Design

Rack mounting
Yes
Product colour
Black
Housing material
Metal
LED indicators
Yes
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes
Number of fans
0 fan(s)
Electromagnetic compatibility
CISPR 22, FCC Part 15B Class A

Performance

Mean time between failures (MTBF)
276773 h

Power

DC input voltage
12 - 48 V
Power consumption (max)
10.26 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-40 - 65 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
35.01 BTU/h

Weight & dimensions

Width
171.2 mm
Depth
53 mm
Height
210 mm
Weight
1.63 kg

Certificates

Certification
CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Logistics data

Harmonized System (HS) code
85176990
