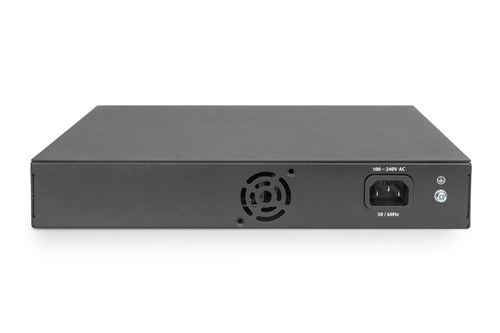

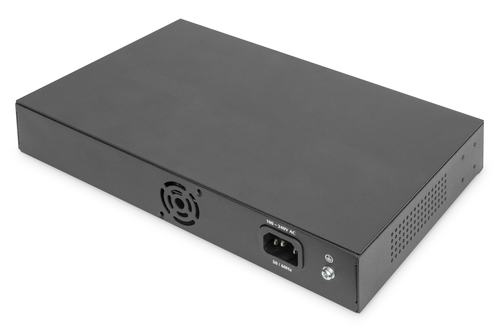

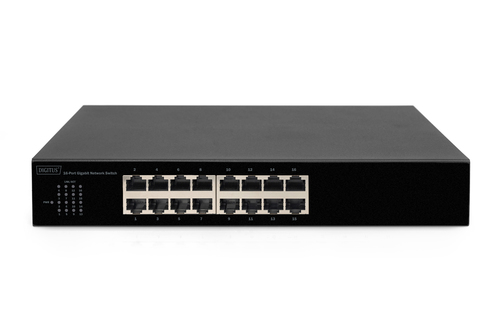

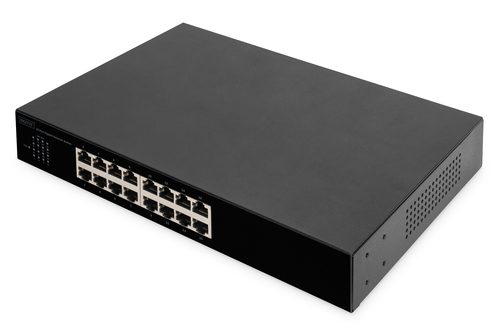

Digitus 16-Port Gigabit Switch

This Switch is easy to install and does not require configuration, It is easy to manage and maintain which can meet a lot of network environments.

- Support IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3az
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation;
- Panel lights to monitor working state and help fault analysis;
- Operation Temperature: 0°C ~ 40 °C;
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az) ;

DN-80112-1 Product have 16*10/100/1000Mbps RJ45 port,
Using store and forward technology, combined with dynamic memory
allocation, to ensure the effective allocation of bandwidth to each
port. This switch is easy to install and does not require configuration,
It is easy to manage and maintain which can meet a lot of networking
environment, such as Business building, Community, Hotel, Office etc.

ON ORDER

SKU: DN-80112-1

Manufacturer: Digitus Digitus

RRP Price €112.17

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Power connector
AC-in jack

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
No

Data transmission

Switching capacity
32 Gbit/s
Forwarding rate
23.8 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
4.1 MB

Design

Stackable
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
Vandal-proof
No
Suitable for outdoor use
No

Performance

Fanless
Yes

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%

Weight & dimensions

Width
180 mm
Depth
280 mm
Height
44 mm

Packaging content

Cables included
AC
Quick start guide
Yes

Packaging data

Package width
370 mm
Package depth
230 mm
Package height
80 mm
Package volume
6808 cm³
Package weight
1.6 kg

Logistics data

UK Trade Tariff code
85176200
Country of origin
China

Accessories

License
