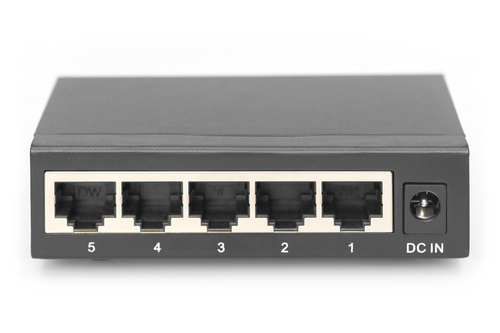

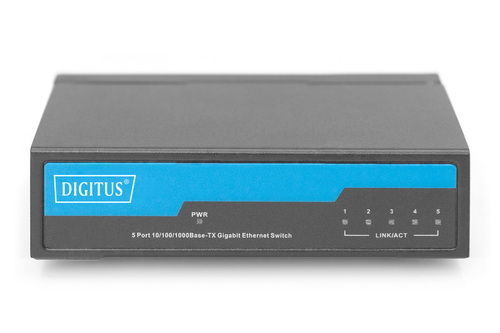

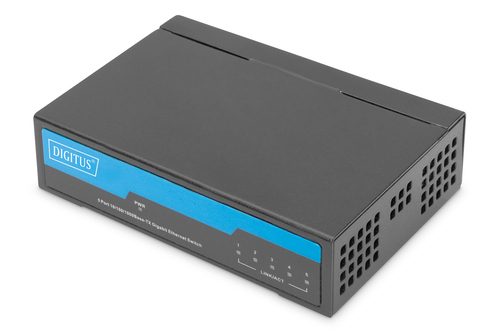

Digitus 5 Port Gigabit Switch, Unmanaged

Fast and easy expansion of your network - Plug and Play

- Expands your network by 4 additional ports
- Auto-MDI/MDIX & Auto-negotiation
- Energy-Efficient Ethernet (EEE) IEEE802.3az
- Full-duplex flow control IEEE802.3x
- Fanless design without noise
- Sturdy metal housing
- Plug and Play - no configuration or software required
- Suitable for use on the desktop
- Ideal for home and small offices

The 5-Port Gigabit Switch from DIGITUS® is perfectly suited for the easy expansion of your network. Thanks to its fanless design, the switch operates completely noise-free and does not require configuration. Each port can be used as a LAN or uplink port, the cable and network speed are detected automatically. The switch also supports the energy saving features IEEE802.3az & Full-Duplex Flow Control IEE802.3x. Real Plug and Play – Just plug in the network cable and get started.

2 IN STOCK

SKU: DN-80202-1

Manufacturer: Digitus Digitus

RRP Price €24.64

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
5

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
No
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
No

Data transmission

Switching capacity
10 Gbit/s
Throughput
7.44 Mpps
MAC address table
2000 entries
Store-and-forward
Yes

Design

Rack mounting
No
Stackable
No
Product colour
Black
LED indicators
Activity, Link, Power

Performance

Plug and Play
Yes
Fanless
Yes

Power

Power source
DC
Power supply included
No
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
DC input voltage
5 V
Input current
1 A
Power consumption (max)
3 W
Power plug type
Type C

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
69 mm
Depth
92 mm
Height
25 mm
Weight
180 g

Packaging content

Quick start guide
Yes

Packaging data

AC adapter included
Yes

Accessories

License
