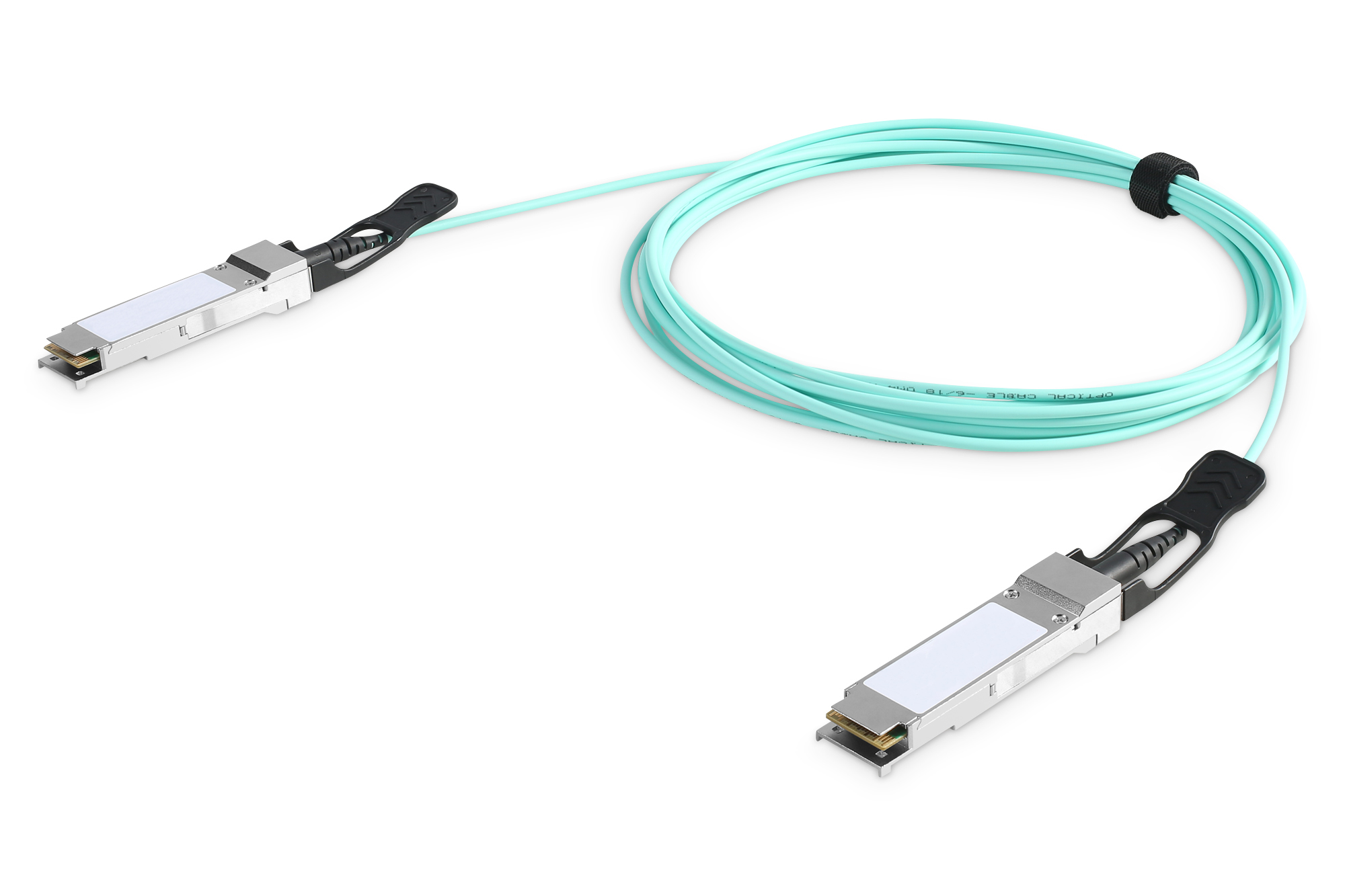

Digitus QSFP+ 40G 10 m AOC cable

High bandwidth without delays or signal loss

- QSFP+ 40G 10 m AOC cable
- 2.125-41.2 Gbps supported data rate
- Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL

Active DIGITUS® 40G QSFP+ AOC cables are a high-performance, energy-saving, short-range connectivity solution that supports InfiniBand QDR/DDR/SDR,12.5G/10G/8G/8G/4G/4G/2G fibre channels, PCIe and SAS. They are compliant with the QSFP MSA and IEEE P802.3ba. Four full-duplex channels are used, with each channel capable of transferring data at rates of up to 11.3 Gbps, thus ensuring an aggregated rate of 45.2 Gbps. Active DIGITUS® 40G QSFP+ AOC cables provide increased port density and cost savings in the overall system.

ON ORDER

SKU: DN-81313

Manufacturer: Digitus Digitus

RRP Price €220.16

Specifications

Features

Cable length
10 m
InfiniBand protocol
Yes
Connector 1
QSFP+
Connector 2
QSFP+
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Aqua colour
Full duplex
Yes
Fiber mode structure
Multi-mode
Wavelengths supported
850 nm
Ethernet interface type
40 Gigabit Ethernet
Data transfer rate
41.2 Gbit/s

Operational conditions

Operating temperature (T-T)
0 - 70 °C

Packaging data

Package width
260 mm
Package depth
260 mm
Package volume
1352 cm³
Package weight
100 g

Packaging content

Quantity per pack
1 pc(s)

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
Harmonized System (HS) code
85447000
