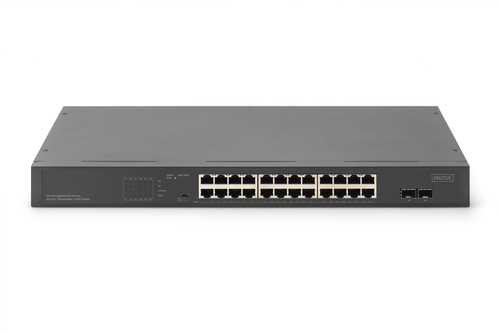

Digitus 24-Port Gigabit Netzwerkswitch, 19 Zoll, unmanaged,2 Uplink Ports, SFP

Wire-speed forwarding, intelligent identification, PoE output power of a single port supports up to 30W each, total PoE budget: 370W

- Support IEEE802.3af/at Standard
- Single port output power up to 30W
- Automatic detection and identification of standard PoE power receiving devices, intelligent power supply, will not burn non-standard PoE power receiving devices or common devices
- Support port power supply prioritization, guarantee the continuous power supply of key nodes
- Panel indicators monitor working status and help fault analysis
- Support VLAN and CCTV function
- Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
- Support Energy-Efficient Ethernet (EEE) function (IEEE802.3az)

The DN-95348-2 PoE switch offers an outstanding solution for the efficient power supply of network components that support the IEEE802.3af/at standard. With an impressive single port output power of up to 30W, it enables the reliable supply of PoE-enabled devices. The automatic detection and identification of standard PoE receiving devices makes the power supply intelligent and prevents potential damage from non-standard or conventional devices. By prioritising the port power supply, the module ensures the module ensures a continuous power supply for critical network nodes. The panel indicators allow convenient monitoring of the working status and assist in fault analysis. The module also supports VLAN and CCTV functions to maximise flexibility in network applications. With flow control for full-duplex operation and back pressure for half-duplex operation, the module optimises data transmission efficiency. Overall, the DN-95348-2 PoE switch offers a powerful, intelligent and reliable solution for powering network components that meets today's requirements for modern network infrastructures.

1 IN STOCK

SKU: DN-95348-2

Manufacturer: Digitus Digitus

RRP Price €375.55

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
SFP module slots quantity
2
Uplink ports quantity
2
Power connector
AC-in jack

Network

Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
10G support
No
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
VLAN support
Yes

Data transmission

Switching capacity
52 Gbit/s
Forwarding rate
38.69 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
4.1 MB

Design

Rack mounting
Yes
Stackable
No
Form factor
1U
Product colour
Grey
Housing material
Metal
LED indicators
Yes
Number of fans
2 fan(s)

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
400 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) voltage
55 V
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
370 W

Other features

Ethernet interface type
Gigabit Ethernet

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%

Weight & dimensions

Width
440 mm
Depth
207 mm
Height
44 mm

Packaging content

Cables included
AC
Quick start guide
Yes

Packaging data

Package width
320 mm
Package depth
500 mm
Package height
75 mm
Package weight
3.57 kg

Logistics data

Country of origin
China

Accessories

License
