Digitus 24-Port Gigabit PoE Networkswitch,19 Zoll, L2 managed,2 Uplink Ports, SFP, 430 W, af/at

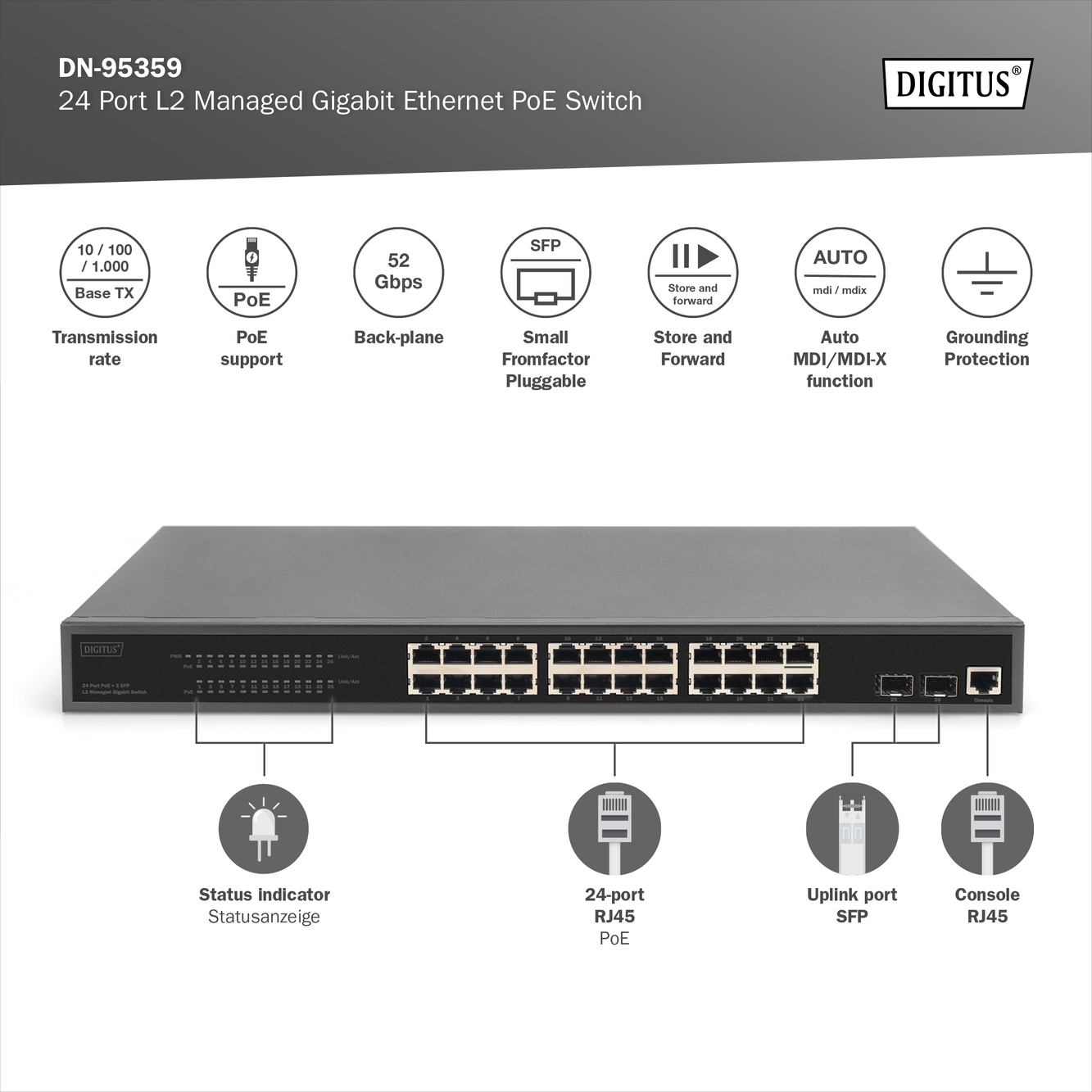

The DN-95359 is a case-shaped device with a chassis of 1U high. It provides 24 10/100/1000Base-TX ports + 2 gigabit SFP ports. It provides 24 Port PoE Injector.

- Provides 24 10/100/1000 Base-TX ports + 2 gigabit SFP ports, Provides 24 PoE injector
- Build-in power supplies, 330W, High back-plane bandwidth 52Gbps
- Support ICMPv6, IPv6 Neighbor Discovery,MLD Snooping, IPv6 Telnet, standard IP/ Extend IP / MAC IP / ARP ACL, IGMP snooping for Multi-media application
- Support Port mirror and bandwidth control,IEEE802.3x Flow control
- Support Port Based VLAN / 802.1Q Tag VLAN, IEEE802.3ad Port trunk with LACP
- Support Spanning tree protocol IEEE802.1d/802.1w/802.1s
- Support IEEE 802.1p class of service, IEEE 802.1x user authentication
- Support Broadcast storm filter, System event log, command line interface management
- Management by Web / SNMP / SSH / Telnet (IPv6 ready) / Console

The DN-95359 is a manageable 24 +2 port PoE switch with L2 features. It is mainly used in the structural LAN area. With a total PoE power budget of 330 watts, the DN-95359 supplies up to 24 connected PoE devices such as IP security cameras or VoIP telephones with up to 30 watts per port. Due to the large backplane bandwidth of 52 Gbps, data can be processed and forwarded quickly. Furthermore, features such as ICMPv6, IGMP & MLD snooping, port mirroring, broadcast storm filter and many more are supported.

ON ORDER

SKU: DN-95359

Manufacturer: Digitus Digitus

RRP Price €464.25

Specifications

Management features

Switch type
Managed
Switch layer
L2
System event log
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
26
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Installed SFP modules quantity
2
Fiber optic connector
SFP

Network

Networking standards
IEEE 802.3at
10G support
No
Port mirroring
Yes
Flow control support
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
Yes
Virtual LAN features
Port-based VLAN, Tagged VLAN
Number of VLANs
4094

Data transmission

Switching capacity
52 Gbit/s
Forwarding rate
38.7 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Number of queues
8
Jumbo frames support
Yes
Jumbo frames
16000
Packet buffer memory
4.1 MB

Security

Access Control List (ACL)
Yes
IGMP snooping
Yes

Multicast features

Multicast Listener Discovery (MLD) snooping
Y

Protocols

IPv4 & IPv6 features
IPv6 Telnet

Design

Rack mounting
Yes
Stackable
No
Form factor
1U
Product colour
Black
Housing material
Metal
LED indicators
Yes

Performance

Flash memory
128 MB

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Output power
24 W
Power consumption (max)
330 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
330 W

Other features

Bandwidth
52 Gbit/s
Ethernet interface type
Gigabit Ethernet

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
440 mm
Depth
200 mm
Height
44 mm

Packaging content

Cables included
AC
Manual
Yes
Rack mount kit
Yes

Packaging data

Package width
280 mm
Package depth
102 mm
Package height
505 mm
Package volume
14422.8 cm³
Package weight
4.24 kg

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
