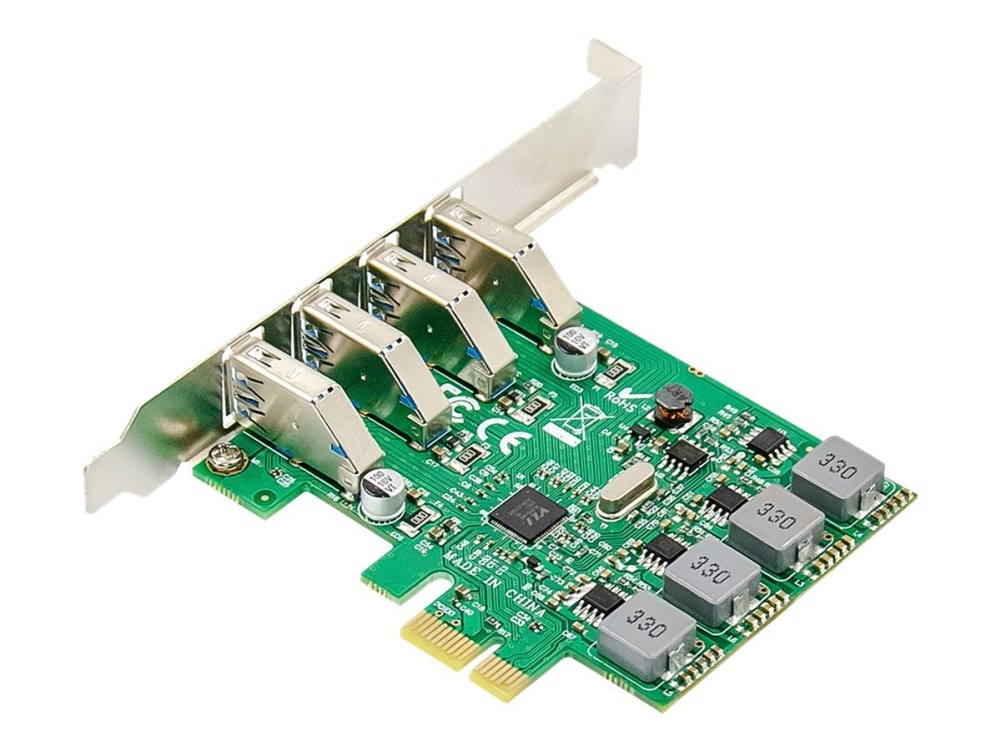

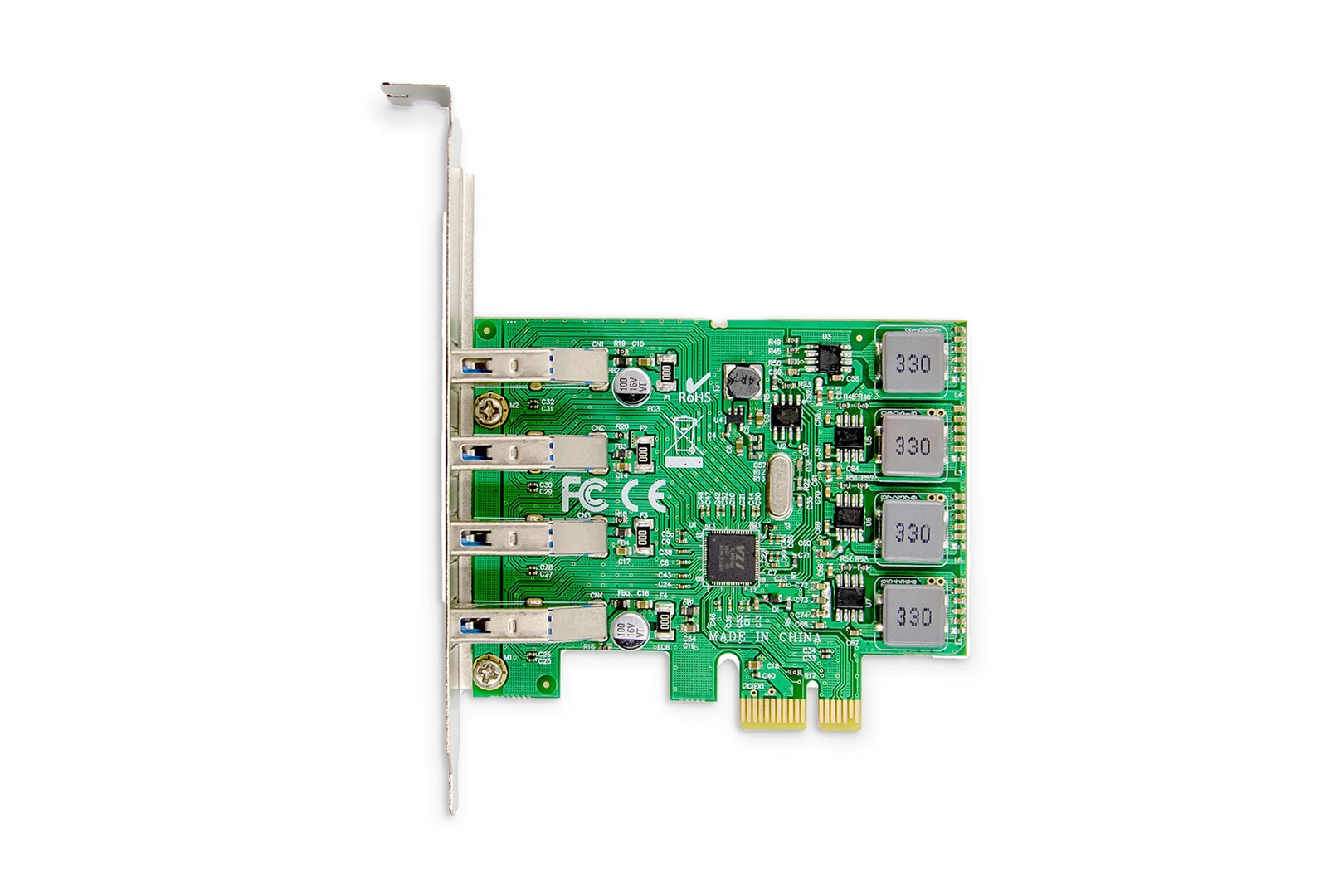

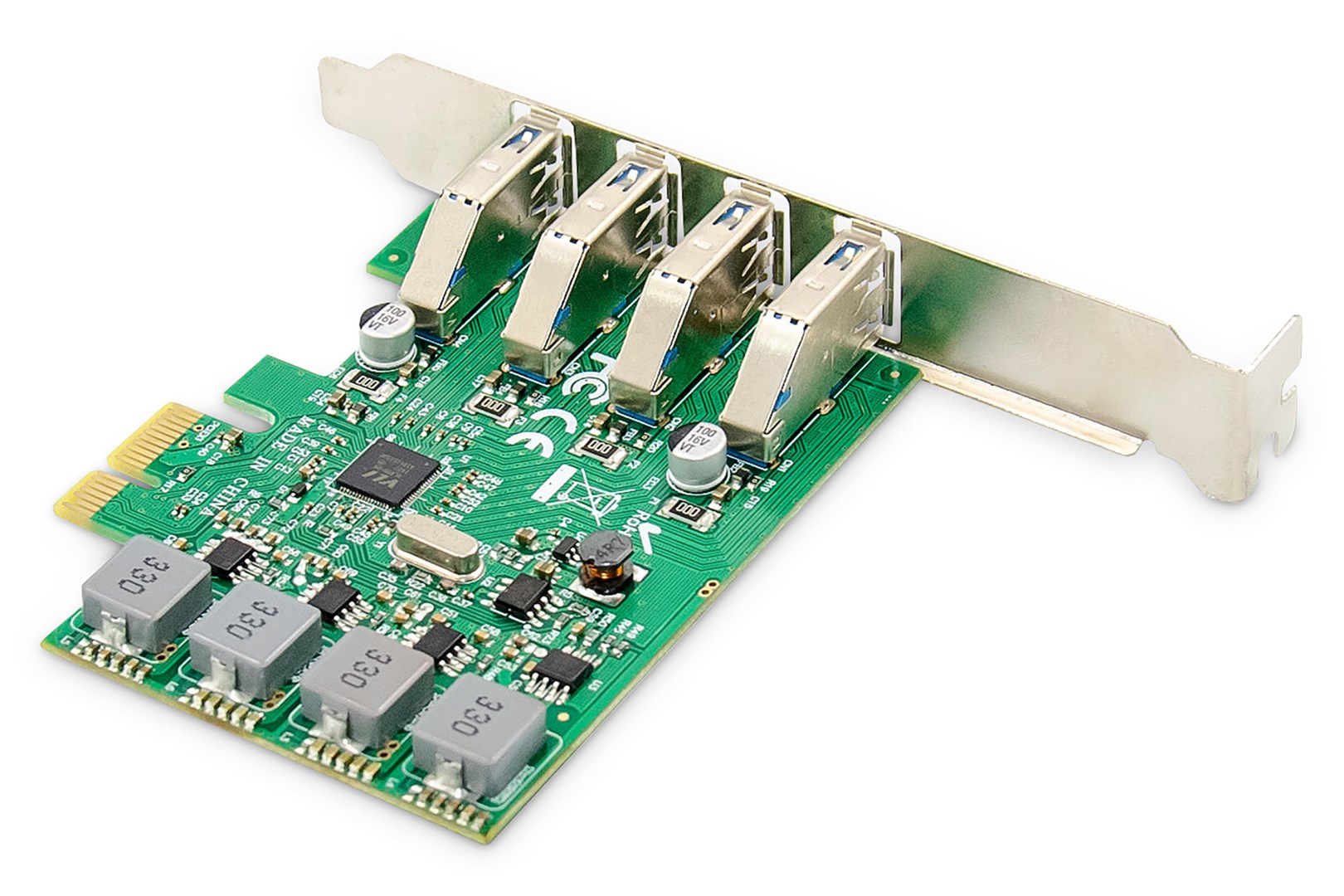

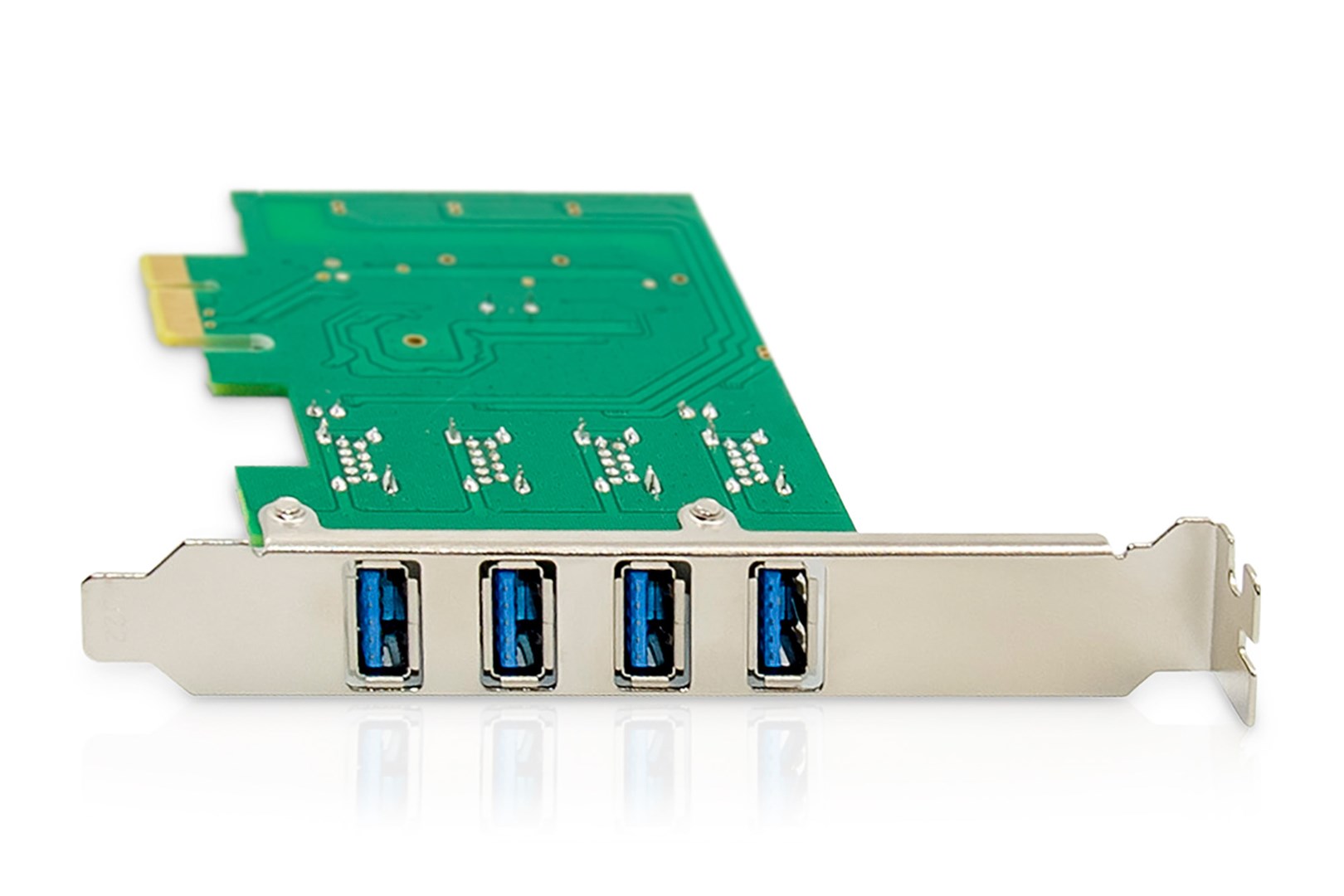

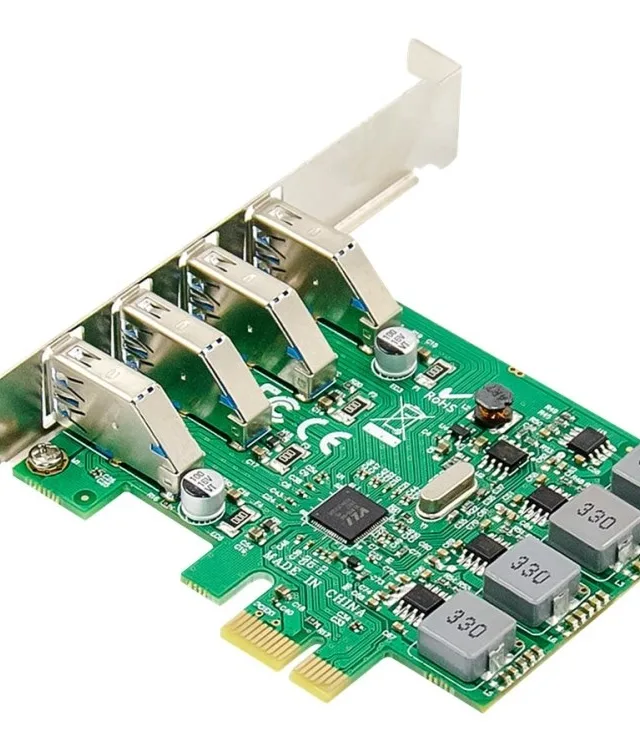

Digitus 4-Port USB 3.0 PCI Express Add-On Card

Extend your PC with PCIe slots by 4 full USB 3.0 ports (USB A) with up to 3000 mA

- Data transfer in SuperSpeed with up to 5 Gbps, backwards compatible
- Power supply: 5 V / 3000 mA per port max.
- Chipset: VIA / VL805
- Supports USB legacy function
- USB Attached SCSI Protocol (USAP) Mode
- Plug and Play - no driver installation required
- No external power adapter required
- Supports hot plugging
- Low-profile slot bracket

This full USB 3.0 host controller extends your PC with PCI slots by four USB 3.0 connections. Power supply is provided via the PCI express slot and supplies a maximum power output of 3,000 mA for each USB port. Use bus speeds of up to 5 Gbps with USB SuperSpeed, backwards compatible for older USB devices with Hi-Speed, Full Speed & Low Speed. Connect USB devices such as printers, scanners, cameras or an external hard drive. Supports hot plugging & Plug and Play - no driver installation required. Enjoy the fastest SuperSpeed data transfers with the DIGITUS® USB 3.0 PCIe card and copy large quantities of data in a very short time.

2 IN STOCK

SKU: DS-30226

Manufacturer: Digitus Digitus

RRP Price €25.81

Specifications

Ports & interfaces

Host interface
PCIe
Output interface
USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor
Full-height / Low-profile
Expansion card standard
PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

Design

Internal
Yes
Product colour
Green
Hot-Plug support
Yes
Country of origin
China

Features

Built-in processor
Yes
Processor manufacturer
VIA Technologies
Processor model
VL805
Data transfer rate (max)
5 Gbit/s
Plug and Play
Yes

Power

Output voltage
5 V
Output current
3 A

System requirements

Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1
Linux operating systems supported
Yes

Weight & dimensions

Width
140 mm
Depth
130 mm
Height
30 mm
Weight
110 g

Packaging data

Quantity
1

Logistics data

Harmonized System (HS) code
84733020

Accessories

License
