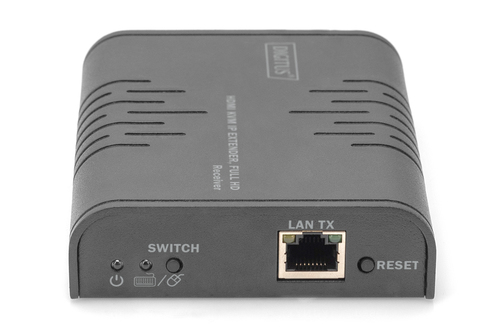

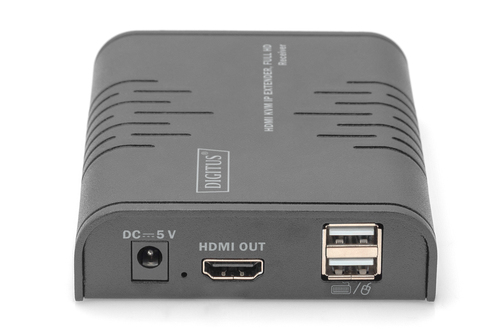

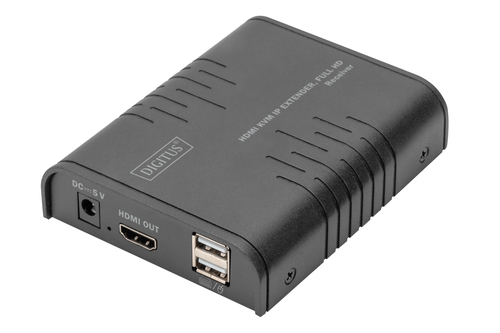

Digitus HDMI KVM IP Extender Receiver, Full HD

Expand the HDMI KVM IP Extender Set (DS-55529) with additional receiver units to reproduce your AV content on multiple screens (up to 253) at the same time.

- DS-55529 can be extended on up to 253 screens (receivers)
- KVM function for connection of mouse/keyboard to control the signal source on the output screen
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 5e (or higher) network cable
- Easy installation thanks to Plug & Play - no additional software/drivers etc. required
- HDMI 1.3
- HDCP 1.4

Expand the HDMI KVM IP Extender Set (DS-55529) with additional receiver units to reproduce your AV content on multiple monitors at the same time. The set extends Full HD AV signals using a CAT5e (or higher) network cable (point-to-point connection) up to 120 m. In addition, using network switches and the individual receiver units (DS-55530), you can distribute your video content over up to 253 displays via the already existing network (IP connection) and extend them over an unlimited distance. Thanks to KVM functionality, a mouse/keyboard can be connected to the receiver, making it possible to control the signal source on the output screen.

49 IN STOCK

SKU: DS-55530

Manufacturer: Digitus Digitus

RRP Price €103.40

Specifications

Features

Type
Receiver
Connectivity technology
Wired
Maximum transfer distance
120 m
Cable types supported
Cat5e
Maximum digital resolution
1920 x 1080 pixels
Supported resolutions
1920x1080 60Hz
Product colour
Black
Material
Metal
Easy to install
Yes
Plug and Play
Yes
LED indicators
Yes

Receiver

Receiver local video port type
HDMI
Receiver local keyboard/mouse port type
USB
RJ-45 ports quantity (receiver)
1

Ports & interfaces

USB port type
USB Type-A
USB 2.0 ports quantity
2
HDMI version
1.3
USB data transfer rates
480 Mbit/s
RJ-45 ports quantity
1

Power

Input current
1 A
Power consumption (receiver) (max)
3.5 W
DC-in jack
Yes
DC voltage
5 V

Weight & dimensions

Receiver width
9 cm
Receiver depth
11 cm
Receiver height
2.7 cm
Receiver weight
244 g

Packaging data

Package width
117 mm
Package depth
150 mm
Package height
77 mm
Package weight
350 g

Packaging content

AC adapter included
Yes
Manual
Yes

Operational conditions

Operating temperature (T-T)
-10 - 60 °C

Technical details

Package volume
1351.35 cm³

Logistics data

Country of origin
China
UK Trade Tariff code
85176200
