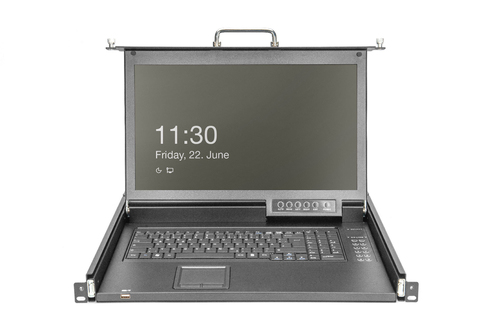

Digitus 17" HD LCD KVM console, 8-port HDMI, Swiss keyboard

Digitus 17" HD LCD KVM console, 8-port HDMI, Swiss keyboard

Name: Digitus 17" HD LCD KVM console, 8-port HDMI, Swiss keyboard
Brand: Digitus
SKU: DS-72220-6CH
Price: 1753.94 EUR
Availability: OutOfStock

Maximum flexibility in managing the server farm

- Resolution: 1920x1080 at 60 Hz
- Contrast ratio: 1000:1
- Supports: 16.7 M colors
- 8-port HDMI KVM switch included
- Mouse touch board with two function buttons
- Space-saving housing (1U), black (RAL 9005)
- Interface: HDMI

Thanks to its modular design, the DIGITUS® 17" HD TFT console offers a wide range of individual configuration options so that it can be adapted to the area of application of the console. This makes the console cost-saving and it can be upgraded or retrofitted with additional modules at any time. The flexible configuration guarantees that the console is highly future-proof. The modular console consists of a 17" monitor, an 8-port HDMI KVM switch and the touchpad.

ON ORDER

SKU: DS-72220-6CH

Manufacturer: Digitus Digitus

RRP Price €1,753.94

Specifications

Display

Display diagonal

43.2 cm (17")

Display resolution

1920 x 1080 pixels

Contrast ratio (typical)

1000:1

Aspect ratio

16:9

Display type

TFT

Display number of colours

16.78 million colours

Technical details

Product colour

Black

Connector type

8 x HDMI

Rack capacity

Ports & interfaces

Video port type

HDMI

USB 2.0 Type-A ports quantity

DC-in jack

Yes

Keyboard

Built-in touchpad

Yes

Keyboard language

Swiss

Keyboard layout

QWERTZ

Weight & dimensions

Width

509 mm

Height

45 mm

Depth

445 mm

Weight

9.12 kg

Mounting depth (min)

80 cm

Mounting depth (max)

120 cm

Packaging data

Package weight

19.1 kg

Package width

755 mm

Package depth

625 mm

Package height

186 mm

Package volume

87768.8 cm³

Packaging content

Mounting brackets included

Yes

Quick installation guide

Yes

AC adapter included

Yes

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

9.12 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
