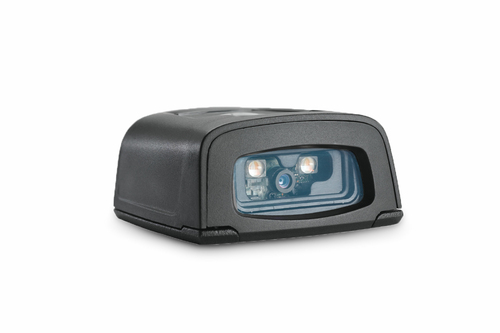

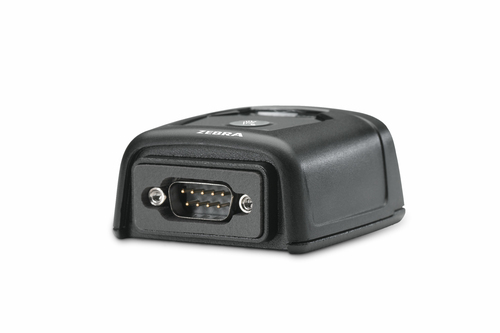

Zebra DS457 Fixed bar code reader 1D/2D Black

DS457 Fixed Mount Scanner Series

Next Generation Fixed Mount Imager
The Zebra DS457 Fixed Mount Scanner Series delivers fast, high-volume hands-free scanning of virtually any barcode—including 1D, 2D, and direct part marks (DPM). No matter what type of barcode is presented, or whether it is printed on paper, etched into a product, or displayed on a mobile phone screen, the DS457 Series provides fast, accurate scanning in a tiny footprint that fits in the most space-constrained areas.

Best-in-Class Performance
Your workers can scan virtually any barcode as fast as they can present items for scanning - including 1D, 2D and direct part marks. There is never a need to pause between scans, protecting productivity and increasing throughput.

Fits in the Smallest of Spaces
The DS457 can be mounted just about anywhere — attached to the register or under the counter for a true zero footprint on the retail cashwrap to a space-constrained manufacturing cell or airport gate.

Flexible and Easy to Integrate
The DS457 can be used as a standalone scanner or integrated into the most space-constrained products to bring world-class scanning performance to self-service kiosks, medical and diagnostic instruments, lottery terminals and more.

ON ORDER

SKU: DS457-SREU20004

Manufacturer: Zebra Zebra

RRP Price €361.99

Specifications

Scanning

Type
Fixed bar code reader
Optical sensor resolution
752 pixels
Scanner type
1D/2D
Optical sensor resolution (W x H)
752 x 480 pixels
Wavelength
655 nm

Ports & interfaces

Connectivity technology
Wired
Standard interfaces
RS-232, USB

Performance

Built-in processor
Yes
Processor frequency
624 MHz
Product colour
Black
Certification
FCC, RoHS

Power

Input voltage
5 V
Power consumption
450 mA

Weight & dimensions

Width
62 mm
Depth
58.4 mm
Height
29.2 mm
Weight
111 g

Packaging data

Cables included
USB, VGA

Operational conditions

Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 70 °C

Logistics data

Harmonized System (HS) code
84716070

Other features

Safety
ETL, VDE, CETL, EN60950, Ctick, VCCI

Accessories
