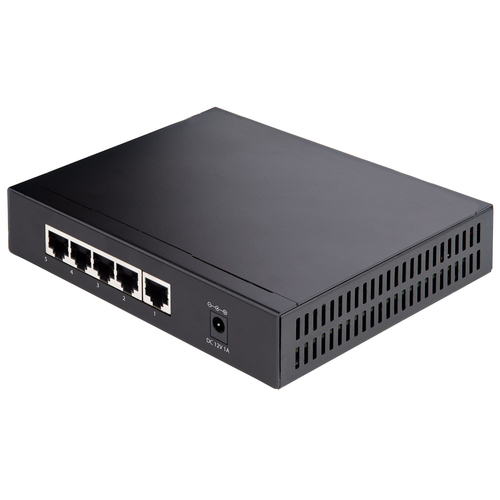

StarTech.com Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount - Multi-Gigabit - Auto-MDIX - 9K Jumbo

2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot

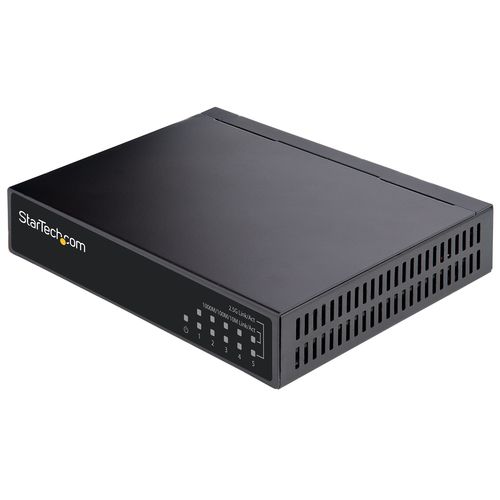

The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.

Enhance your network

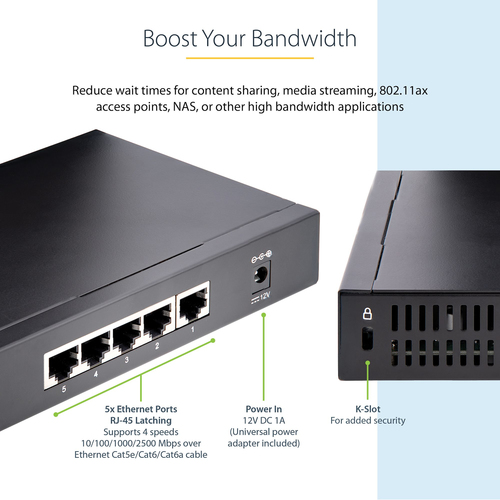

This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.

Secure and versatile

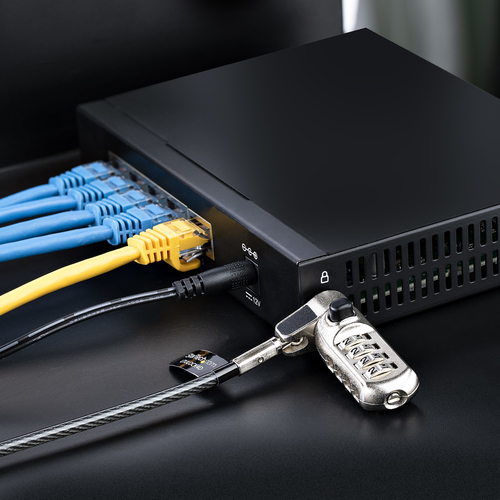

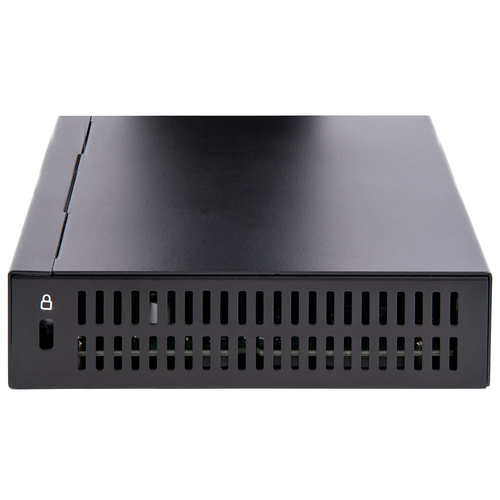

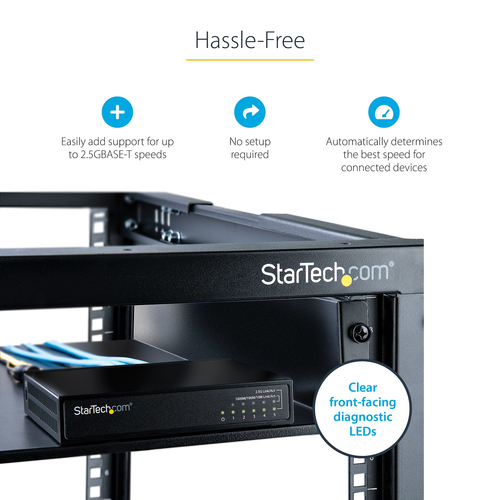

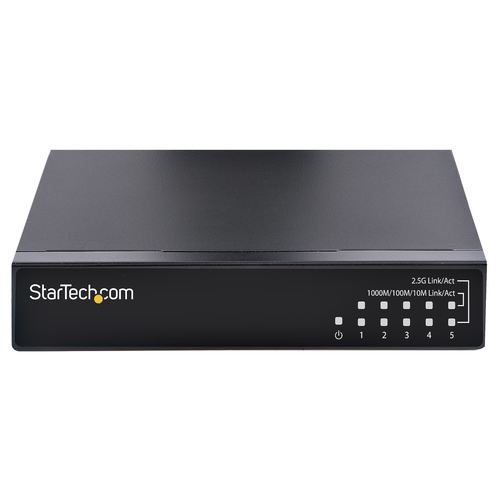

The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.

The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

6 IN STOCK

SKU: DS52000

Manufacturer: StarTech.com StarTech.com

RRP Price €183.41

Specifications

Management features

Switch type
Unmanaged
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity
5
Power connector
DC-in jack

Network

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support
No
Copper ethernet cabling technology
10BASE-T, 1000BASE-TX, 2500BASE-T
Cable types supported
Cat5e, Cat6, Cat6a
Full duplex
Yes
Auto MDI/MDI-X
Yes

Data transmission

Switching capacity
2.5 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Design

Rack mounting
No
Product colour
Black
Housing material
Steel
LED indicators
Yes
Wall mountable
Yes

Performance

Maximum cable length
100 m

Power

Power source
AC/DC
Power supply included
Yes
AC input voltage
100 - 240 V
Input current
0.5 A
Output voltage
12 V
Output current
1 A
Power plug type
Type M

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%

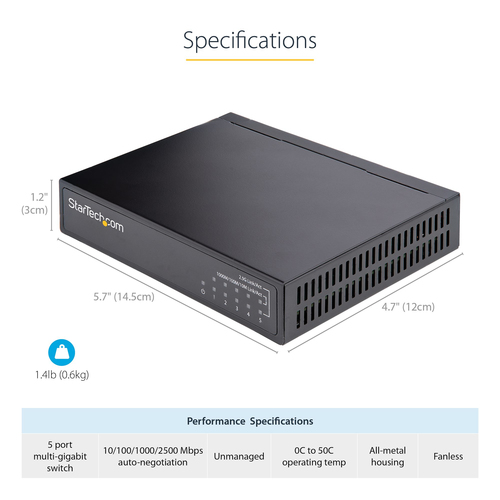

Weight & dimensions

Width
120 mm
Depth
145 mm
Height
30 mm
Weight
600 g

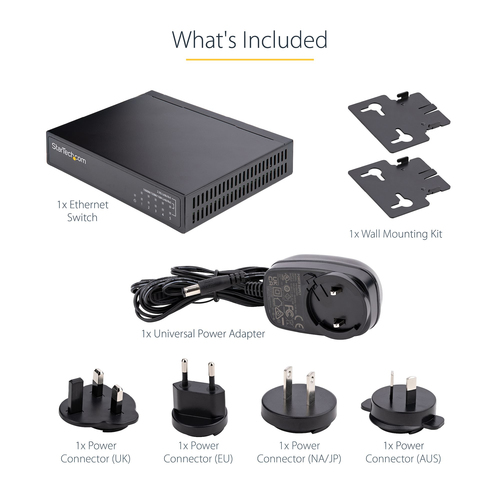

Packaging content

Quick start guide
Yes

Packaging data

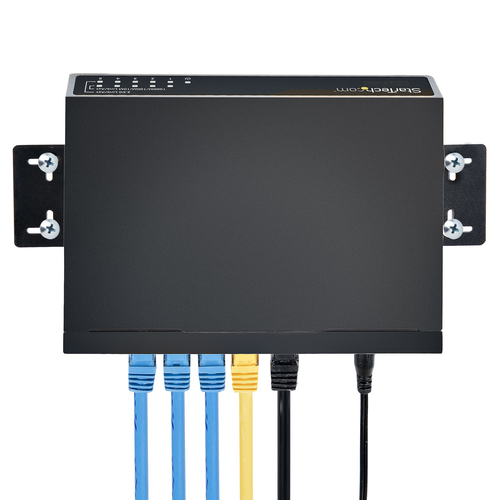

Wall mounting kit
Yes
AC adapter included
Yes
Package width
285 mm
Package depth
135 mm
Package height
70 mm
Package weight
700 g

Certificates

Compliance certificates
CE, RoHS

Logistics data

Master (outer) case width
305 mm
Master (outer) case length
370 mm
Master (outer) case height
290 mm
Harmonized System (HS) code
85176990
Products per master (outer) case
10 pc(s)
