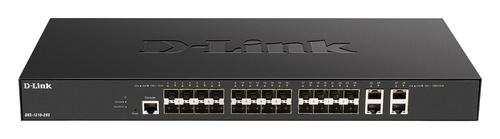

D-Link 24-port 10G SFP+, 4-port 10GBASE-T Smart Managed Switch

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.

ON ORDER

SKU: DXS-1210-28S

Manufacturer: D-Link D-Link

RRP Price €2,398.83

Specifications

Management features

Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity
4
SFP+ module slots quantity
24
Console port
RJ-45

Network

Networking standards
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support
Yes
Cable types supported
Cat6, Cat6a, Cat7
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Number of VLANs
4094

Data transmission

Switching capacity
560 Gbit/s
Throughput
416.64 Mpps
MAC address table
32000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Security

Access Control List (ACL)
Yes
Access Control List (ACL) rules
256
IGMP snooping
Yes

Protocols

Management protocols
SNMP v1/v2c/v3
GARP VLAN Registration Protocol (GVRP)
Yes

Design

Rack mounting
Yes
Stackable
No
Form factor
1U
Product colour
Black
LED indicators
Activity, Link, Speed
Number of fans
2 fan(s)

Power

AC input voltage
100 - 240 V
Power consumption (max)
85.7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
441 mm
Depth
209.5 mm
Height
44 mm
Weight
3.27 kg

Packaging content

Manual
Yes

Certificates

Certification
CE Class A FCC Class A VCCI Class A IC BSMI

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
