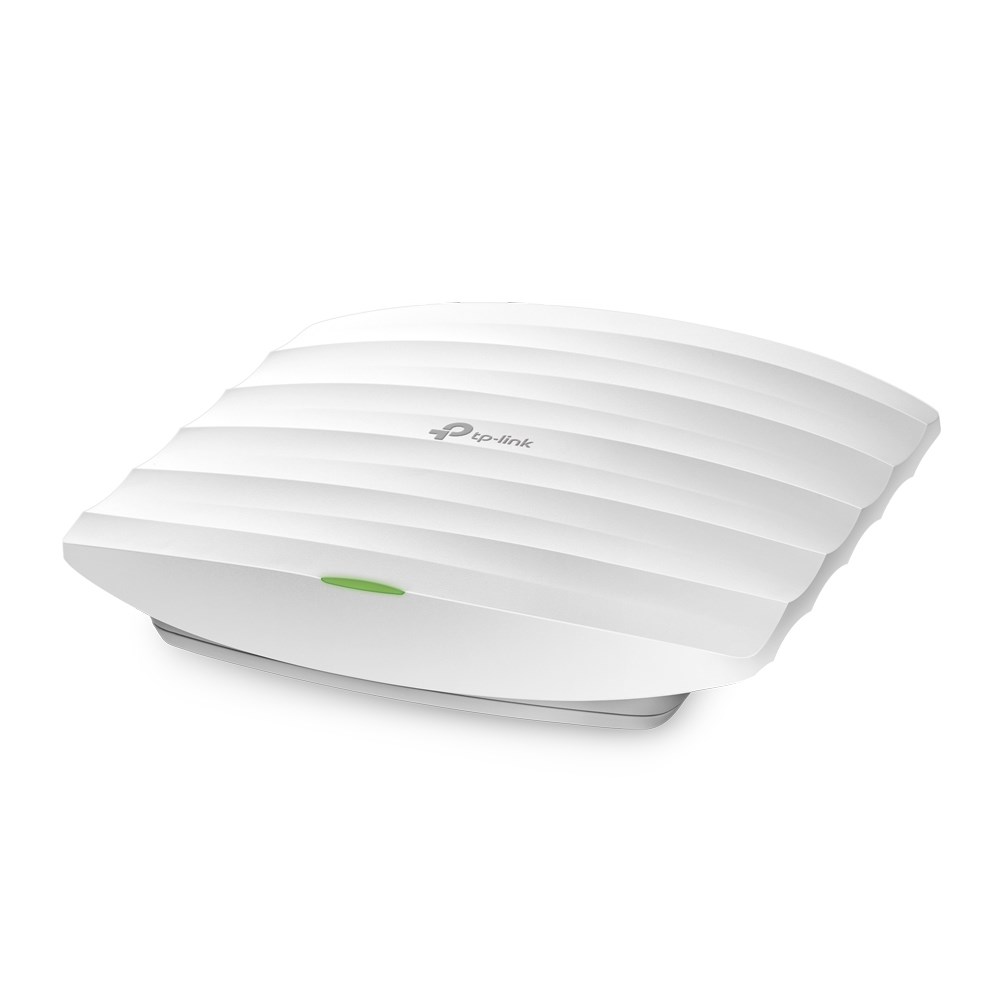

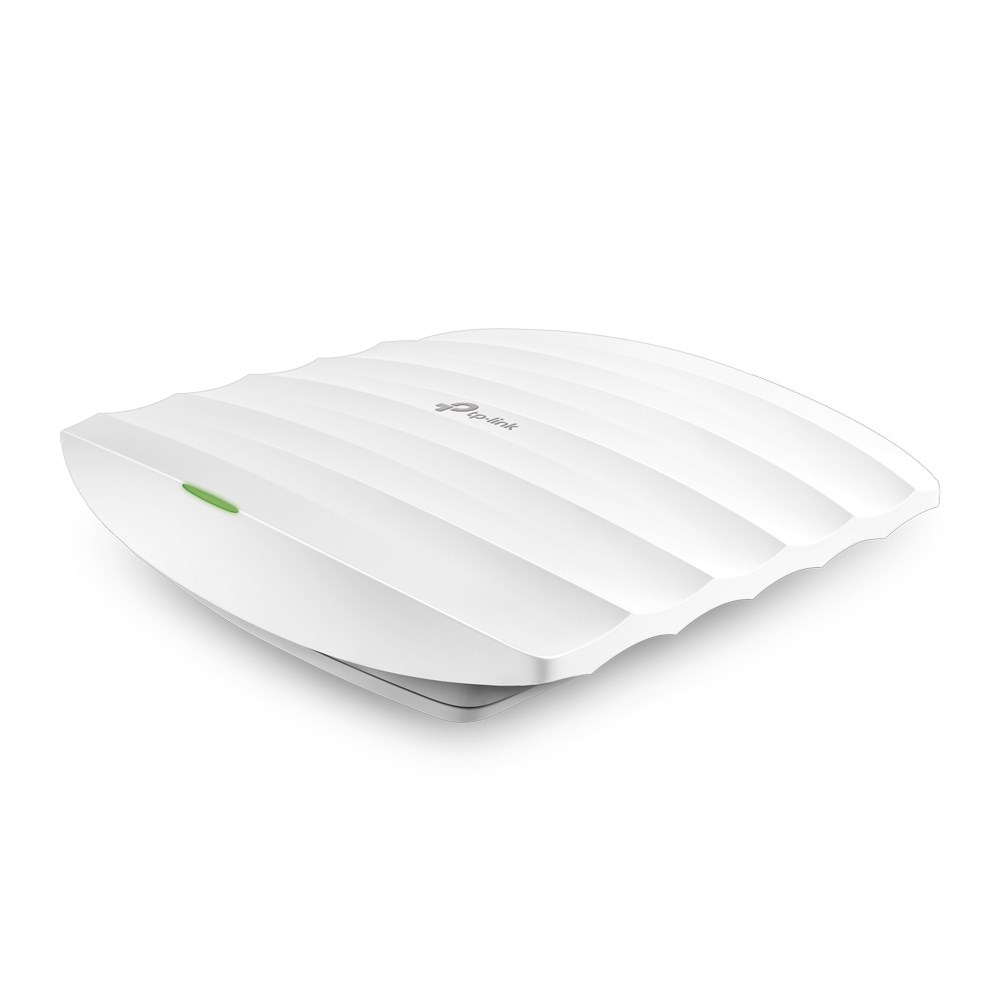

TP-Link EAP115 wireless access point 300 Mbit/s White Power over Ethernet (PoE)

An Affordable, Scalable Business Wi-Fi Solution

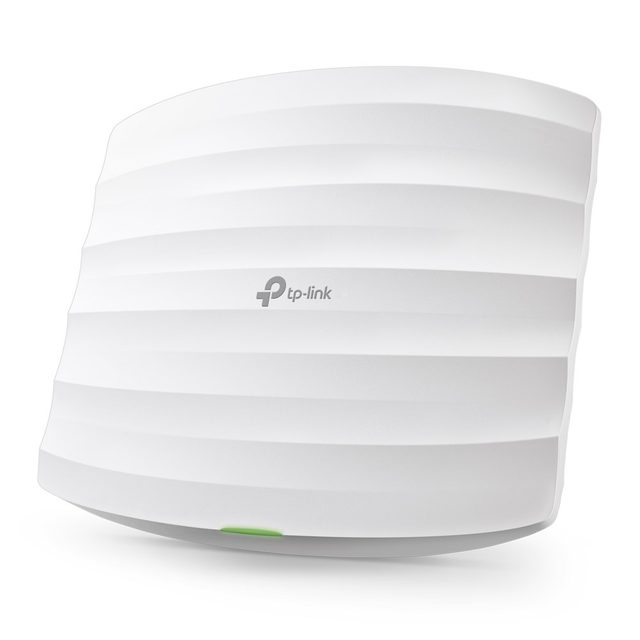

300Mbps Wireless N Ceiling Mount Access Point.

Cloud Centralized Management
- Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Timesaving and Flexible Deployment

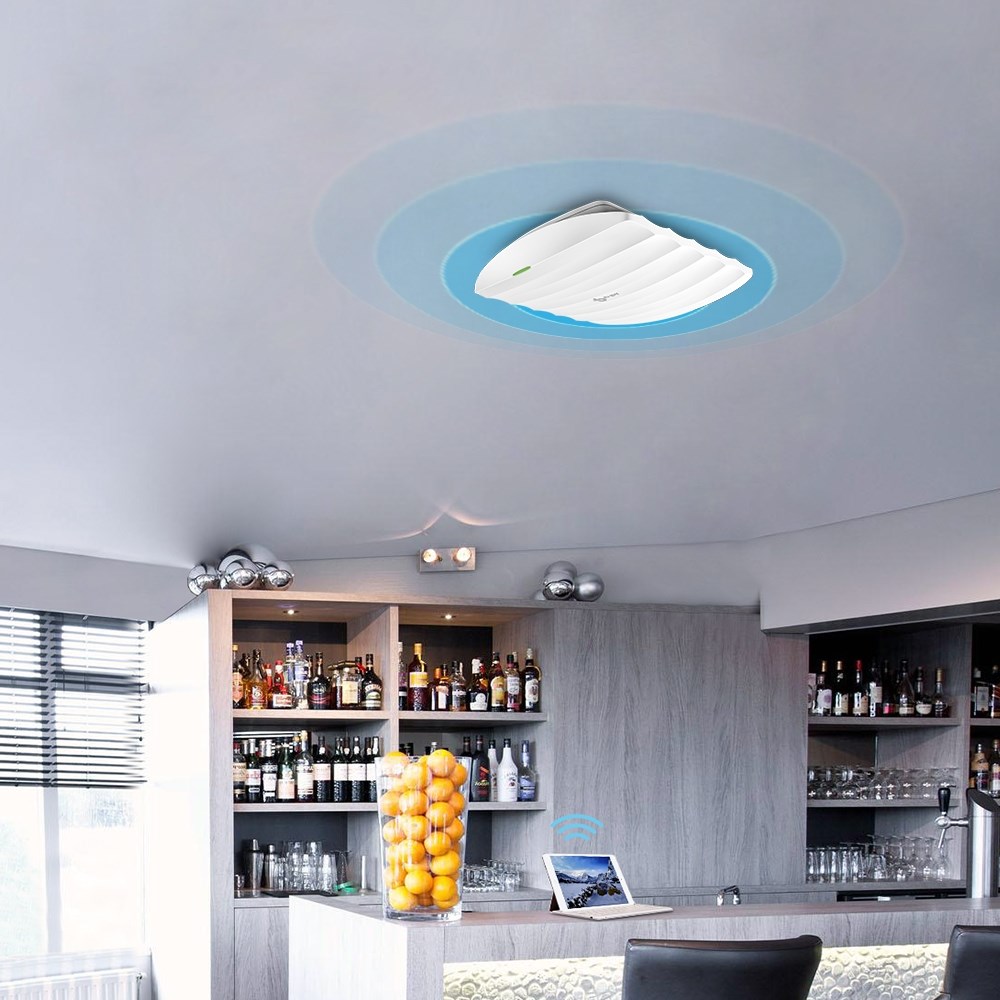

The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

Omada Hardware Controller

51 IN STOCK

SKU: EAP115

Manufacturer: TP-Link

RRP Price €39.18

Specifications

Features

2.4 GHz
Yes
5 GHz
No
Maximum data transfer rate
300 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 2.4835 GHz
Networking standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes
Receiver sensitivity
300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER

Security

Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering
Yes
Service Set Identifier (SSID) features
Hidden SSID
Number of SSID supported
8
System status alarm
Yes
Access Control List (ACL)
Yes

Management features

Web-based management
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
WAN connection
Ethernet (RJ-45), Wi-Fi

Power

Power over Ethernet (PoE)
Yes
Output voltage
9 V
Output current
0.6 A
Power consumption (typical)
2.8 W

Design

Placement
Ceiling, Wall
Product colour
White
On/off switch
Yes
Reset button
Yes
LED indicators
Yes

Antenna

Antenna type
Internal
Antennas quantity
2
Antenna gain level (max)
4 dBi

Certificates

Certification
CE, FCC, RoHS

Weight & dimensions

Width
172.3 mm
Depth
189.4 mm
Height
29.5 mm

Packaging content

Quantity per pack
1 pc(s)
AC adapter included
Yes
Mounting kit
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%

Logistics data

Harmonized System (HS) code
85176990
