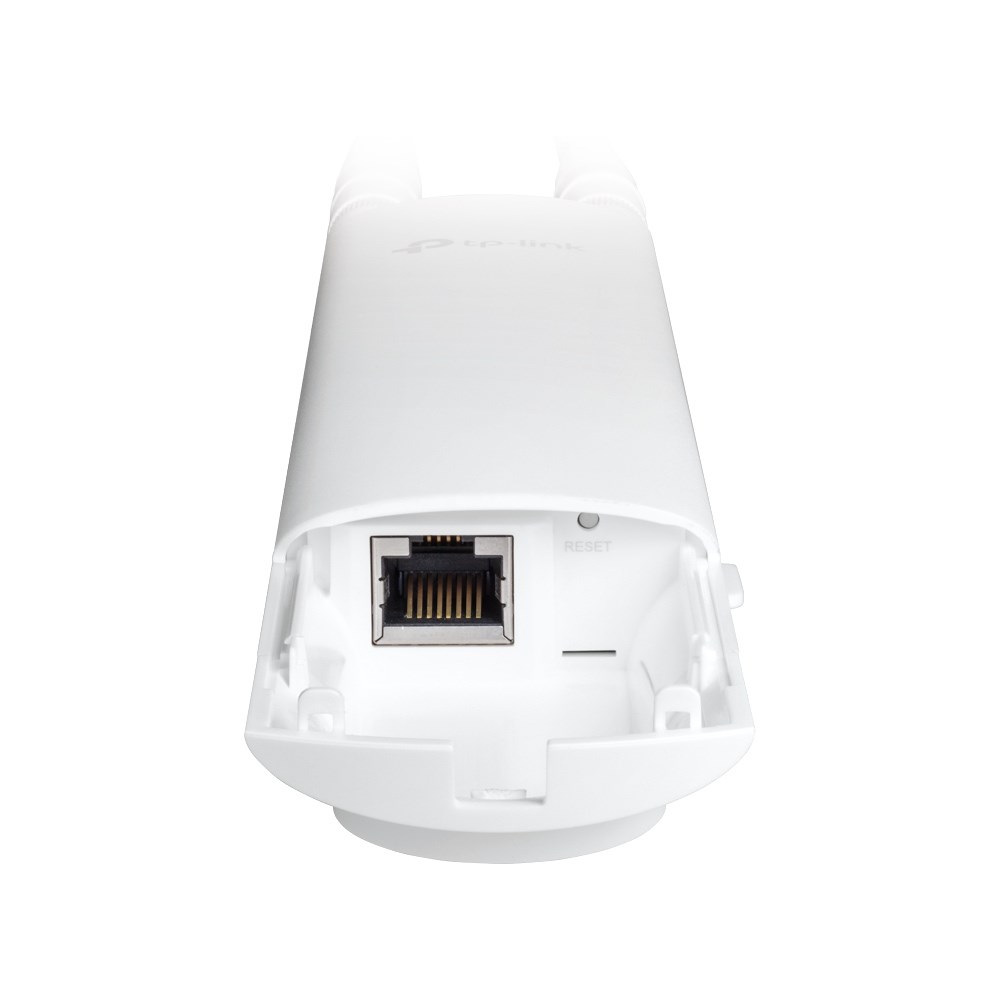

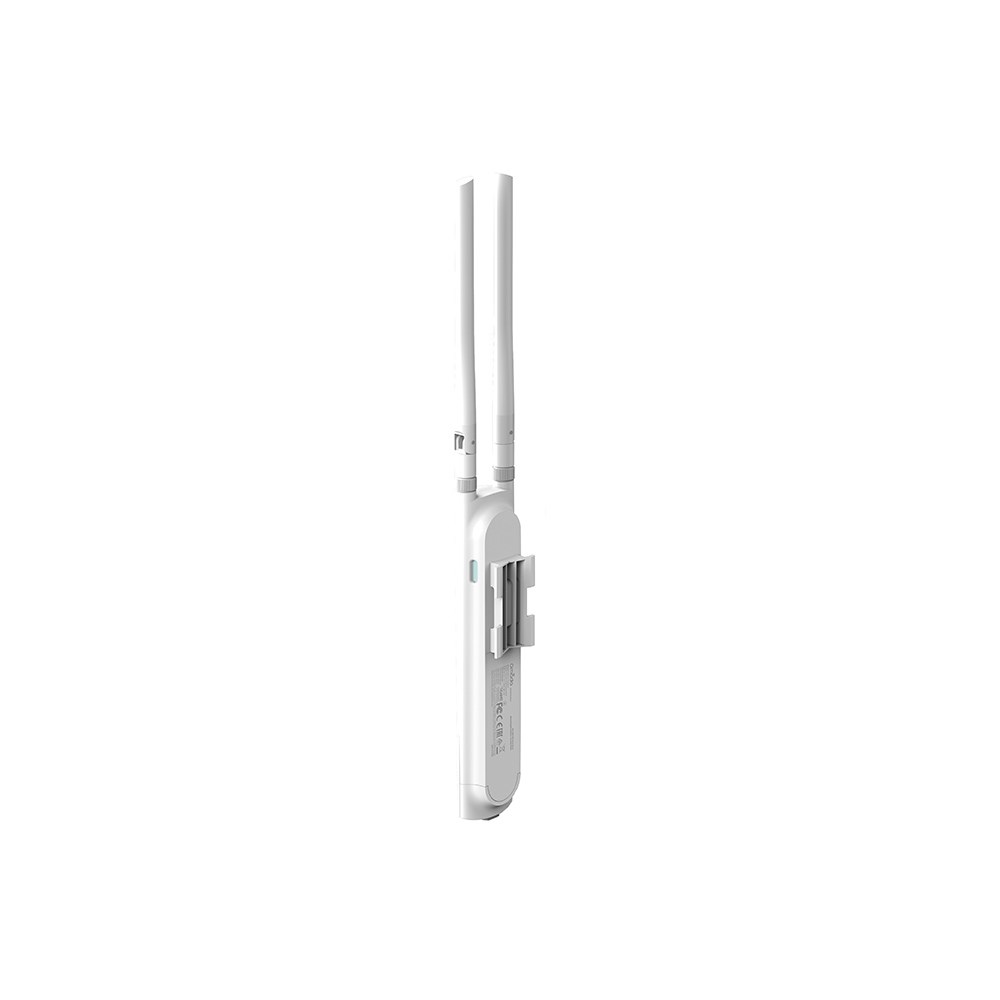

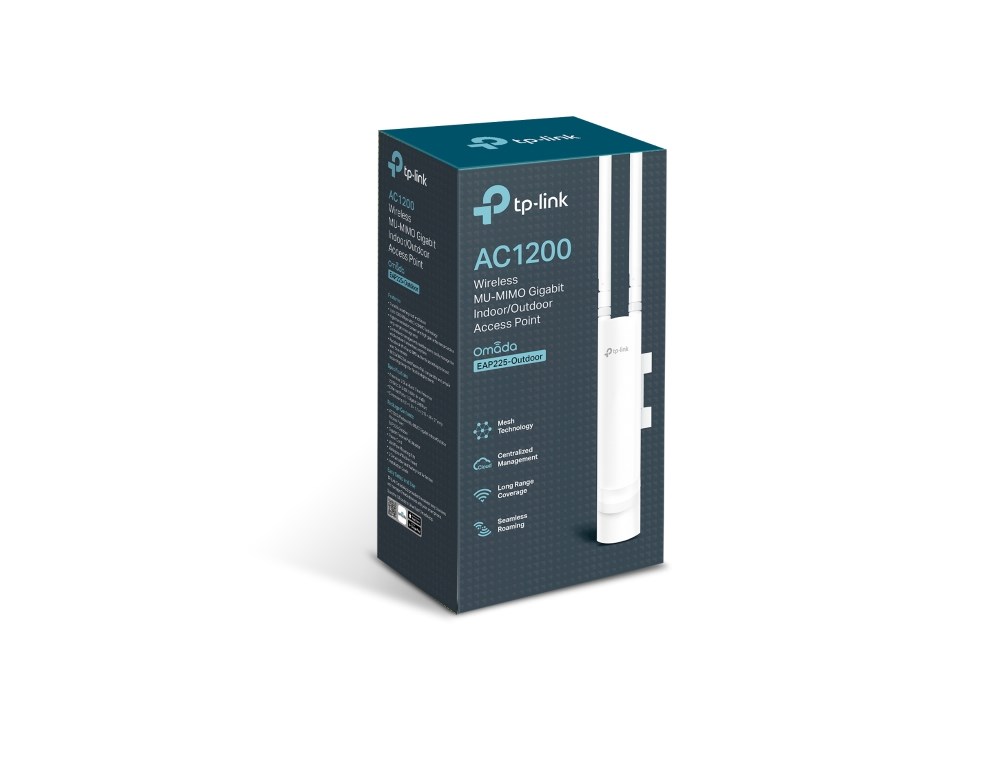

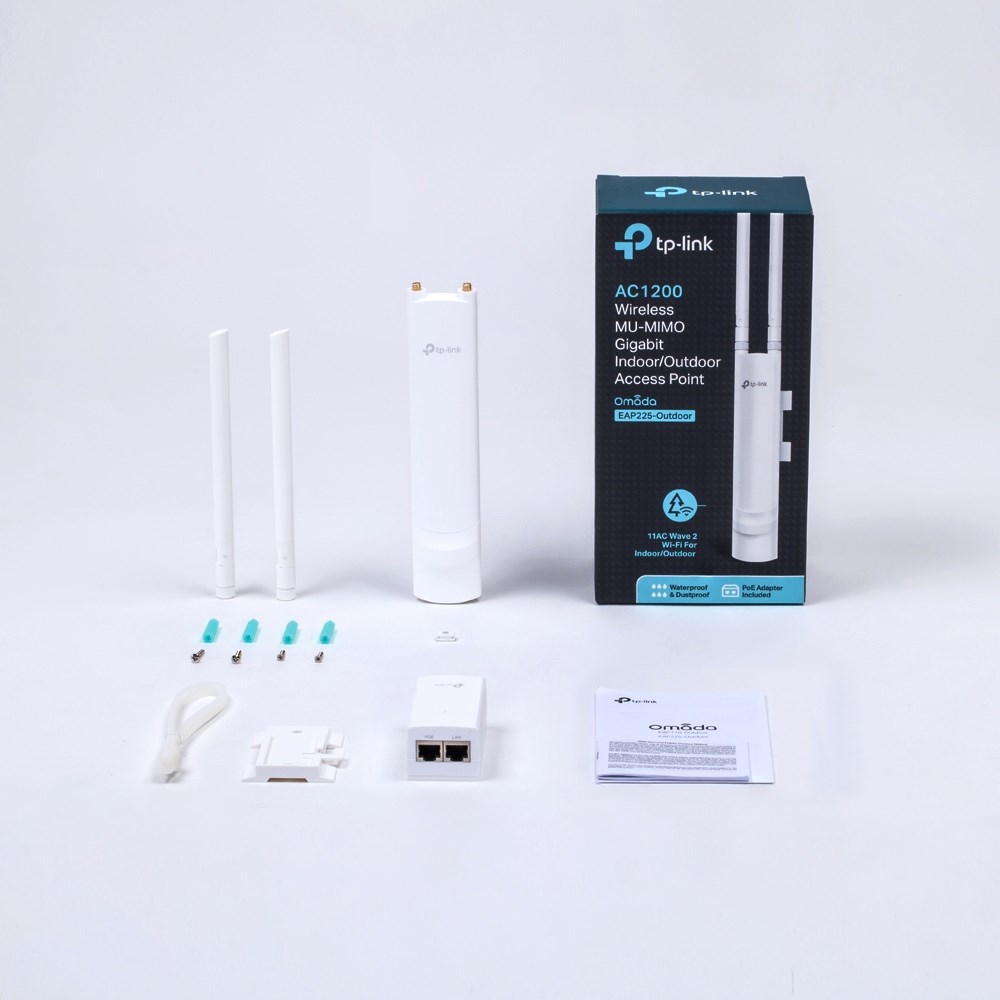

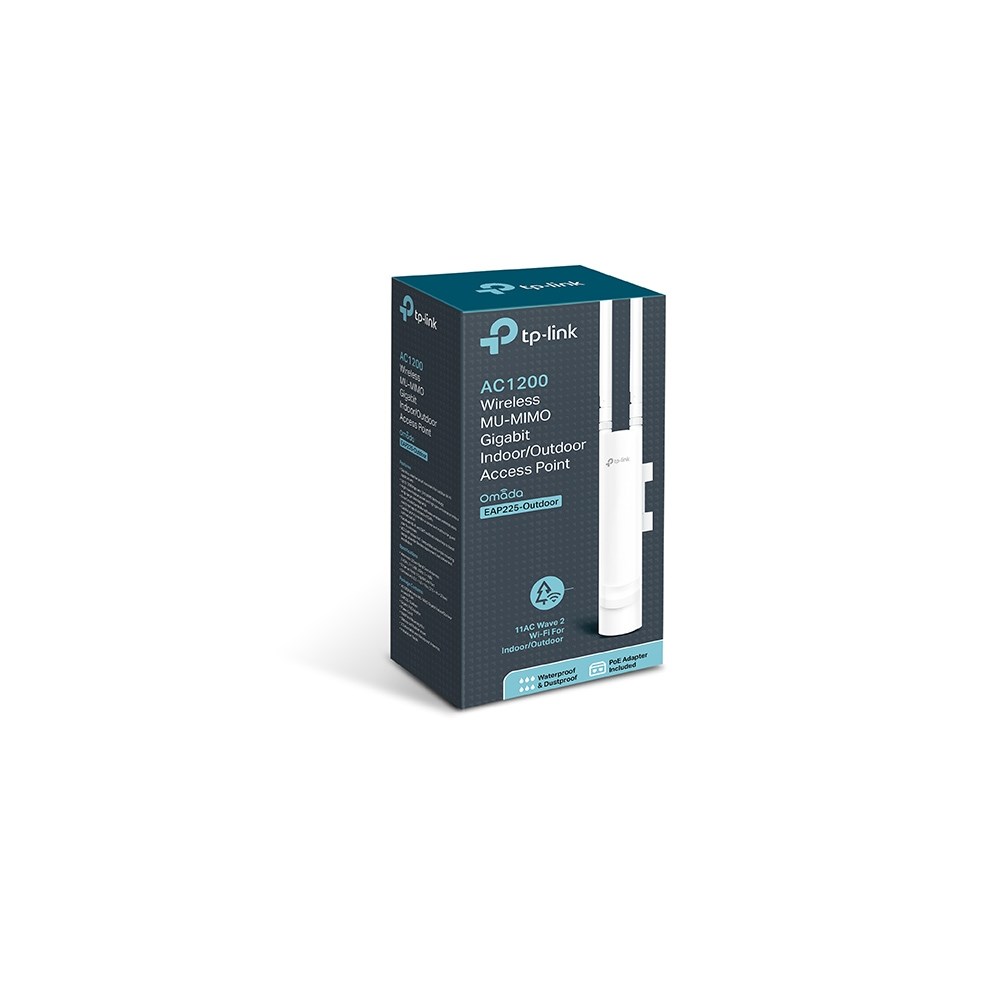

TP-Link Omada EAP225-Outdoor 1200 Mbit/s White Power over Ethernet (PoE)

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for
Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.

46 IN STOCK

SKU: EAP225-OUTDOOR

Manufacturer: TP-Link

RRP Price €96.94

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
1200 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Maximum data transfer rate (5 GHz)
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Frequency band
2.4 - 5 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
MIMO
Yes
MIMO type
Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes
Virtual LAN features
VLAN mapping
Rate limiting
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
BeamForming
Yes
Transmitting power (CE)
27 dBm
Transmitting power (FCC)
22 dBm

Security

Security algorithms
802.1x RADIUS
MAC address filtering
Yes
Service Set Identifier (SSID) features
Multiple SSIDs
Number of SSID supported
16
Access Control List (ACL)
Yes

Management features

Web-based management
Yes
Syslog
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
Passive PoE
Output voltage
24 V
Power consumption (typical)
10.5 W

Design

Placement
Pole, Wall
Product colour
White
International Protection (IP) code
IP65
Reset button
Yes

Antenna

Antenna type
External
Antenna direction type
Omni-directional
Antenna features
Detachable antenna
Antennas quantity
2
Antenna gain level (max)
4 dBi

Performance

Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Weight & dimensions

Width
215 mm
Depth
46 mm
Height
27 mm

Packaging data

Package width
140 mm
Package depth
270 mm
Package height
100 mm
Package weight
640 g

Packaging content

Quantity per pack
1 pc(s)
AC adapter included
Yes
Mounting kit
Yes
Quick start guide
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%

Sustainability

Sustainability compliance
Yes

Logistics data

Harmonized System (HS) code
85176990
