Eaton Ellipse ECO 500 FR uninterruptible power supply (UPS) Standby (Offline) 0.5 kVA 300 W 4 AC outlet(s)

Name: Eaton Ellipse ECO 500 FR uninterruptible power supply (UPS) Standby (Offline) 0.5 kVA 300 W 4 AC outlet(s)
Brand: Eaton
SKU: EL500FR
Price: 111.08 EUR
Availability: OutOfStock

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.

ON ORDER

SKU: EL500FR

Manufacturer: Eaton Eaton

RRP Price €111.08

Specifications

Features

UPS topology

Standby (Offline)

Output power capacity

0.5 kVA

Output power

300 W

Input operation voltage (min)

161 V

Input operation voltage (max)

284 V

Input frequency

50/60 Hz

Output operation voltage (min)

220 V

Output operation voltage (max)

240 V

Emergency Power Off (EPO)

Surge protection

Yes

Surge protection features

Fax, Modem, Network, Telephone

Audible alarm(s)

Yes

Audible alarm modes

Battery replacement

Ports & interfaces

AC outlet types

Type E

Power plug

C14 coupler

AC outlets quantity

4 AC outlet(s)

Modem (RJ-11) ports

Ethernet LAN (RJ-45) ports

Battery

Battery technology

Sealed Lead Acid (VRLA)

Typical backup time at half load

9 min

Hot-swap battery

Automatic battery test

Yes

Cold start

Yes

Design

Form factor

Tower

Rack capacity

Product colour

Black

LED indicators

Battery replacement

Safety regulation & standards

Safety

IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1

Weight & dimensions

Width

81 mm

Depth

235 mm

Height

263 mm

Weight

2.9 kg

Logistics data

Harmonized System (HS) code

85078000

Other features

Input connection type

Nominal output voltage

220-240 V

Nominal input voltage

230 V

Overload protection

Yes

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

2.9 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!

Related Products

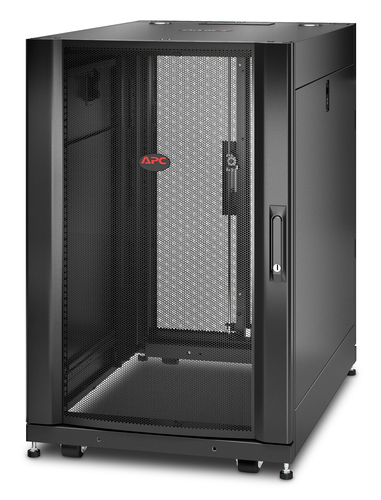

APC NetShelter SX, Server Rack Enclosure, 18U, Black, 925H x 600W x 900D mm UPS

An industry standard rack with the most standard features for speed of deployment and installation. Ready for low to medium density edge computing. Shorter height allows for deployment underneath cabinets, desks, in remote office branch office spaces for a secure and discrete solution for IT devices.

€1,110.34

GA20A2631A03100000 UPS

€17,195.86

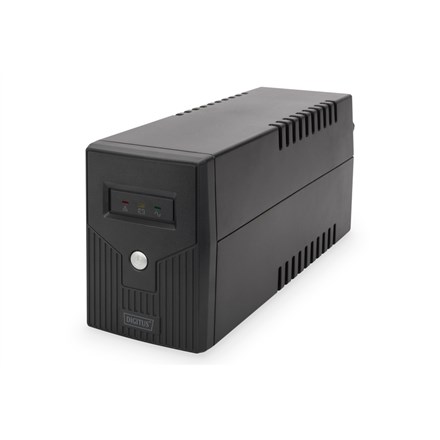

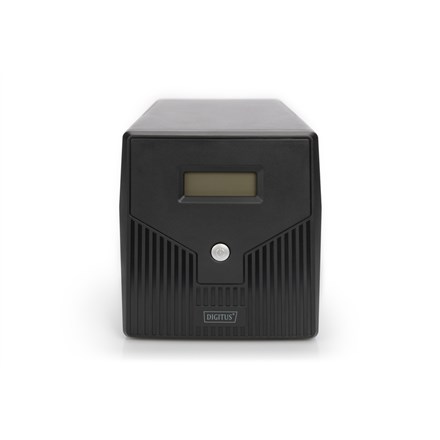

Digitus Line-Interactive UPS, 600 VA/360 W UPS
