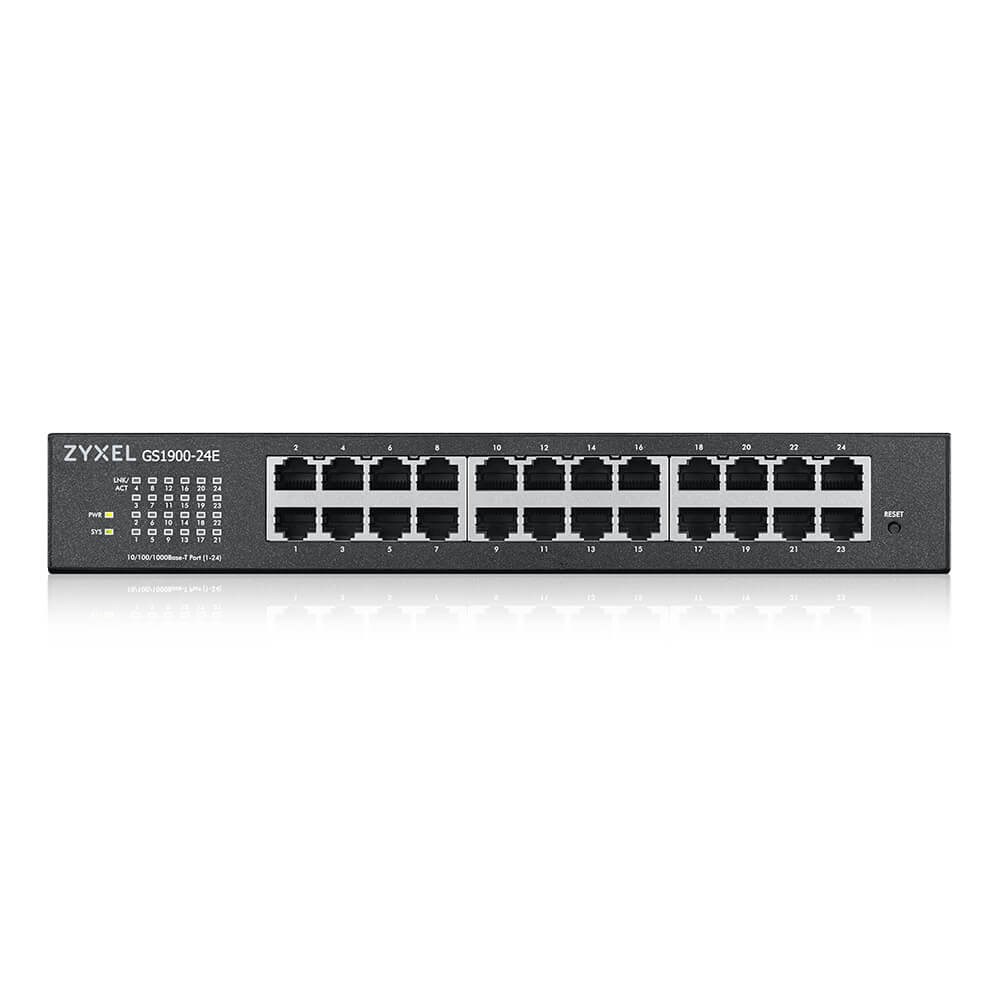

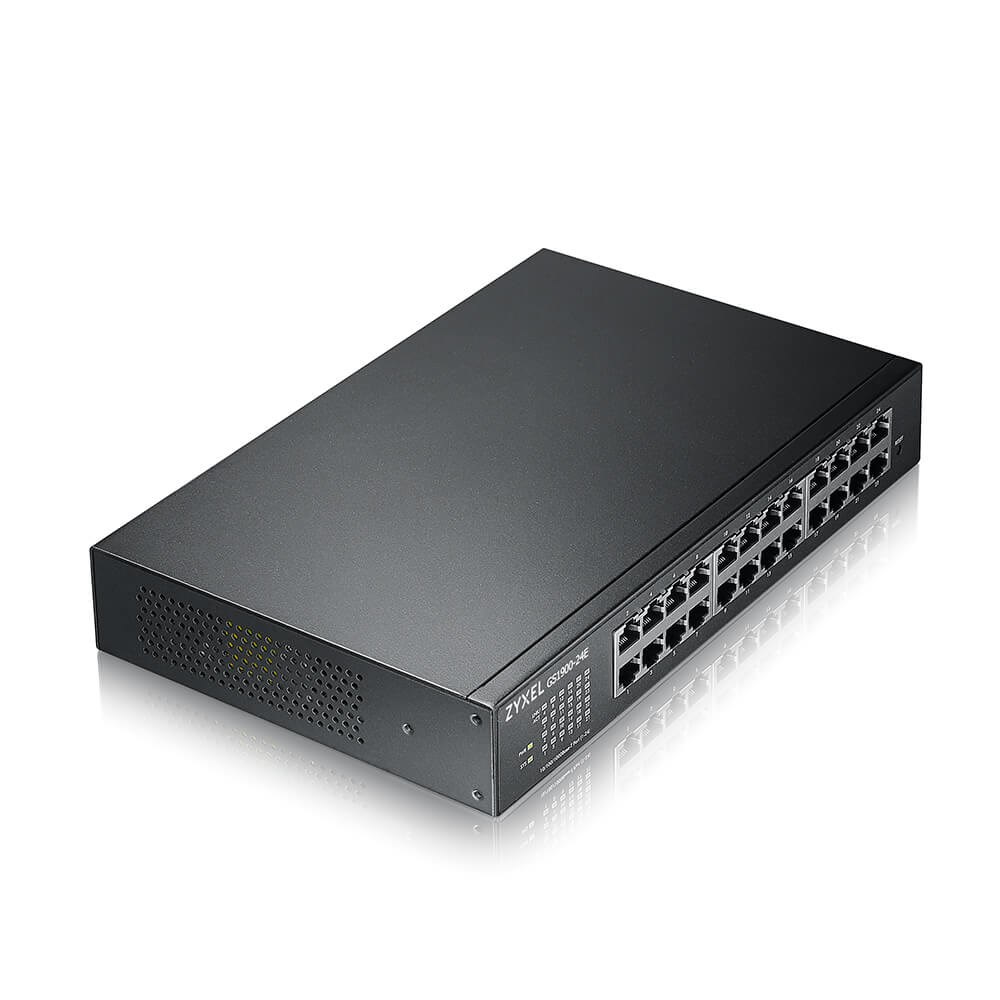

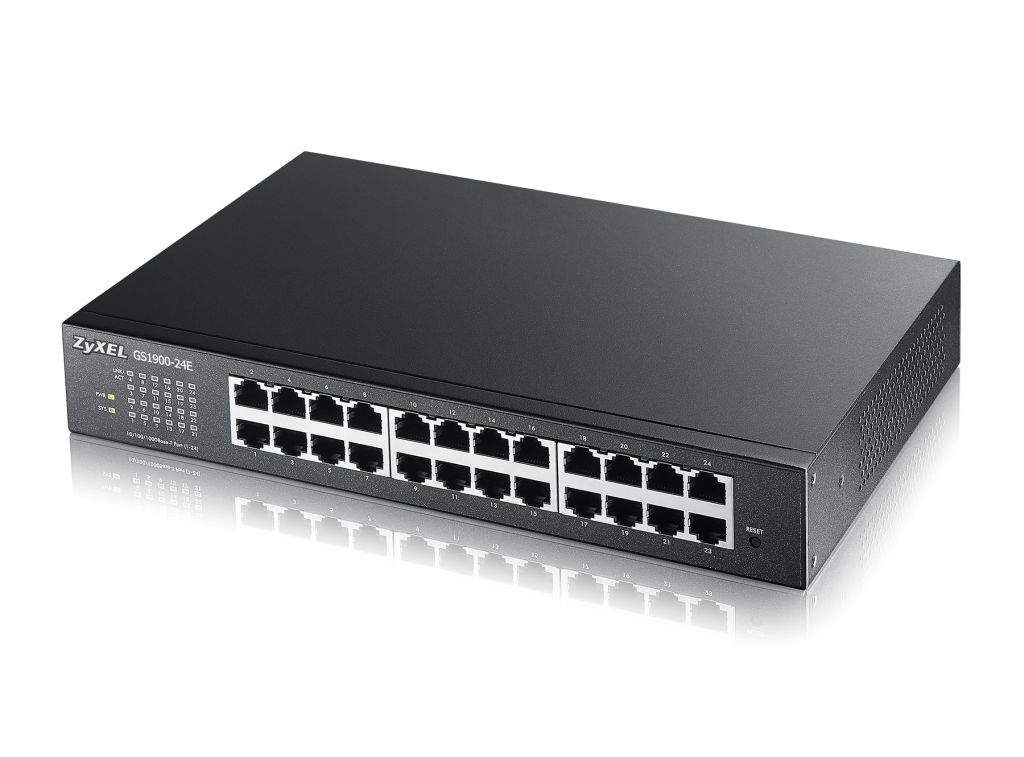

Zyxel GS1900-24E-EU0103F network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

Zyxel GS1900-24E-EU0103F network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

Name: Zyxel GS1900-24E-EU0103F network switch Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
Brand: Zyxel
SKU: GS1900-24E-EU0103F
Price: 115.00 EUR
Availability: InStock

Near silent operation
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.

Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.

Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.

Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.

28 IN STOCK

SKU: GS1900-24E-EU0103F

Manufacturer: Zyxel Zyxel

RRP Price €115.00

Specifications

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Web-based management

Yes

System event log

Yes

MIB support

RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9),RFC 1215 generic traps, RFC 1493 bridge, Zyxel private common MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Power connector

AC-in jack

Network

Networking standards

IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

10G support

Port mirroring

Yes

Full duplex

Yes

Flow control support

Yes

Link aggregation

Yes

Spanning tree protocol

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

MAC address auto-learning supported

Yes

VLAN support

Yes

Virtual LAN features

Stacked VLAN, VLAN mapping

Data transmission

Switching capacity

48 Gbit/s

Forwarding rate

35.7 Mpps

MAC address table

8000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

0.525 MB

Security

DHCP features

DHCP client

IGMP snooping

Yes

Security algorithms

802.1x RADIUS

MAC address filtering

Yes

Static port security

Yes

SSH/SSL support

Yes

Password protection

Yes

Authentication type

RADIUS, TACACS+

Design

Rack mounting

Yes

Stackable

Yes

Form factor

Product colour

Black

Reset button

Yes

LED indicators

Yes

Wall mountable

Yes

Performance

Mean time between failures (MTBF)

804.714 h

Power

Power source

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (max)

15.1 W

Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 95%

Storage relative humidity (H-H)

10 - 95%

Heat dissipation

51.49 BTU/h

Weight & dimensions

Width

267 mm

Depth

162 mm

Height

42 mm

Weight

1.56 kg

Packaging content

Cables included

Rack mount kit

Yes

Packaging data

Package type

Box

Package width

325 mm

Package depth

223 mm

Package height

71 mm

Package weight

2.05 kg

Certificates

Certification

EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Zyxel

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

1.56 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
