Zyxel XGS1250-12 Managed L2 10G Ethernet (100/1000/10000) Grey

Double the 10G Capability!
XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Agile Network Applications

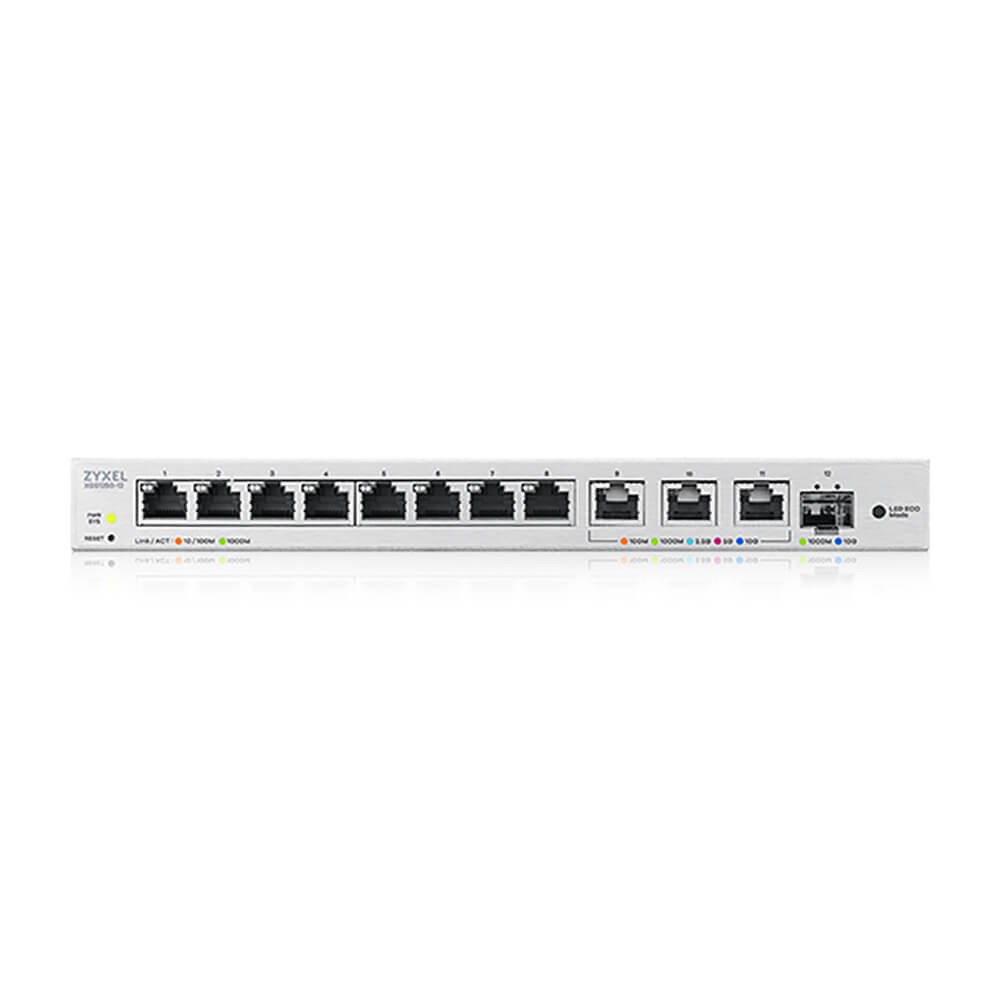

Featured with 1G ports, 10G Multi-Gigabit ports, as well as 10G fiber port, this port combination is capable of servicing a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs, or new 2.5G motherboards. The unique 5-color LED on the front panel is designed for you to check the link speed instantly.

Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.

Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Whisper-silent, Energy-saving at Work
With the built-in smart fan which is designed to automatically adjust speeds based on the device temperature, you can barely hear the sound while the switch is in operation. Also, you can deactivate the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode through the front panel button* or the web-based interface.

1 IN STOCK

SKU: XGS1250-12-ZZ0102F

Manufacturer: Zyxel Zyxel

RRP Price €228.80

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
MIB support
Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
11
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
SFP+ module slots quantity
1
Power connector
DC-in jack

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
Yes
Port mirroring
Yes
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000,2500,10000 Mbit/s
VLAN support
Yes

Data transmission

Switching capacity
96 Gbit/s
Forwarding rate
71.42 Mpps
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
12000

Security

DHCP features
DHCP client
IGMP snooping
Yes

Multicast features

Multicast support
Yes

Design

Rack mounting
No
Stackable
No
Product colour
Grey
Housing material
Aluminium, Iron
Reset button
Yes
LED indicators
Yes
Redundant fans support
Yes
Wall mountable
Yes
DIN rail mounting
No
Number of fans
1 fan(s)

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
20.06 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
250 mm
Depth
104 mm
Height
27 mm
Weight
783 g

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
