Grandstream Networks GWN7831 network switch Managed L3 Gigabit Ethernet (10/100/1000) Grey

Name: Grandstream Networks GWN7831 network switch Managed L3 Gigabit Ethernet (10/100/1000) Grey
Brand: Grandstream
SKU: GWN7831
Price: 375.51 EUR
Availability: InStock

Layer 3 Aggregation Managed Switches
The GWN7830 series are Layer 3 aggregation managed switches that allow enterprises to build scalable, secure, high performance and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, comprehensive security capabilities against potential attacks. GWN7830 series can be managed in a number of ways, including the local Web user interface of the switch and CLI, the command-line interface. And also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-remise network management platform. With complete end-to-end quality of service and flexible security settings, the GWN7830 series are the best value enterprise-grade aggregation managed switches.

3 IN STOCK

SKU: GWN7831

Manufacturer: Grandstream

RRP Price €375.51

Specifications

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Cloud-managed

Yes

Traffic shaping

Yes

ARP inspection

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

SFP+ module slots quantity

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Yes

Port mirroring

Yes

Link aggregation

Yes

Rate limiting

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Virtual LAN features

Tagged VLAN

Number of VLANs

4000

Data transmission

Switching capacity

128 Gbit/s

Throughput

64 Gbit/s

Forwarding rate

95.232 Mpps

MAC address table

16000 entries

Store-and-forward

Yes

Static route

Yes

Packet buffer memory

12 MB

Security

DHCP features

DHCP Option 82, DHCP relay, DHCP server, DHCP snooping

Access Control List (ACL)

Yes

Access Control List (ACL) IPv4 entries

2000

Access Control List (ACL) IPv6 entries

2000

IGMP snooping

Yes

Security algorithms

802.1x RADIUS, SNMP

MAC address filtering

Yes

Loop protection

Yes

BPDU filtering/protection

Yes

Password protection

Yes

Authentication type

AAA, RADIUS, TACACS+

Queue scheduling algorithms

SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)

Protocols

GARP VLAN Registration Protocol (GVRP)

Yes

Design

Rack mounting

Yes

Product colour

Grey

LED indicators

Yes

Number of fans

2 fan(s)

Power

Power source

Power supply included

Yes

Redundant power supply (RPS) support

Yes

Input voltage

12 V

Power consumption (typical)

60 W

Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

200 mm

Depth

440 mm

Height

44 mm

Packaging content

Cables included

Quick start guide

Yes

Rack mount kit

Yes

Description

Manufacturer

Grandstream

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

3.15 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

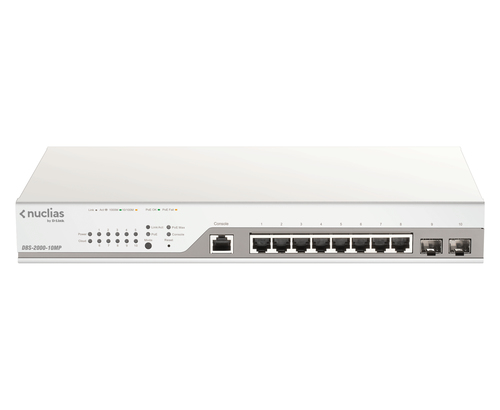

D-Link 10-Port Gigabit PoE+ Nuclias Smart Managed Switch including 2x SFP Ports Switches

Cloud Networking, RefreshedThe DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.Management Over the CloudDBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.Easy TroubleshootingThe DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.Advanced Security FeaturesThe DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.Full PoE SupportSelect models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.

€320.59

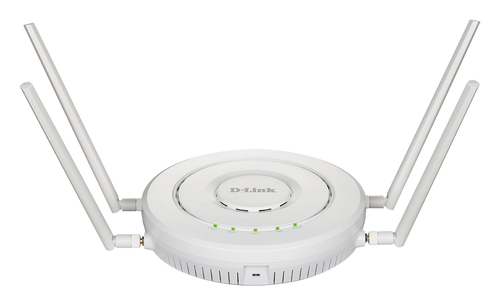

D-Link Wireless AC2600 Wave2 Nuclias Access Point Switches

Cloud Networking, RefreshedThe DBA-2820P Access Point (AP) is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of IT infrastructure as simple and hassle-free as possible. Built for Heavy WorkloadsThe DBA-2820P is a workhorse solution built to handle bandwidth-intensive applications involving numerous clients. It delivers high-speed wireless AC (Wave 2) connection reliably, with maximum wireless signal rates of up to 2.6Gbps, and 4 x 4 MU-MIMO (four spatial streams). Performance is further optimized via the Nuclias Cloud platform which adjusts the DBA-2820P’s channel selection, transmission power, and maximum number of client connections.Advanced Management & SecurityThe Nuclias Cloud interface lets admins easily manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With SSID isolation, MAC address filtering, and end-to-end encryption, this is a versatile solution for those seeking easy configuration, without added complexities.Full PoE SupportThe DBA-2820P Access Point supports Power over Ethernet (IEEE 802.3at standard) for its Gigabit LAN port. Power over Ethernet greatly simplifies the installation of compatible devices such as VoIP phones and IP cameras in remote locations that lack easy access to a power outlet.

€482.89

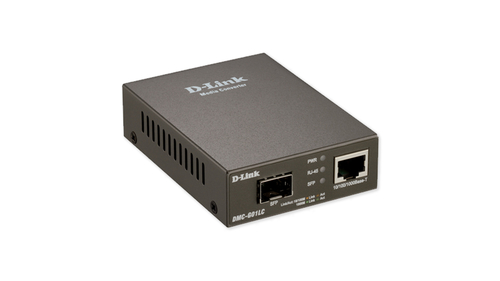

D-Link DMC-G01LC/E network media converter 1000 Mbit/s Grey Switches

D-Link’s DMC-G01LC standalone media Converter turns a copper Ethernet link into a fiber link, allowing for an ultra-fast, long distance connection. Installation of a standalone media converter is simple, and allows you to tap into fiber speeds with ease. Instead of requiring an investment in an entire chassis, a standalone media converter provides the same high-quality conversion on a unit-by-unit basis. You can save space and cut costs while still extending your network over long distances of 10 km and beyond on a fiber optic line.SFP Optical Transceivers for Maximum FlexibilityThe fiber side of the DMC-G01LC utilizes a 100/1000 SFP port for maximum flexibility. Using the appropriate SFP transceiver (purchased separately) it can support either multimode or single-mode fiber, varying wavelengths, and speeds of either 100 Mbps or 1000 Mbps.10/100/1000 Copper SpeedsThe copper side of the DMC-G01LC auto-negotiates to 10Mbps, 100Mbps or 1000Mbps, ensuring the connection functions at the highest possible speed while remaining compatible with the link partner. It supports auto MDI/MDIX, half/full duplex operation at 10/100 Mbps and full duplex operation at 1000 Mbps.Plug & PlayThe DMC-G01LC supports standard technologies that makes it easy to operate, like 802.3u. 802.3x and 802.3ab. There’s no management software to configure – simply connect the power, connect the cables, and start converting.

€35.62

D-Link DWL-8620APE wireless access point 2533 Mbit/s White Power over Ethernet (PoE) Switches

The DWL Series Unified AC Wave 2 Wireless Access Points leverage the full potential of 802.11ac Wave 2 to provide unparalleled connectivity with ultra-high combined data rates. The DWL-8620AP and DWL-8620APE offer a faster combined speed of up to 2,533 Mbps. In addition, the DWL Series supports Link Aggregation3, which allows two Gigabit Ethernet ports to be linked together and act as a single port to double the available bandwidth and maximize the overall throughput of the access point.

€453.49

D-Link USB-C to Gigabit Ethernet Adapter Switches

GIGABIT ETHERNET CONNECTIVITYThe DUB-E130 USB-C to Gigabit Ethernet Adapter plugs into any available USB Type-C port on your computer to enable you to connect to an Ethernet network at speeds up to 1Gbps which is up to ten times faster transfer speeds compared to previous standards. HIgh-speed Gigabit Ethernet allows you to transfer large files in no time, or make light work of backups to a server or network storage device.EASY TO INSTALL AND USEThe DUB-E130 USB-C to Gigabit Ethernet Adaper connects to your computer's USB Type-C port and is ready to run as soon as it's plugged in. Plug-and-Play design ensures that there is no need to change any configuration settings or install any software on your computer. ERERGY-SAVING FUNCTIONAILITYPower to the DUB-E130 is provided directly by the USB Type-C port, eliminating the need for an external AC power adapter. The DUB-E130 not only supports the USB3.0 standard's power-saving features, but also incldues an energy-saving suspend and resume function to minimize power consumption when network traffic is light, the device is idle, or when the Ethernet cable is unplugged. This feature is especially useful in helping to conserve battery life, allowing you to keep working for longer without needing to recharge.

€17.81

D-Link DGS-1005P/E network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black Switches

Fast. Compact. Convenient.The D‑Link DGS‑1005P 5‑Port Desktop Gigabit PoE+ Switch enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), network video cameras and IP phones to the network. Built with home and small business users in mind, the DGS‑1005P is compact and operates silently, making it ideal for most rooms and offices.Gigabit Performance.The DGS-1005P features plug-and-play installation and requires no configuration.Automatic MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-1005P maximises network performance while minimising the transmission of bad network packets.Power Over Ethernet+The DGS-1005P features four Gigabit Ethernet ports that support the IEEE 802.3af and IEEE 802.3at PoE, supplying up to 30 W on each PoE port and providing a total power budget of 60 W.You can connect compatible devices to the DGS-1005P without using an additional power supply. This allows you to save on cabling and power supplies and to install devices on locations without immediate access to power outlets.Green TechnologyThe DGS-1005P features green technology such as IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection.EEE adjusts the power consumption of the switch based on network utilisation, reducing energy use during periods of inactivity. Link status detection powers down unused ports, saving power when connected devices are shut down or disconnected. Cable length detection adjusts the power output of the port based on the cable length, reducing the power requirements of the switch.Compact and SilentThe compact design of the DGS-1005P allows placement in most locations, including those where space is at a premium.The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noise-sensitive areas such as workstations and meeting rooms.

€55.08

D-Link Nuclias 1 Year Cloud Managed Access Point Licence Switches

Convenient network managementLeverage the power of Nuclias to conveniently & cost-effectively automate, monitor, manage, and scale your wireless network. It’s simple and intuitive, and designed to make the scaling process cost-effective for Small-to-Medium-sized Businesses (SMBs). Don’t waste hours configuring new devices onsite. Don’t waste time looking for the right metrics. Nuclias has the flexibility to make onboarding, studying, troubleshooting, and reporting your network activity quick and easy. Control across the networkNuclias is an end-to-end solution. Whether you have a small chain of coffee shops, a bustling hotel, or even a college campus to cover, Nuclias offers the enterprise-grade hardware, software, and reliability you need to provide a seamless connected experience – indoors and outdoors. Nuclias is made for youEvery business is unique, including yours. When it comes to network management, there are two ways for SMBs to approach it – and Nuclias offers a solution for each. Some want simple, worry-free network management that mostly stays out of sight, and just works (Nuclias Cloud). Others are more interested in their infrastructure, and see the value of taking a more active role in network management (Nuclias Connect).

€65.48

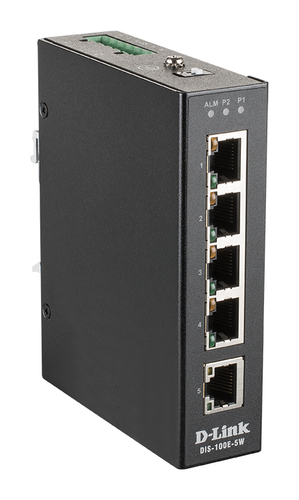

D-Link 5-Port Unmanaged Industrial Switch with 5 x 10/100 BaseT(X) ports Switches

Unmanaged Plug and PlayPlug in and go. The DIS-100E-5W reliably forwards Ethernet frames.Fast Ethernet ConnectivityDesigned with 5 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout.Officially CertifiedCertifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.Withstands Extreme TemperaturesOperates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.Strong BuildThe tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.Fast DeploymentFor instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.Fanless DesignWith no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

€159.48

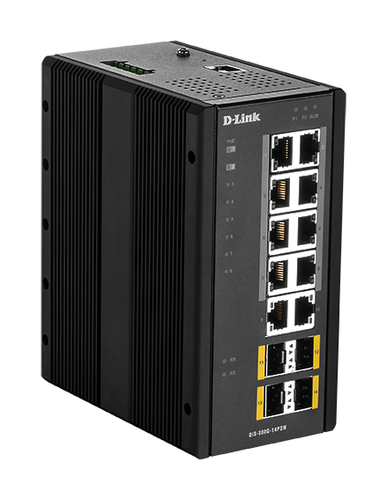

D-Link 14-Port L2 Managed Switch with 10 x 10/100/1000BaseT(X) (8 PoE) & 4 x 100/1000BaseSFP Switches

Managed CustomizationFeatures user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-14PSW is easy to manage and provides the security and controls to guard and shape your network needs.Gigabit Connectivity with PoE and SFP slotsDesigned with 8 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 4 x 100/1000BaseSFP slots to suit a range of devices and network layouts.Officially CertifiedCertifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.Withstands Extreme TemperaturesOperates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.Strong BuildThe tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.High AvailabilityRapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.PoE SupportWith its 240W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.Fast DeploymentFor instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.Fanless DesignWith no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.Discrete SizeSmall but mighty. To make the most of cabinet space, it measures: 77 x 154 x 128 mm.

€1,469.54

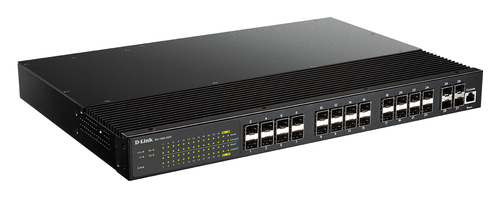

D-Link Industrial Layer 2+ Gigabit Managed Switch with 24 SFP Ports & 4 Port 10G SFP+ Switches
