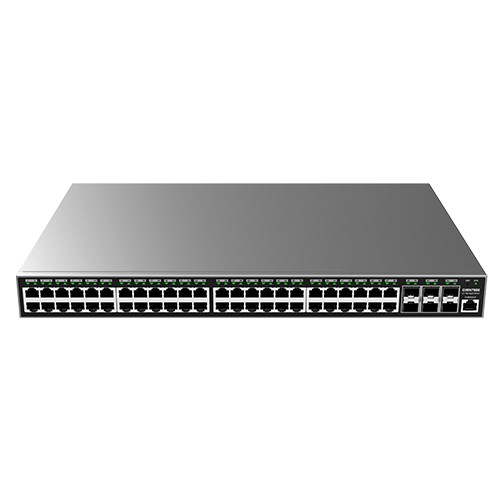

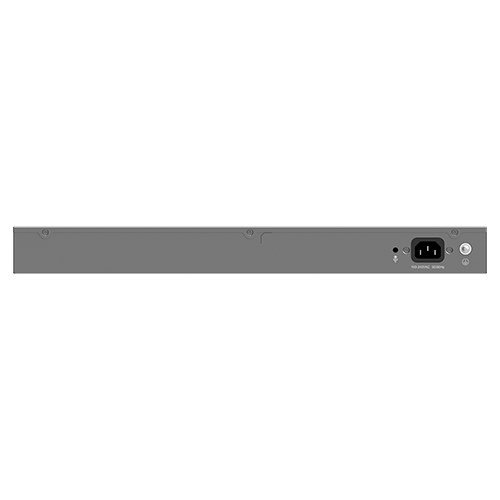

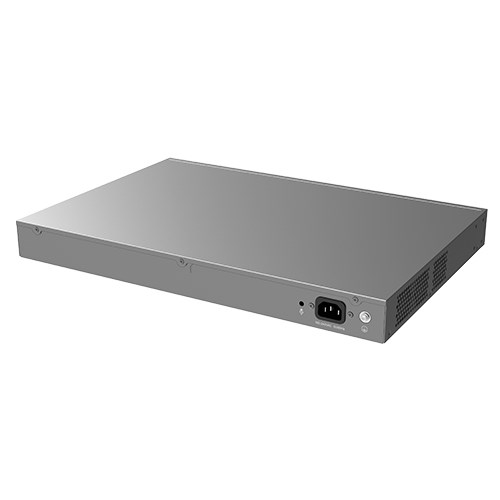

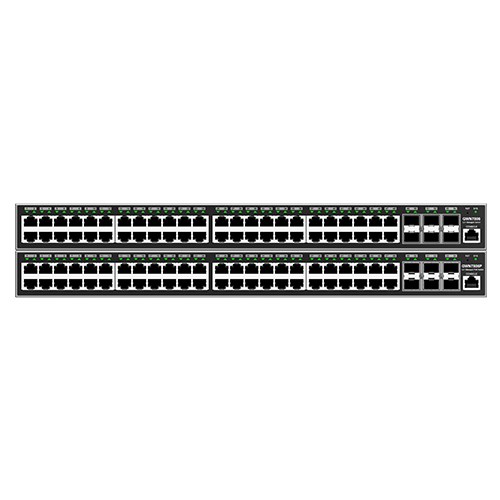

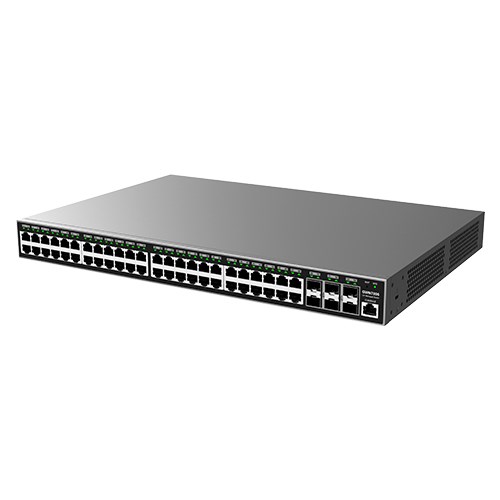

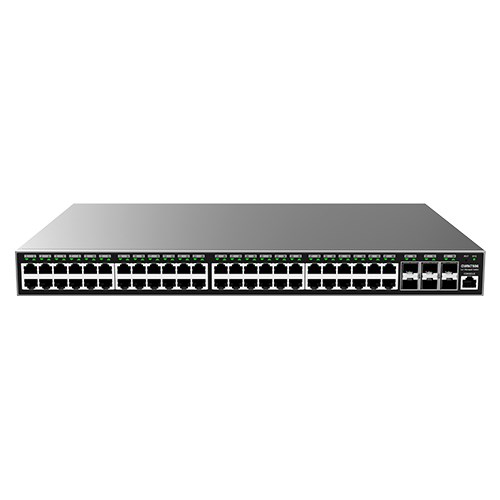

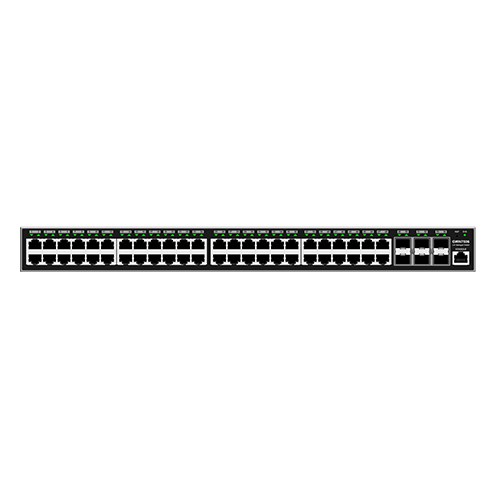

Grandstream Networks GWN7806P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

The GWN7806(P) is a high-performance layer 2+ managed network switch with 48 ports that allows small-to-medium enterprises to build scalable, secure, and smart business networks that are fully manageable

GWN.Cloud
GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

GWN Manager
GWN Manager is a on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

Embedded Controller
Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.

ON ORDER

SKU: GWN7806P

Manufacturer: Grandstream Grandstream

RRP Price €678.04

Specifications

Management features

Switch type
Managed
Switch layer
L2+
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
Traffic shaping
Yes
ARP inspection
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
6

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Port mirroring
Yes
Link aggregation
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Tagged VLAN
Number of VLANs
4000

Data transmission

Switching capacity
216 Gbit/s
Throughput
108 Gbit/s
Forwarding rate
160.704 Mpps
MAC address table
32000 entries
Store-and-forward
Yes
Static route
Yes
Packet buffer memory
16 MB

Security

DHCP features
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)
Yes
Access Control List (ACL) IPv4 entries
4000
Access Control List (ACL) IPv6 entries
4000
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SNMP
MAC address filtering
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Password protection
Yes
Authentication type
AAA, RADIUS, TACACS+
Queue scheduling algorithms
SP, WFQ, WFQ+SP, WRR+SP, Weighted Round Robin (WRR)

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

Design

Rack mounting
Yes
Stackable
Yes
Product colour
Grey
LED indicators
Yes
Number of fans
3 fan(s)

Performance

Physical stacking (units)
16

Power

Power source
DC/PoE
Power supply included
Yes
Power consumption (typical)
470 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
48
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
400 W

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
301 mm
Depth
440 mm
Height
44 mm
Weight
5.1 kg

Packaging content

Cables included
AC
Quick start guide
Yes
Rack mount kit
Yes

Accessories

License
