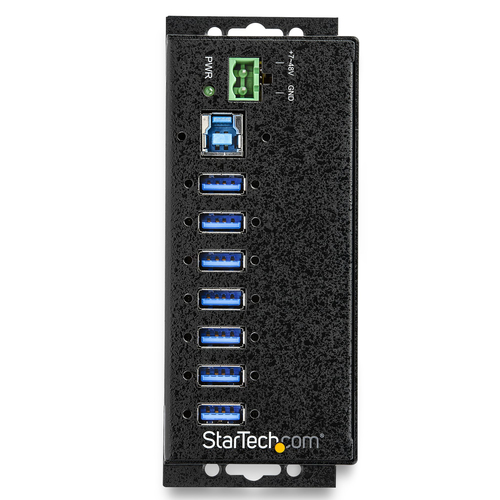

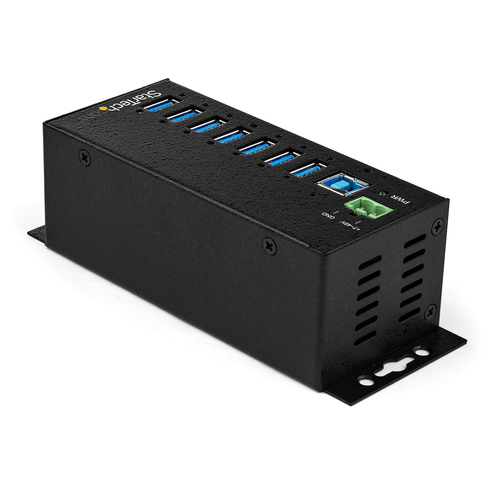

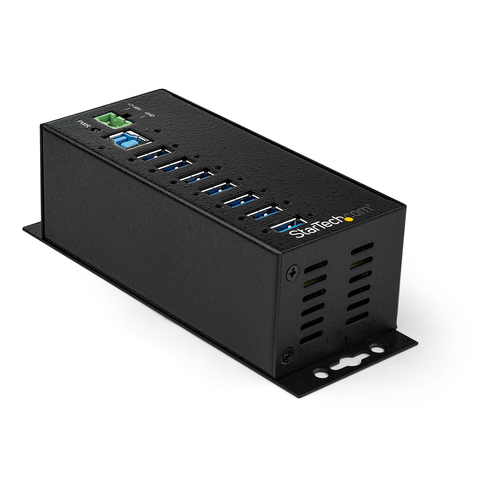

StarTech.com 7-Port USB 3.0 Hub with Power Adapter - Metal Industrial USB-A Hub with ESD & 350W Surge Protection - Din/Wall/Desk Mountable - High Speed USB 3.2 Gen 1 (5Gbps) Hub - TAA

Industrial-Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5Gbps

This TAA compliant 7-port industrial USB 3.2 Gen 1 hub gives you the scalability and power supply flexibility you need in harsh industrial environments, product, and repair labs, conference rooms or office workstations. With its rugged industrial-grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 7 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. You have the option to power the industrial hub by connecting the hub directly to an outlet with the included external terminal block power adapter, for more convenient and flexible installation.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The HB30A7AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

3 IN STOCK

SKU: HB30A7AME

Manufacturer: StarTech.com StarTech.com

RRP Price €186.70

Specifications

Ports & interfaces

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
7
Ports quantity
7
Terminal block port
Yes

Features

Data transfer rate
5000 Mbit/s
Product colour
Black
Surge protection
Yes
LED indicators
Power
Plug and Play
Yes
Certification
RoHS, REACH, CE, FCC, TAA

Network

UASP support
Yes

Power

Power supply type
AC
Power consumption (typical)
65 W
Input voltage
100 - 240 V
Input current
1.4 A
Output voltage
20 V
Output current
3.25 A

Weight & dimensions

Width
55 mm
Depth
145 mm
Height
45 mm
Weight
326 g

Packaging data

Quantity per pack
1 pc(s)
Package width
190 mm
Package depth
294 mm
Package height
70 mm
Package weight
1.3 kg

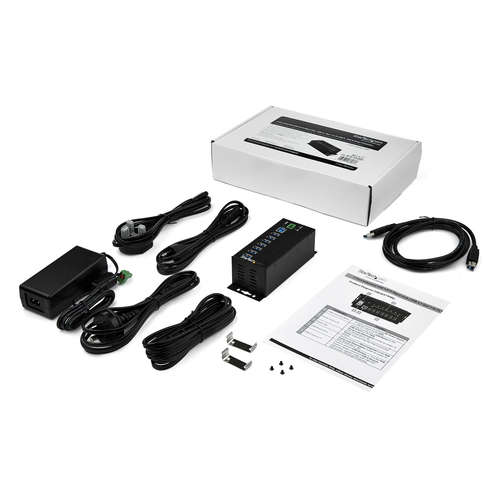

Packaging content

AC adapter included
Yes
Included power plug types
ANZ, EU, JP, NA, UK
Cables included
USB
Quick installation guide
Yes
DIN rail kit included
Yes

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%

Performance

Mean time between failures (MTBF)
126106 h

Logistics data

Master (outer) case width
400 mm
Master (outer) case length
520 mm
Master (outer) case height
315 mm
Products per master (outer) case
14 pc(s)
Harmonized System (HS) code
84719000

Other features

Chipset
Genesys Logic - GL3523
