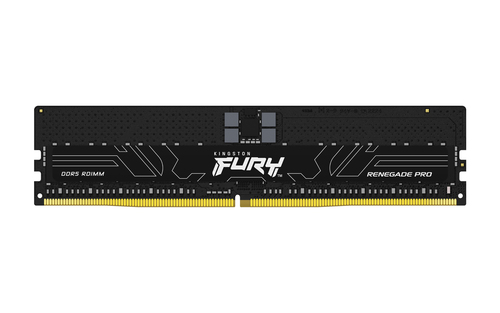

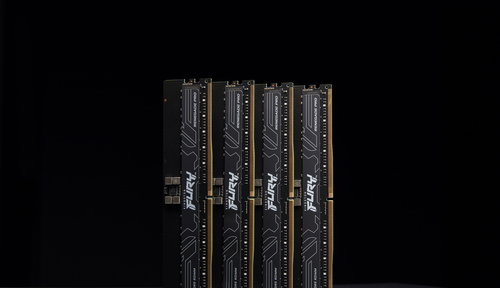

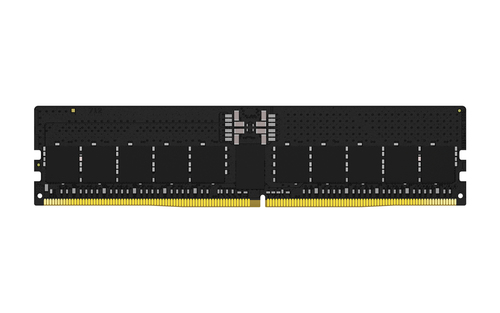

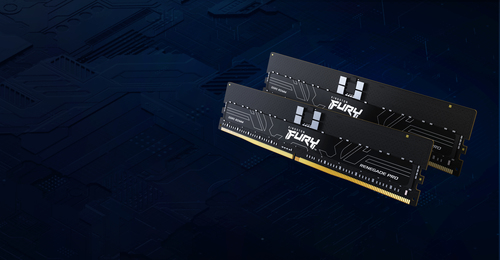

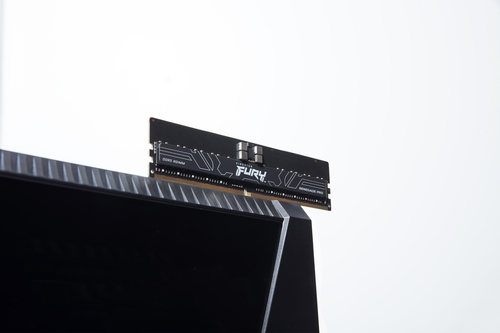

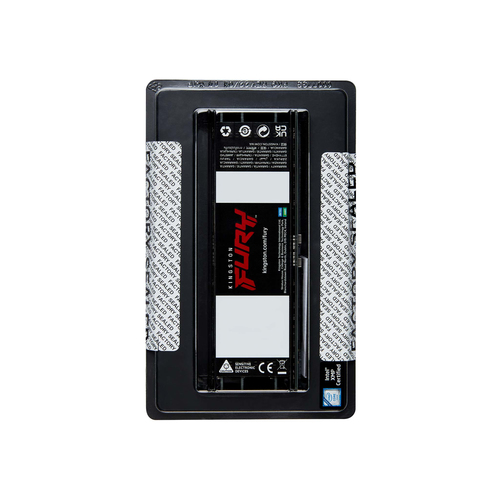

KF556R28RBEK4-64 - Memory & Processors by Kingston

Overclockable ECC Registered DIMMWith over three decades of building reliable, high-quality memory modules for the world’s largest data centers, Kingston proudly introduces a new line of overclockable server-class memory, Kingston FURY™ Renegade Pro DDR5 RDIMM. To meet the computing demands of next-gen Intel® or AMD workstation and high-end desktop platforms requiring the use of DDR5 Registered DIMMs, Kingston FURY Renegade Pro DDR5 RDIMM provides creators, engineers and data science professionals with high-performance memory normally reserved for gamers, without sacrificing the data integrity features and superior quality grade of Registered DIMMs. DDR5 Registered DIMMs support ECC, capable of detecting and correcting multi-bit errors. This is in addition to on-die ECC, featured on all DDR5 DRAM components, which performs single-bit error detection and correction to mitigate system lockups and data corruption.Power users can automatically get the most out of their systems with Kingston FURY Renegade Pro DDR5 RDIMM, or choose one of the built-in profiles for optimum timings, speeds and voltage. Available in single-module capacities up to 32GB, kits of 4 up to 128GB and kits of 8 up to 256GB. Overclocking with ECCMaintain data integrity while pushing the limits of DDR5 performance. Increased efficiencyWith double the banks and burst lengths, keep up with the demands of the latest programs and applications with improved efficiency and lower latencies.Intel® XMP 3.0 certifiedSelect one of the built-in profiles to maximise memory performance with advanced pre-optimised timings, speeds and voltage.AMD EXPO™ CertifiedAMD EXPO (Extended Profiles for Overclocking) Certified modules include Intel XMP 3.0 profiles, enabling compatibility with the platform of your choice.Plug N Play*Kingston FURY Renegade Pro DDR5 RDIMM modules automatically overclock to the highest listed speed.

ON ORDER

RRP Price €500.86

Specifications

Features

Buffered memory type
Registered (buffered)
On-Die ECC
Yes
CAS latency
28
Internal memory
64 GB
Memory layout (modules x size)
4 x 16 GB
Internal memory type
DDR5
Memory data transfer rate
5600 MT/s
Component for
PC/Server
Memory form factor
288-pin DIMM
ECC
Yes
Memory channels
Dual-channel
Memory ranking
1
Memory voltage
1.35 V
Module configuration
2048M x 80
Row cycle time
48 ns
Refresh row cycle time
295 ns
Row active time
32 ns
AMD Extended Profiles for Overclocking (EXPO)
Yes
AMD Extended Profiles for Overclocking (EXPO) version
1.1
SPD profile
Yes
Programming power voltage (VPP)
1.8 V
Country of origin
China, Taiwan
Product colour
Black
Cooling type
Heatsink
Lead plating
Gold
JEDEC standard
Yes

Operational conditions

Operating temperature (T-T)
0 - 95 °C
Storage temperature (T-T)
-55 - 100 °C

Technical details

Compliance certificates
RoHS

Sustainability

Sustainability compliance
Yes
Doesn't contain
Halogen

Weight & dimensions

Width
3.8 mm
Depth
133.3 mm
Height
31.2 mm
Weight
72.8 g

Packaging data

Package width
104.1 mm
Package depth
167.6 mm
Package height
35.6 mm
Package weight
109.34 g

Logistics data

Master (outer) case width
207 mm
Master (outer) case length
469.9 mm
Master (outer) case height
105.4 mm
Master (outer) case gross weight
1.45 kg
Products per master (outer) case
10 pc(s)
