MAX-TST-PRO-DUO-LTEA-Q-T-PRM - Routers by Peplink

Wait no more, experience the new fastWhy settle for less advanced Wi-Fi, throughput and SpeedFusion speed?Experience it all, but faster with Wi-Fi 6!It’s got the power!Achieve non-stop power for fixed deployments or on-the-go mobile deployments with duo USB-C power bank input ports. Equipped with a Micro-Fit power connector to secure your power source, ensuring that your device remains powered on with no outage. Believe it’s got the power!Elevate the way you manage SIMsElevate the way you manage SIMs with eSIM support and sophisticated hardware like the SIM Injector. Manage SIMs more efficiently from anywhere, at any time.Safeguard your applicationsMAX Transit Duo Pro offers flexibility in the ways you can create SpeedFusion VPN tunnels, enabling 256-bit AES Encryption to ensure your applications are kept protected, so that you can browse with confidence.Running applications just got easier!Want to run third party applications directly with your MAX Transit Duo Pro?Well now you can! With edge computing Docker and Python*, the possibilities are endless!Bundle OfferReceive a complimentary SpeedFusion Connect Pack with the purchase of any additional PrimeCare plan (available in 2 or 4 year options).^ The SFC Pack includes SFC Protect and a bucket of SFC LTE/5G with global access.

24 IN STOCK

RRP Price €1,109.29

Specifications

WAN connection

Ethernet WAN
Yes

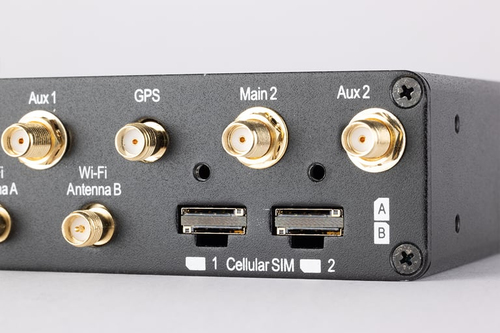

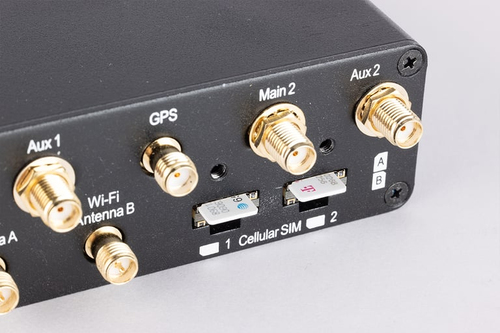

SIM card slot
Yes
3G/4G USB modem compatibility
Yes
WAN connection type
RJ-45

Wireless LAN features

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)
1000 Mbit/s
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Network

Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
GPS compatibility
Yes

Mobile network

Mobile network generation
4G
Dual SIM support
Yes
4G standard
LTE

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
USB port
Yes
Terminal block port
Yes
DC-in jack
Yes

Management features

Web-based management
Yes
MIMO
Yes

Security

Security algorithms
256-bit AES

Design

Product colour
Black
LED indicators
Status, WLAN
Product type
Industrial router

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Packaging content

AC adapter included
Yes
Antenna included
Yes
Mounting kit
Yes
Packaging content

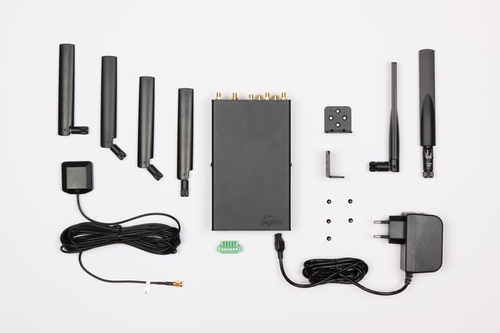

1x Transit Duo Pro 4x LTE Antennas (ACW-234) 2x Wi-Fi Dual Band Antennas (ACW-341) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4 Pin Power Supply (ACW-632) 1x 6 Pin Terminal Block Connector 1 Pair of Mounting Brackets (ACW-724)

Antenna

Antenna design
External

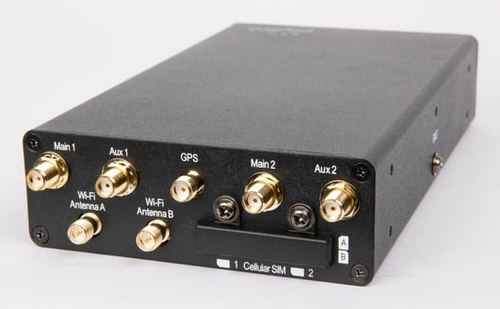

Antenna connector type
SMA/RP-SMA
Antennas quantity
7
Detachable antenna(s)
Yes

Features

Number of simultaneously connected devices (max)
150

Power

Power source type
DC, USB
AC input voltage
100 - 240 V
Output voltage
12 V
Power consumption (typical)
10 W

Operational conditions

Operating temperature (T-T)
-40 - 65 °C
Operating relative humidity (H-H)
15 - 95%

Weight & dimensions

Width
97 mm
Depth
160 mm
Height
3.5 mm
Weight
730 g

Other features

Operating temperature (T-T)
-40 - 149 °F
USB connector type
USB Type-C
Upstream data rate
600 Mbit/s
Downstream data rate
150 Mbit/s

Accessories

License
