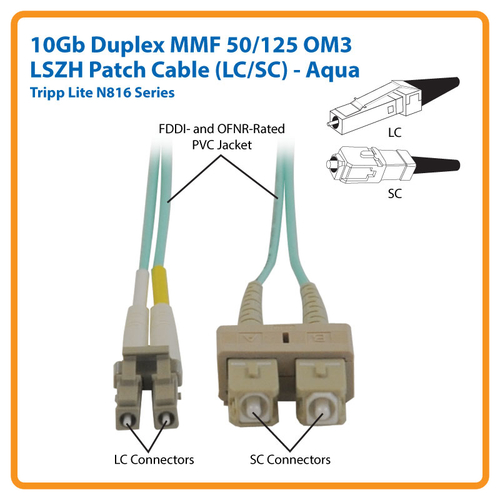

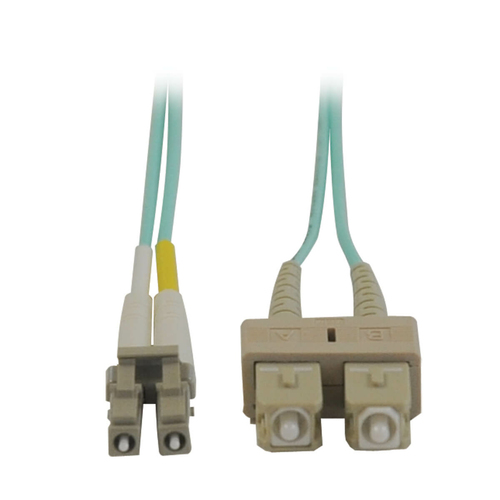

Tripp Lite N816-03M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/SC) - Aqua, 3M (10 ft.)

Tripp Lite N816-03M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/SC) - Aqua, 3M (10 ft.)

Name: Tripp Lite N816-03M 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/SC) - Aqua, 3M (10 ft.)
Brand: Eaton
SKU: N816-03M
Price: 17.89 EUR
Availability: OutOfStock

10gb Ethernet speed to 300 meters @850nm, OM3 rated
Use with VCSEL and LED laser light sources
High-Speed, High-Bandwidth, Low-Cost
Backward compatible with legacy LAN's
Ideal for Fibre Channel (SAN) applications
IEEE 802.3ae and TIA LOMMF compliant

ON ORDER

SKU: N816-03M

Manufacturer: Eaton Eaton

RRP Price €17.89

Specifications

Features

Cable length

3 m

Fibre optic type

OM3

Connector 1

2x SC

Connector 2

2x LC

Connector 1 gender

Male

Connector 2 gender

Male

Product colour

Beige, Turquoise

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Data transfer rate

100 Gbit/s

Jacket material

Low smoke zero halogen (LSZH)

Certificates

Compliance certificates

RoHS

Weight & dimensions

Weight

50 g

Packaging data

Package width

152.4 mm

Package depth

203.2 mm

Package height

6.4 mm

Package weight

50 g

Logistics data

Master (outer) case GTIN (EAN/UPC)

10037332124835

Country of origin

China

Master (outer) case width

149.9 mm

Harmonized System (HS) code

8544.70.0000

Master (outer) case length

185.4 mm

Master (outer) case height

101.6 mm

Master (outer) case gross weight

450 g

Products per master (outer) case

10 pc(s)

Other features

Core / cladding diameter

50/125 µm

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.05 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
