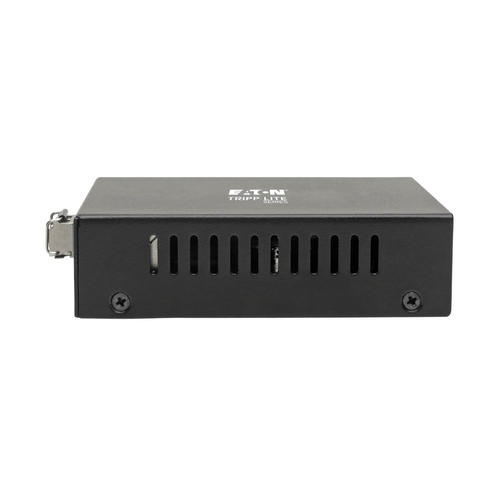

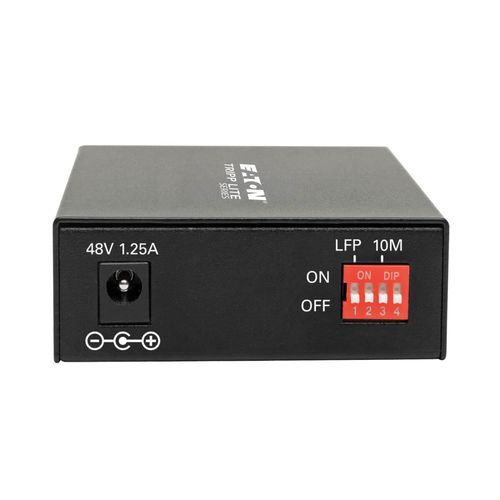

Tripp Lite N785-INT-PLCMM1 Gigabit Multimode Fiber to Ethernet Media Converter, PoE+ - International Power Cables, 10/100/1000 LC, 850 nm, 550 m (1,804 ft.)

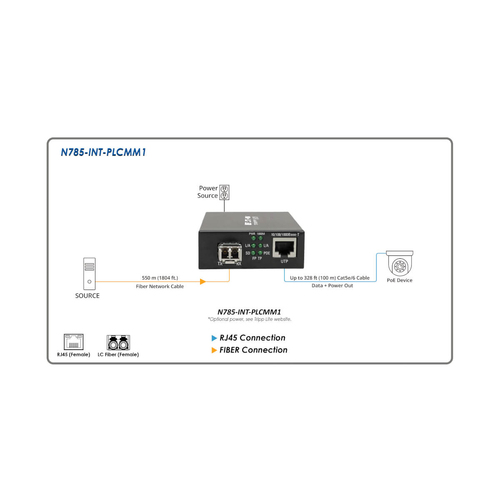

Extends Power and Data to a PoE+ Device up to 550 m via LC Multimode Fiber Cable
This economical unit converts a multimode fiber optic signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet up to 550 meters (1,804 feet) using Cat5e/6 cabling. The N785-INT-PLCMM1 is ideal for providing power and data to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices
PoE saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install PoE devices in areas far away from AC outlets, such as poles or ceilings.

Supports Auto-Sensing of Network Speed and Other Advanced Functions

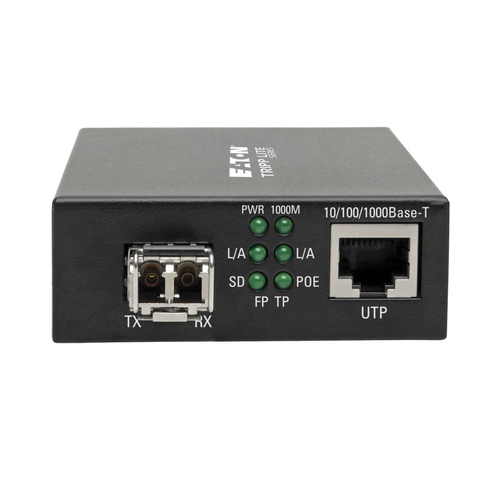

Monitoring and controlling your network nodes is easy with the N785-INT-PLCMM1’s advanced features, such as automatic network speed sensing, full/half-duplex auto-detection and automatic MDI/MDIX configuration. Six LEDs indicate the converter’s power, PoE, Ethernet network and fiber link statuses at a glance. Link fault pass through (LFP) monitors both the LC and RJ45 ports to ensure link status remains active.

Completely Plug-and-Play with No Additional Software Required for Connection

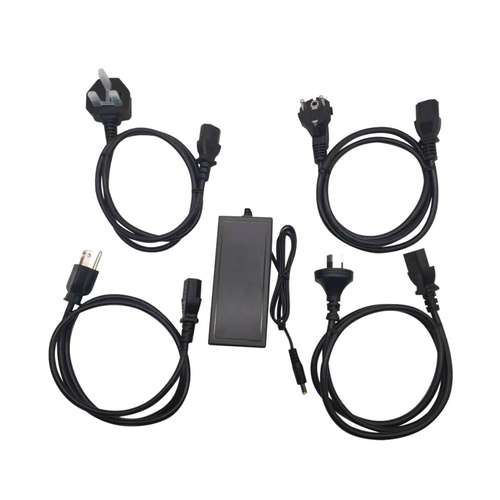

The compact metal converter is easy to install and set up with no software or drivers required. The included power supply comes with four international power cables (North America, Europe, United Kingdom, Australia) for connecting to an AC outlet with no computer or other signal source needed.

ON ORDER

SKU: N785-INT-PLCMM1

Manufacturer: Eaton Eaton

RRP Price €214.03

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3af, IEEE 802.3at
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
Duplex system
Full, Half

Performance

Maximum transfer distance
550 m
Wavelength
850 nm

Features

Internal
No
LED indicators
Yes
Product colour
Black

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
LC
Power over Ethernet (PoE) ports quantity
1
DC-in jack
Yes

Power

Input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
1.5 A
Output voltage
48 V
Output current
1.25 A
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
30 W
External power adapter
Yes

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Width
70 mm
Depth
95 mm
Height
25 mm

Operational conditions

Operating temperature (T-T)
-20 - 60 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 90%

Packaging content

AC adapter included
Yes
Manual
Yes

Packaging data

Package width
210.8 mm
Package depth
248.9 mm
Package height
106.7 mm
Package weight
1.27 kg
Package type
Box

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA, WEEE

Logistics data

Country of origin
China
Master (outer) case GTIN (EAN/UPC)
10037332273052
Harmonized System (HS) code
8517.62.0090
Master (outer) case width
269.2 mm
Master (outer) case length
452.1 mm
Master (outer) case height
579.1 mm
Master (outer) case gross weight
13.5 kg
Products per master (outer) case
10 pc(s)
