Tripp Lite NGI-M04C2 4-Port Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, 2 GbE SFP Slots, -40° to 75°C, DIN Mount

Tripp Lite NGI-M04C2 4-Port Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, 2 GbE SFP Slots, -40° to 75°C, DIN Mount

Name: Tripp Lite NGI-M04C2 4-Port Managed Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, 2 GbE SFP Slots, -40° to 75°C, DIN Mount
Brand: Eaton
SKU: NGI-M04C2
Price: 355.48 EUR
Availability: OutOfStock

4-Port Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This space-saving switch transmits data over a Gigabit Ethernet network. Four auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-M04C2 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.

Protective Metal Housing Built to Last in Harsh Environments
The compact NGI-M04C2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation, government, military, oil and gas, mining and outdoor applications, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Monitors and Controls Devices via CLI and Web Configuration
The NGI-M04C2 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files.

Works with the Most Popular Web Browsers
The NGI-M04C2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-M04C2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Pre-Installed DIN Rail Clip Allows for Convenient Installation

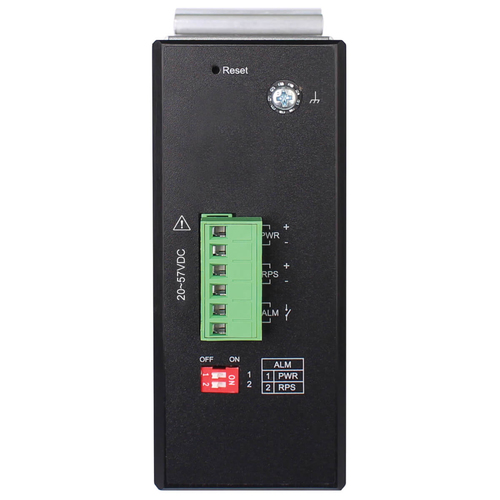

The device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures, the switch features redundant 6-pin 20–57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.

TAA-Compliant for GSA Schedule Purchases
The NGI-M04C2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

ON ORDER

SKU: NGI-M04C2

Manufacturer: Eaton Eaton

RRP Price €355.48

Specifications

Management features

Switch type

Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

SFP module slots quantity

Power connector

Terminal block (6-pin)

Network

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Copper ethernet cabling technology

10BASE-T, 100BASE-T, 1000BASE-T

Full duplex

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Auto-negotiation

Yes

MAC address auto-learning supported

Yes

Optical fiber

Fiber ethernet cabling technology

100BASE-FX, 1000Base-X

Data transmission

Switching capacity

12 Gbit/s

MAC address table

8000 entries

Jumbo frames support

Yes

Jumbo frames

10000

Security

DHCP features

DHCP snooping

Security algorithms

SNMP

Design

Product colour

Black

Housing material

Aluminium

Reset button

Yes

LED indicators

Yes

DIN rail mounting

Yes

Power

Power supply included

Yes

DC input voltage

20 - 57 V

Input current

0.35 A

Power consumption (typical)

10 W

Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 2000 m

Weight & dimensions

Width

50 mm

Depth

119.9 mm

Height

160 mm

Weight

760 g

Packaging data

Package width

232.9 mm

Package depth

182.9 mm

Package height

62 mm

Package weight

980 g

Technical details

Master (outer) case GTIN (EAN/UPC)

10037332266597

Certificates

Compliance certificates

CE, REACH, RoHS

Certification

FCC

Logistics data

Country of origin

Taiwan

Master (outer) case width

334 mm

Master (outer) case length

384 mm

Master (outer) case height

260.1 mm

Harmonized System (HS) code

8517.62.0020

Master (outer) case gross weight

9.97 kg

Products per master (outer) case

10 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.76 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
