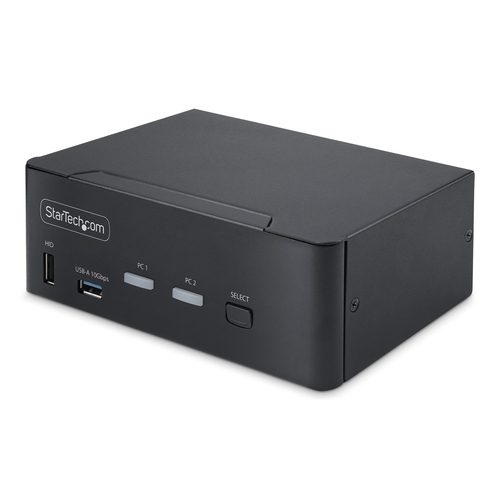

StarTech.com P2CDD143-KVM-SWITCH KVM switch Black

Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers

This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.

Dual-8K 60Hz Displays & USB 10Gbps Hub Ports

This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.

Fast Switching with USB Emulation

USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.

Switching Options

This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

The StarTech.com Advantage

1 IN STOCK

SKU: P2CDD143-KVM-SWITCH

Manufacturer: StarTech.com StarTech.com

RRP Price €683.53

Specifications

Ports & interfaces

Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
DisplayPort
DisplayPorts quantity
4
DisplayPort version
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Console ports
3.5mm headphone, DisplayPort, USB A
Console USB ports quantity
3
Console DisplayPorts ports quantity
2
USB hub
Yes
USB 2.0 ports quantity
1
Audio connections
Yes
Headphone outputs
3
DC-in jack
Yes

Performance

HD type
8K Ultra HD
Maximum resolution
7680 x 4320 pixels
Data transfer rate (max)
10 Gbit/s
Scan interval
3,8,15,30 s
High Dynamic Range (HDR) supported
Yes
Number of users
1 user(s)
Maximum refresh rate
144 Hz
Chipset
Genesys Logic - GL3590
Number of displays supported
2

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
168000 h

Display

Built-in display
No
On Screen Display (OSD)
No

Power

Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power consumption (typical)
36 W
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US

Sustainability

Compliance certificates
RoHS, Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
100 mm
Depth
160 mm
Height
60 mm
Weight
800 g

Packaging data

Package width
238 mm
Package depth
184 mm
Package height
89 mm
Package weight
1.4 kg

Packaging content

Cables included
USB Type-A to USB Type-C
Quick installation guide
Yes
Rubber feet
Yes

Other features

IP control
No

Accessories

License
