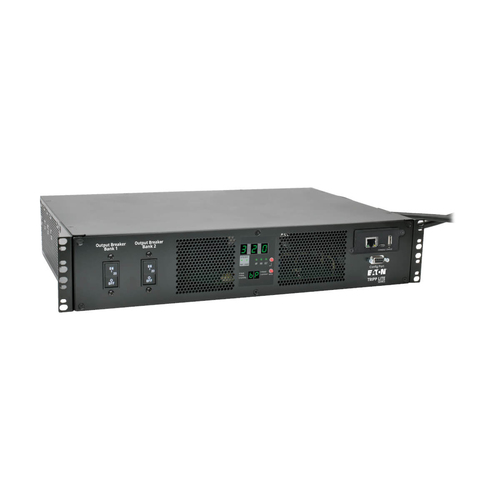

Tripp Lite PDUMH32HVATNET 7.7kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V IEC309 32A Blue Inputs, 16-C13 2-C19 Outlets, 2U, TAA

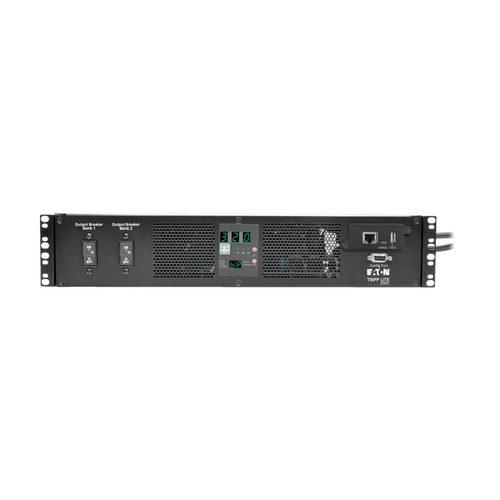

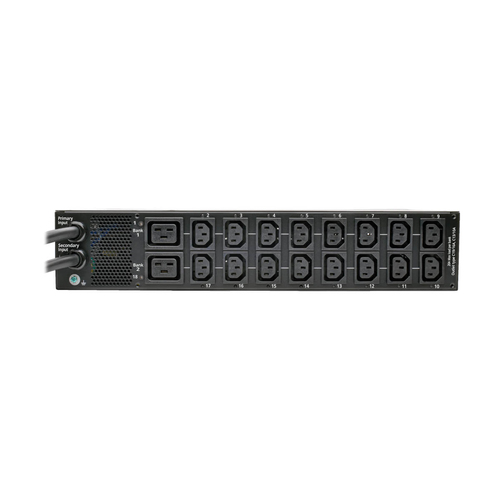

The PDUMH32HVATNET 7.7kW Single-Phase 200-240V Switched Automatic Transfer Switch / ATS PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.

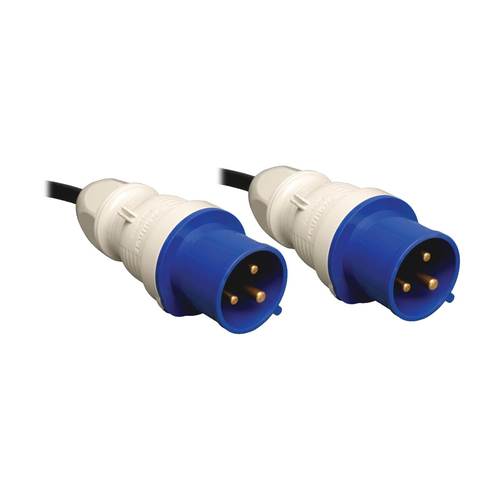

Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

ON ORDER

SKU: PDUMH32HVATNET

Manufacturer: Eaton Eaton

RRP Price €1,438.66

Specifications

Design

PDU types
Switched
Type
Single-phase
Rack capacity
2U
Mounting
Horizontal
Housing material
Metal
Product colour
Black

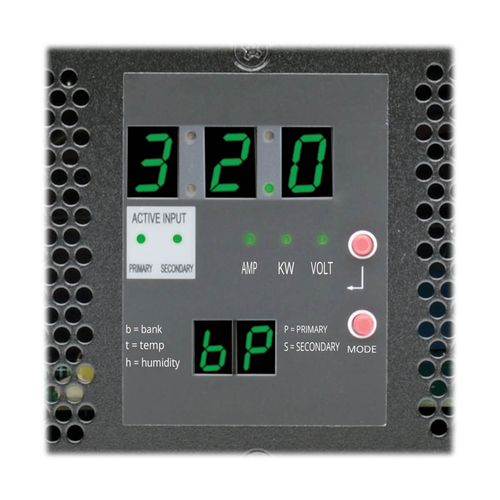

Display
LCD

Ports & interfaces

AC outlets quantity
18 AC outlet(s)
Power plug
IEC309
AC outlet types
C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports
1

Features

LED indicators
Yes
Cable length
3 m

Management features

Supported network protocols
HTTP, HTTPS, PowerAlert®, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP

Power

Nominal input voltage
200-240 V
AC input frequency
50 - 60 Hz
Maximum current
32 A
Nominal output voltage
200-240 V
Maximum power
7700 W

Certificates

Compliance certificates
RoHS

Operational conditions

Storage temperature (T-T)
-15 - 50 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
444 mm
Depth
317 mm
Height
88 mm
Weight
6.21 kg

Packaging content

Manual
Yes

Packaging data

Package weight
9.12 kg
Package width
424 mm
Package depth
505 mm
Package height
198 mm

Logistics data

Country of origin
Taiwan
Products per master (outer) case
1 pc(s)

Accessories

License
