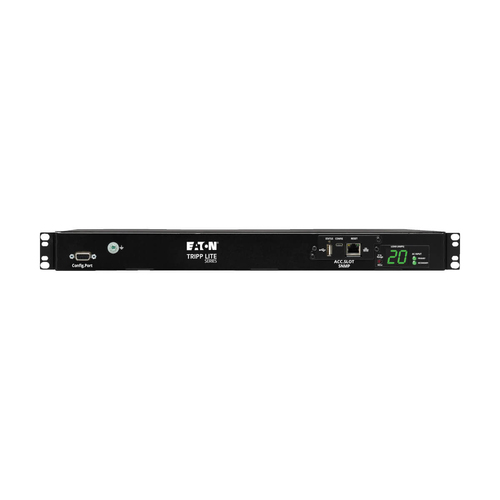

Tripp Lite PDUMH20HVATNET 3.8kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 & 2 C19 Outputs, 1U, TAA

Tripp Lite PDUMH20HVATNET 3.8kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 & 2 C19 Outputs, 1U, TAA

Name: Tripp Lite PDUMH20HVATNET 3.8kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V C20 Inlets, 8 C13 & 2 C19 Outputs, 1U, TAA
Brand: Eaton
SKU: PDUMH20HVATNET
Price: 1070.78 EUR
Availability: OutOfStock

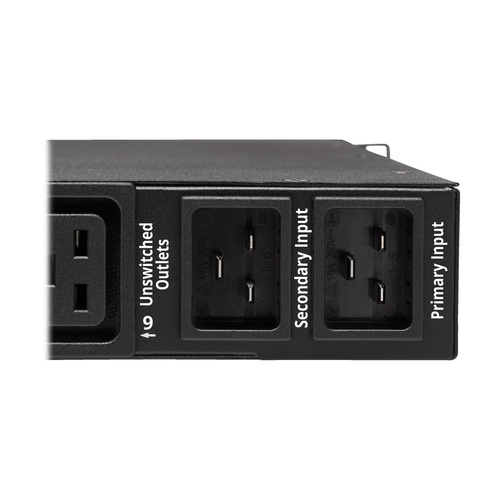

This Switched Automatic Transfer Switch / ATS PDU provides a redundant power option for single-corded network devices. Dual input cords support separate connection to primary and secondary power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. SmartOnline® series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

ON ORDER

SKU: PDUMH20HVATNET

Manufacturer: Eaton Eaton

RRP Price €1,070.78

Specifications

Design

PDU types

Switched

Rack capacity

Mounting

Horizontal

Housing material

Metal

Product colour

Black

Ports & interfaces

AC outlets quantity

10 AC outlet(s)

Power plug

C20 coupler

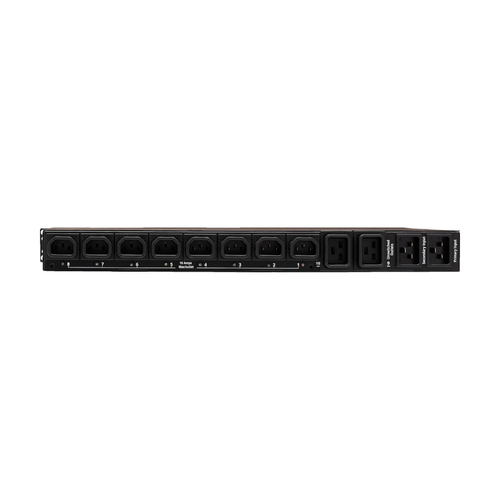

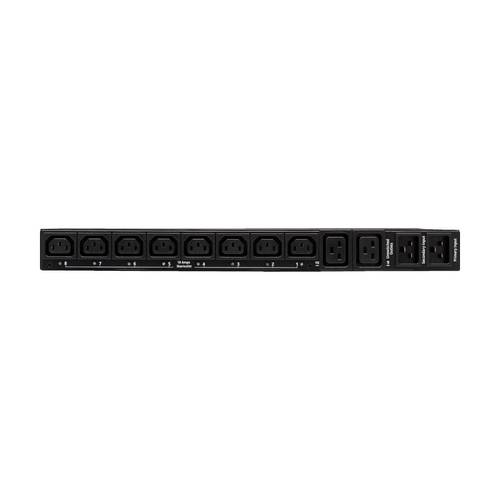

AC outlet types

C13 coupler, C19 coupler

Features

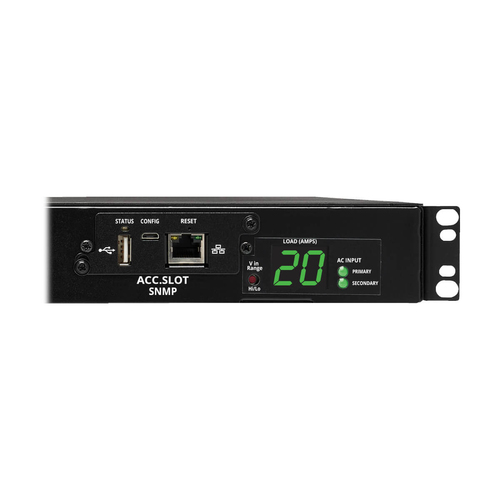

LED indicators

Yes

Cable length

3.6 m

Power

Nominal input voltage

200-240 V

AC input frequency

50 - 60 Hz

Maximum current

20 A

Nominal output voltage

200-240 V

Certificates

Compliance certificates

RoHS

Certification

UL 60950 (USA, Canada), CE (Europe), Class A (Emissions), NOM (Mexico)

Operational conditions

Storage temperature (T-T)

-15 - 50 °C

Operating altitude

0 - 3000 m

Weight & dimensions

Width

439 mm

Depth

376 mm

Height

44 mm

Weight

4.69 kg

Packaging data

Package weight

7.71 kg

Package width

528.3 mm

Package depth

594.4 mm

Package height

137.2 mm

Logistics data

Country of origin

Taiwan

Products per master (outer) case

1 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

4.69 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
