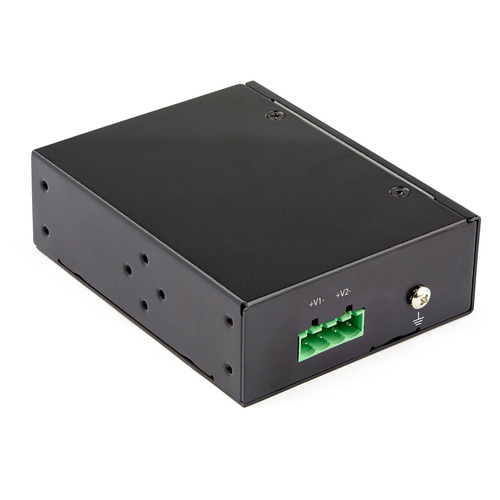

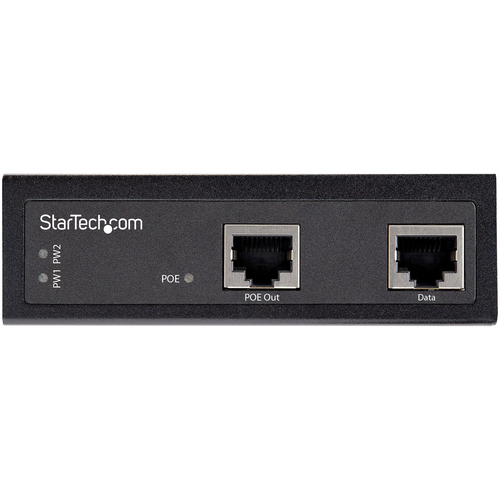

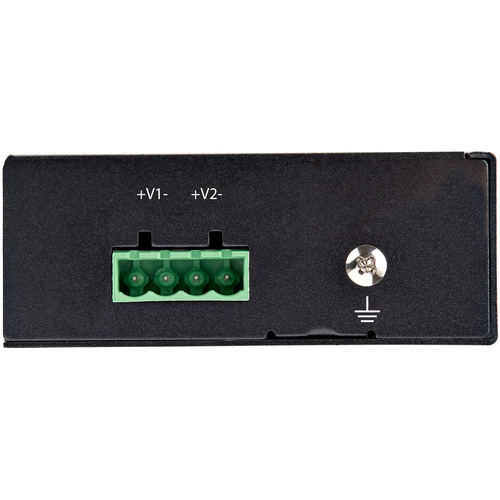

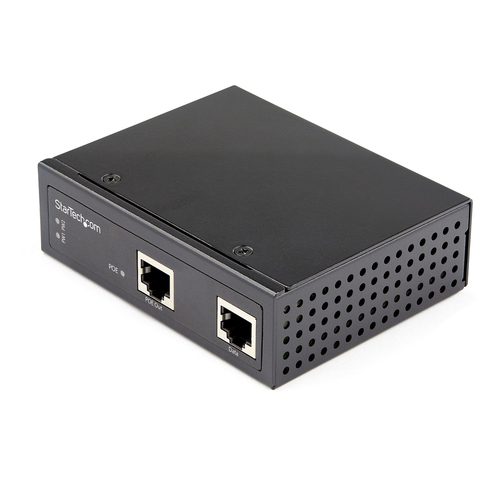

StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged

StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged

Name: StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Ad...
Brand: StarTech.com
SKU: POEINJ1G90W
Price: 342.46 EUR
Availability: OutOfStock

Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

Flexible Configurations for a Variety of Applications

Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.

90 Watt Power Budget

As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-fall: EN 60068-2-32

500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

The StarTech.com Advantage

ON ORDER

SKU: POEINJ1G90W

Manufacturer: StarTech.com

RRP Price €342.46

Specifications

Performance

Type

Network repeater

Maximum transfer distance

100 m

Data transfer rate

1000 Mbit/s

Chipset

Microsemi PD69204

Ethernet LAN data rates

10,100,1000 Mbit/s

Auto MDIX IEEE

Yes

Jumbo frames support

Yes

Auto-negotiation

Yes

Duplex system

Full

International Protection (IP) code

IP30

Mean time between failures (MTBF)

540891 h

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u

Ports & interfaces

Power over Ethernet (PoE) ports quantity

Terminal block port

Yes

Design

Product colour

Black

Housing material

Aluminium

LED indicators

Yes

Certification

CE, FCC, UL

Management features

Supported network protocols (IPv4)

CSMA/CD

Power

Power over Ethernet (PoE)

Yes

Total Power over Ethernet (PoE) budget

90 W

Power plug type

Type N

Power over Ethernet (PoE) voltage range

48 - 56 V

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

32 mm

Depth

82 mm

Height

104 mm

Weight

174 g

Packaging content

Quick start guide

Yes

Packaging data

Package width

211 mm

Package depth

162 mm

Package height

64 mm

Package weight

416 g

Certificates

Compliance certificates

CE, RoHS

Logistics data

Harmonized System (HS) code

85176990

Master (outer) case width

355 mm

Master (outer) case length

345 mm

Master (outer) case height

225 mm

Products per master (outer) case

10 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.174 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
