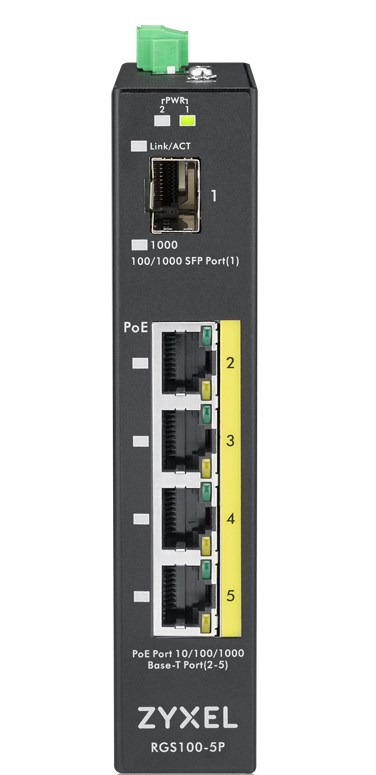

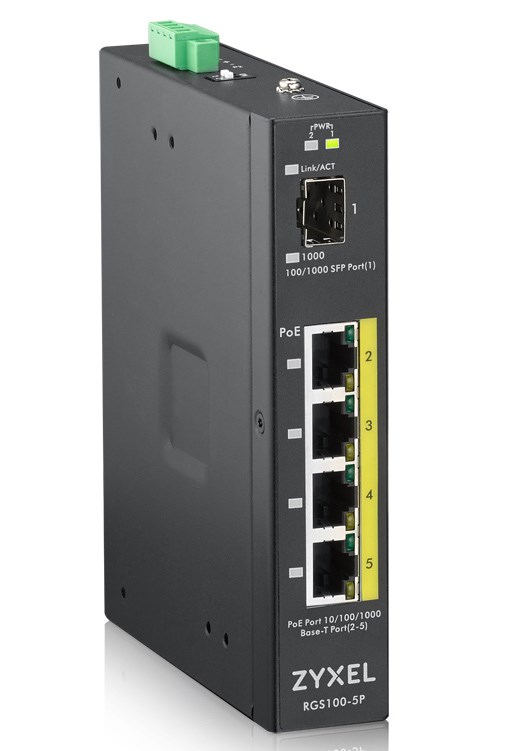

Zyxel RGS100-5P Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

5-port GbE Unmanaged PoE Switch

Along with the complete commercial product portfolio that offers customers with total network solutions, Zyxel introduces the new RGS100-5P PoE switch with ruggedized design concepts to meet stringent outdoor or harsh network deployment scenarios. The wide operating temperature range ensures reliable performance in adverse environments and expands RGS100-5P’s network availability in a wide variety of field applications.

Benefits

Rugged and reliable design for harsh environments
Designed with fanless and IP30 standard metal mechanism, the Zyxel RGS100-5P is able to to deliver excellent thermal controls and withstand dusty environments and can be installed on either a DIN rail or wall mount for efficient use of cabinet space. In addition, wide-ranging operating temperature tolerance allows RGS100-5P to be deployed across a spectrum of harsh environments. Equipped with dual DC power inputs, the RGS100-5P is capable of highavailability operation and resilience under the most demanding conditions. When switching is applied normally in outdoor settings, ESD (electrostatic discharge) and DC surge protection prevent the loss of business revenue and productivity due to damage or fatigue caused by power disturbances.

Trouble-free installation and easy extendibility
This rugged unmanaged PoE switch comes with four (4) 10/100/1000 Base-T copper PoE ports and one (1) 100/1000-Base-X SFP fiber interface. The switch also supports the 802.3at PoE plus standard, with each PoE port providing up to 30W of power to efficiently accommodate the most power-hungry devices. The fiber uplink can extend the network to long-distance nodes up to 40 km (43,744 yards) away for added flexibility.

Plug-and-Play deployments
The Zyxel RGS100-5P is able to negotiate the optimal data speed and activate duplex mode automatically with N-Way feature. It can also detect the type of connection to any Ethernet device with support for auto-MDI/MDI-X. Broadcast storm protection can easily be activated via DIP switch. Plug-and-play makes deploying the RGS100-5P hassle-free for any application or scenario.

ON ORDER

SKU: RGS100-5P-ZZ0101F

Manufacturer: Zyxel Zyxel

RRP Price €453.31

Specifications

Management features

Switch type
Unmanaged
Switch layer
L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
1
Fiber optic connector
SFP

Network

Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
MAC address auto-learning supported
Yes

Optical fiber

Fiber ethernet cabling technology
1000BASE-X
Transmission distance (max)
40 km

Data transmission

Switching capacity
10 Gbit/s
Throughput
7.44 Mpps
MAC address table
2000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
0.25 MB

Multicast features

Multicast support
Yes

Design

Rack mounting
Yes
Product colour
Black
Housing material
Metal
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes

Performance

Plug and Play
Yes
Mean time between failures (MTBF)
568430 h

Power

DC input voltage
12 - 58 V
Input voltage
12 - 58 V
Power consumption (max)
125 W
Power protection features
Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
120 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
42625 BTU/h

Weight & dimensions

Width
29.1 mm
Depth
107.3 mm
Height
139 mm
Weight
500 g

Packaging content

Rack mount kit
Yes

Packaging data

Wall mounting kit
Yes
Package width
70 mm
Package depth
177.8 mm
Package height
205 mm
Package weight
700 g

Logistics data

Harmonized System (HS) code
85176990
