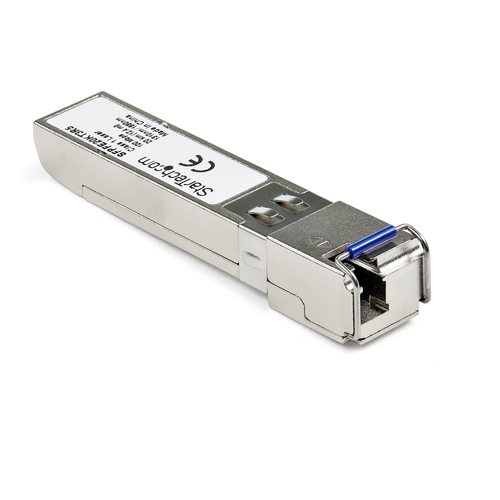

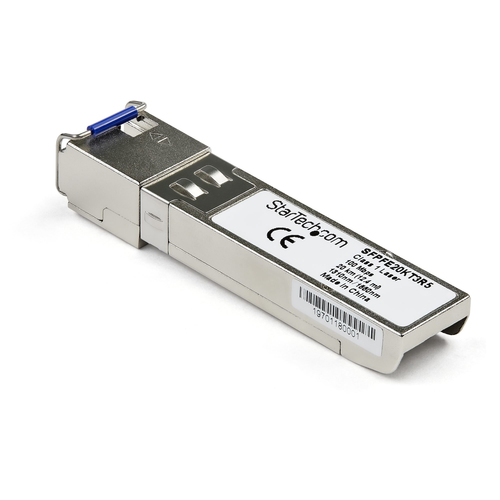

StarTech.com Juniper SFP-FE20KT15R13 Compatible SFP Module - 100BASE-BX-D - 100 MbE Ethernet BiDi Fiber (SMF)

100 Mbps | Single Mode Fiber | LC | 20 km (12.4 mi) | 3-Year Warranty

The SFPFE20KT5R3 is a Juniper SFP-GE10KT15R13 compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 100 MbE connectivity over fiber cable, for 100BASE-BX10-D compliant networks, with a maximum distance of up to 20 km (12.4 mi).

Technical Specifications:

• Wavelength: 1550nmTx/1310nmRx
• Maximum Data Transfer Rate: 100 Mbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 20 km (12.4 mi)
• MTBF: 3,713,222 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: SFPFE20KT5R3

Manufacturer: StarTech.com StarTech.com

RRP Price €260.04

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
100 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
Fiber optic connector
LC
Maximum transfer distance
20000 m
Tx wavelength (max)
1310 nm
Rx wavelength (max)
1550 nm
Digital Diagnostics Monitoring (DDM)
Yes

Features

Product colour
Silver
Hot-swap
Yes
Mean time between failures (MTBF)
3713222 h
Brand compatibility
Juniper
Compatible products
SFP-FE20KT15R13

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, UR, REACH

Weight & dimensions

Width
14 mm
Depth
65 mm
Height
12 mm
Weight
72 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
207 mm
Package depth
230 mm
Package height
15 mm
Package weight
80 g

Logistics data

Master (outer) case width
344 mm
Master (outer) case length
295 mm
Harmonized System (HS) code
85369010
Master (outer) case height
255 mm
Products per master (outer) case
1 pc(s)
