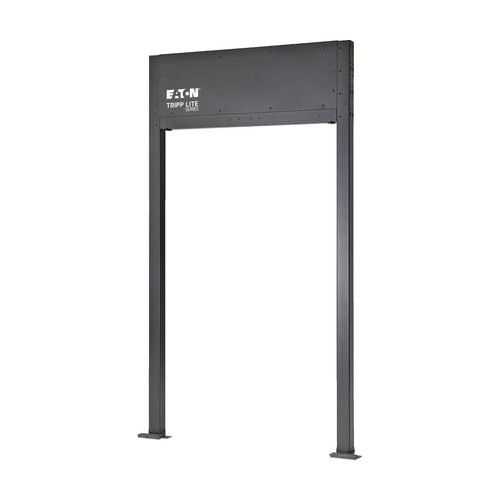

Tripp Lite Frame End Kit for Hot / Cold Aisle Containment System

Tripp Lite Frame End Kit for Hot / Cold Aisle Containment System

Name: Tripp Lite Frame End Kit for Hot / Cold Aisle Containment System
Brand: Eaton
SKU: SRCTMTFRM
Price: 824.44 EUR
Availability: OutOfStock

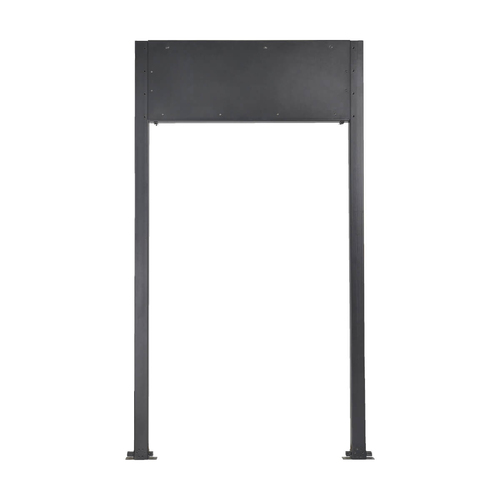

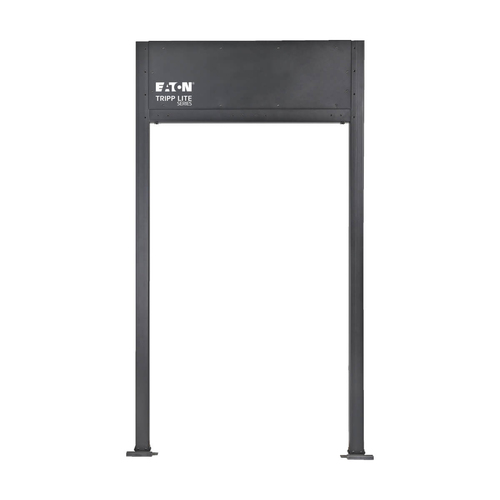

Heavy-Duty Steel Frame Supports Aisle Containment System
Two SmartRack® frame kits are required to create a semi-airtight aisle that keeps cold and hot air separated to increase efficiency in temperature control and distribution among the racks. The SRCTMTFRM must also be paired with SRCTMTTLBM Beam Kit and SRCTMTSDD Sliding Double-Door Kit (both sold separately). Note: the Aisle Containment System can be configured to be a self-standing unit (tied to racks on both ends) or can be tied directly to a wall at the end of an aisle, no longer needing a second SRCTMTSDD to seal the end.

Accommodates Various Server Rack Heights from 42U to 48U

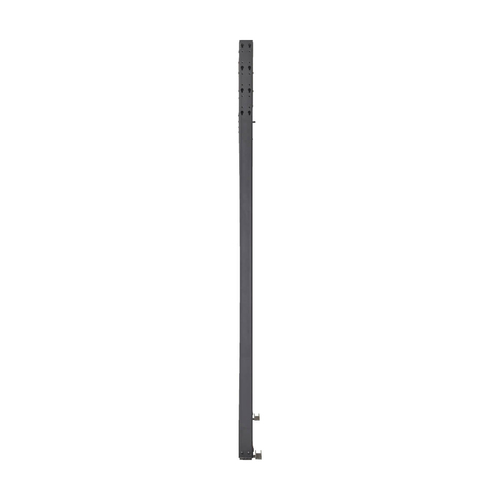

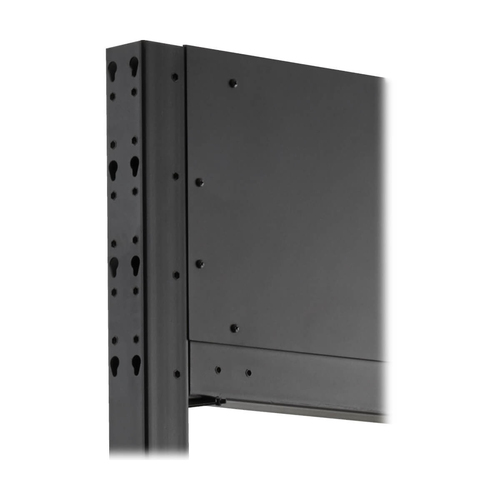

The steel frame with black powder-coated finish features pre-drilled mounting holes for the telescopic beam kit (SRCTMTTLBM), making installation efficient and effective, and pre-tapped holes for further fortification. Stabilizing brackets are provided at both feet, allowing the frame to be directly affixed to the floor of your data center. All necessary hardware is included for assembly. Multiple frame kits may be connected together for larger containment arrays.

Aisle Containment System Manages Airflow for More Cooling Efficiency

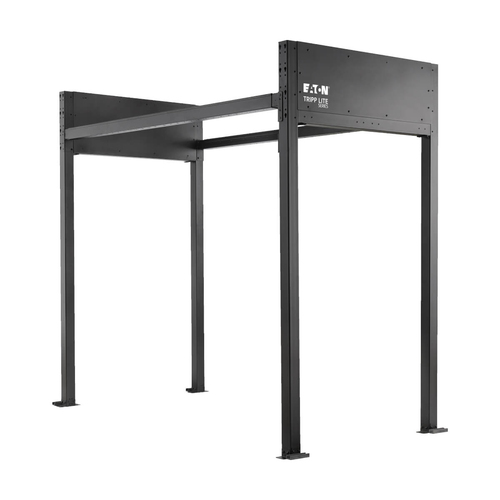

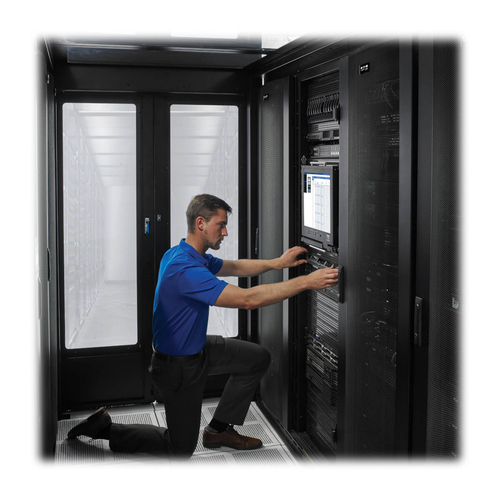

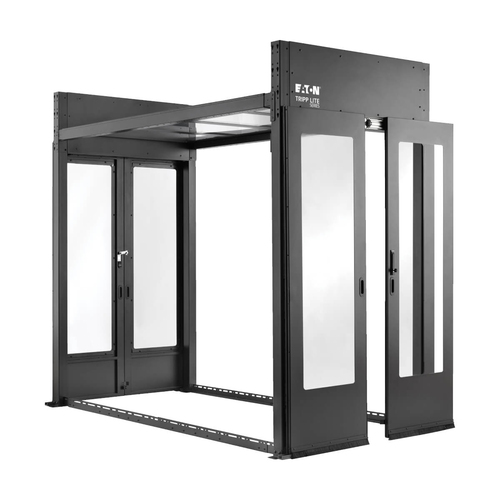

Upon installation in your data center or server room, the modular, easy-to-assemble Aisle Containment System contains the air in a hot aisle or cold aisle, essentially creating a room within the aisle, while still keeping the aisle accessible. No costly contractor or HVAC specialist is required to install the system, which can be expanded or adapted to meet your needs. Assorted frame kits, beam kits, sliding double-door kits, roof panel kits and adapter riser panel kits (all sold separately) are necessary to assemble a hot or cold Aisle Containment System that accommodates the dimensions of your aisle and the rack enclosures within it.

ON ORDER

SKU: SRCTMTFRM

Manufacturer: Eaton Eaton

RRP Price €824.44

Specifications

Features

Type

Rack frame

Product colour

Black

Country of origin

China

Weight & dimensions

Width

1332.5 mm

Depth

81 mm

Height

2427.5 mm

Weight

45.1 kg

Packaging data

Quantity per pack

1 pc(s)

Package width

2525 mm

Package depth

555 mm

Package height

264.9 mm

Package weight

56.5 kg

Packaging content

Mounting kit

Yes

Quick installation guide

Yes

Technical details

Compliance certificates

RoHS

Logistics data

Master (outer) case width

2525 mm

Master (outer) case length

555 mm

Master (outer) case height

264.9 mm

Master (outer) case gross weight

56.5 kg

Products per master (outer) case

1 pc(s)

Harmonized System (HS) code

7308.30.5050

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

45.13 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Zebra TC52X-HC handheld mobile computer 12.7 cm (5") 1920 x 1080 pixels Touchscreen 249 g Black, White Accessories

The TC52x-HC Touch Computer builds on the highly successful TC52-HC, adding powerful new features that improve patient outcomes by improving workflows for healthcare workers. The best-in-class blazing 2.45 GHz processor and new UFS memory provide plenty of power to run all of your voice and data applications — simultaneously. See more and scroll less with a Full HD display. A hot-swappable battery keeps healthcare workers up and running, every minute of every shift. Design improvements make the audio grills virtually clog-proof. A red alert button can be configured to call the security desk or launch an application in emergency or duress situations. Camera improvements enable the reliable capture of high quality photos — even in low light conditions. A new scanner takes performance to a new high, complete with healthcare safe illumination LEDs and aimer colors. And with FIPS 140-2 and TAA certification, the TC52x-HC is ideal for all hospitals, including government facilities. Give your healthcare workers the features they need to deliver the ultimate quality of care with the TC52x-HC, only from Zebra.The ultimate data capture experienceExceptional touchscreen technologyThe new 5-inch Full HD display delivers maximum screen space, resolution and readability. Text and graphics are sharper. The 600 nit display is easy to read in any light. And the easy and familiar multi-touch operation works when wet, with a gloved finger or a stylus.First-time every time flawless 1D/2D barcode captureThe new integrated SE4720 enterprise-class imager offers global shutter technology and PRZM Intelligent Imaging, delivering lightning fast capture of barcodes in virtually any condition — even on curved or uneven surfaces like medicine vials and bags. And the white illumination LEDs and green aimer are ideal in healthcare, making it easy to scan barcodes on color-coded specimen trays and biopsy cassettes.Improve the quality of care with high-resolution photos and videosThe 13 MP rear color camera with Phase Detection Autofocus (PDAF) enables the easy capture of sharp, detailed photos to document wound condition and more. And remote video conferencing via the front-facing 5 MP camera enables Telehealth consultations, better patient monitoring and better collaboration with colleagues, improving care quality.Capture Unique Device Identifier (UDI) barcodes right out of the box to improve patient safety — and inventory and billing accuracyWith the built-in UDI mode, staff can just point and scan all the barcodes on an item, and the TC52x-HC automatically identifies and captures all UDI codes. Recalled medical equipment is immediately identified, protecting patient safety. All charges are captured accurately. And better visibility ensures timely replacement and better management of inventory.

€1,971.46

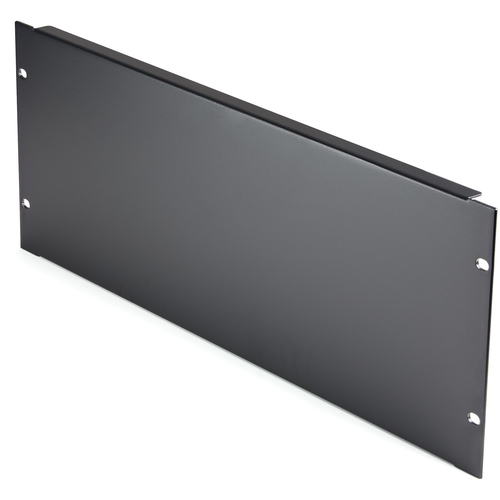

StarTech.com 4U Blank Panel for 19 inch Rack, Enclosures & Cabinets, Rack Mount Blanking Panel for Server/Network Racks, 4RU Rack Filler, Solid Panel, Steel Accessories

Improve the organization and appearance of your rack in seconds with a solid blanking panelThis 4U blanking panel helps improve the appearance and airflow of your EIA-310 compliant 19 in. server rack.Professional LookThis solid blank rack panel creates a clean and professional look by covering empty rack spaces and visible cables, for a more organized server room.Improve AirflowWhen used to cover unused rack units, this 4RU panel can help to control airflow and in certain applications, control internal temperatures by reducing the recirculation of hot air within the rack, created when unused spaces are left uncovered.The StarTech.com Advantage

€21.53

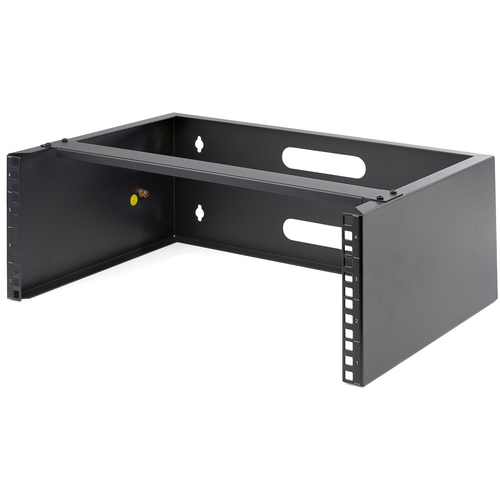

StarTech.com 4U Wall Mount Network Rack - 14 Inch Deep (Low Profile) - 19" Patch Panel Bracket for Shallow Server and IT Equipment, Network Switches - 44lbs/20kg Weight Capacity, Black Accessories

Mount networking equipment and shallow rackmount devices with this 4U wall-mountable rackThe 4U 13.78in. (35cm) deep wall-mounting bracket for patch panels and network equipment, delivers a sturdy and dependable equipment storage option, allowing you to wall mount data/IT equipment up to ta total of 44lbs. (20kg). It's the perfect solution for areas where space is at a premium like small office/home office environments or spaces with limited server room because it doesn't take up any floor space.Sturdy Construction & Easy InstallationThe mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in rack equipment to a wall, and to organize cabling or equipment in your network closet, wiring closet, back office or IDF. The sturdy steel construction is especially helpful for durability in harsh environments. The open frame wall rack's mounting holes are positioned 16in. apart, matching typical drywall construction framework to ensure simple and secure wall-stud anchoring.Includes HardwareCage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware. The bracket is ideal for mounting equipment 12" or less in depth to ensure there is room for cabling.WALLMOUNT4 is backed by a StarTech.com lifetime warranty and free lifetime technical support.The StarTech.com Advantage

€55.13

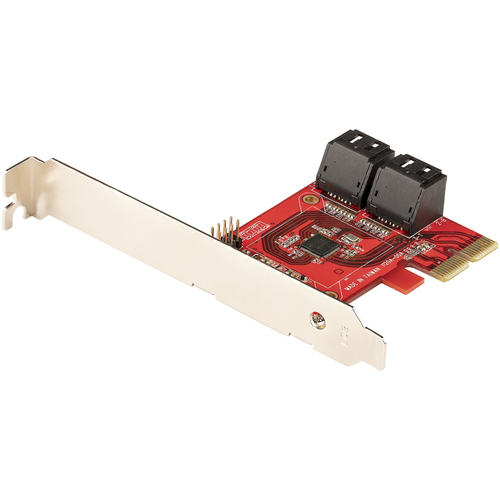

StarTech.com SATA PCIe Card - 4 Port PCIe SATA Expansion Card - 6Gbps - Low Profile Bracket - Stacked SATA Connectors - ASM1164 Non-Raid - PCI Express to SATA Converter Accessories

SATA III (6Gbps) | PCI Express 3.0 | PCIe x2 Slot | 4x SATA Connectors | 2-Year WarrantyThis 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.ASM1164 to Deliver 4-Port SATA 6Gbps PerformanceFeaturing the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).Wide CompatibilityThe controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.Hassle-Free InstallationThe SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.4P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.The StarTech.com Advantage

€52.38

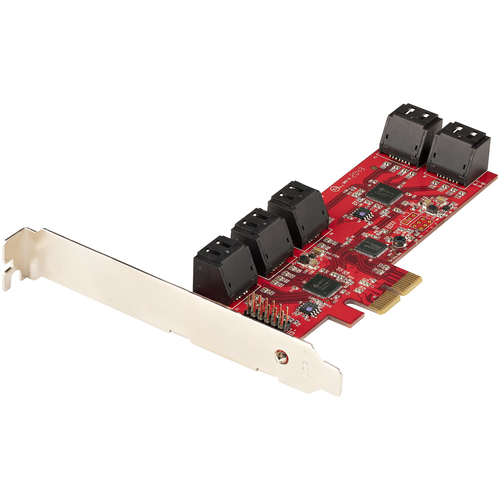

StarTech.com SATA PCIe Card - 10 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1062 Non-Raid - PCI Express to SATA Converter/Adapter Accessories

SATA III (6Gbps) | PCI Express 2.0 | PCIe x2 Slot | 10x SATA Connectors | 2-Year WarrantyThis 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.ASM1062 to Deliver 10-Port SATA 6Gbps PerformanceFeaturing the ASM1062 controller, this SATA card enables the connection of 10 high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via ten individual SATA ports located on the card (SATA cables sold separately).Wide CompatibilityThe controller card is widely supported across all popular operating system platforms including Windows (7,8,10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.Hassle-Free InstallationThe SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.10P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.The StarTech.com Advantage

€117.96

Digitus Network cabinet Unique series - 800x1200 mm (WxD) Accessories

The DIGITUS® network cabinets of the Unique series combine maximum stability with optimum flexibility in cable management, for the high demands of modern IT infrastructure with a wide variety of application scenarios.- High load capacity of the 483 mm (19") profile rails of up to 1200 kg- Swivel handle with profile half-cylinder lock incl. type 333 key on the front door- Vertical cable ducts with cable routing aids and cover installed in the front panel- Modular, openable base chassis with removable 19" blind panels- Flexible cable routing options thanks to generous cable inlets with brushes in the roof, base and rear- Roof is prepared to accommodate a fan unit and an attached, removable cover- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)The network cabinets in the Unique series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are side cable inlets with brushes at the top and bottom of the enclosure, as well as another at the rear of the base chassis. Rear brush strips above and below the rear door (from 26U) enable use in a wide range of application scenarios. Generous vertical cable ducts with cable routing aids and cover, installed in the front (from 800 mm enclosure width), perfectly round off the versatile features of the network enclosure. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.

€1,356.09

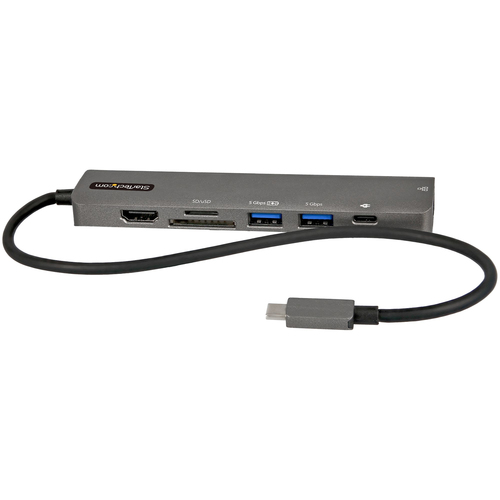

StarTech.com USB-C Multiport Adapter Hub, USB-C to 4K 60Hz HDMI, Gigabit Ethernet and 100W Laptop Charging for Macbook Pro / Air and Windows Accessories

4K 60Hz HDMI, 2x USB 5Gbps, GbE, SD/microSD, and 100W Power Delivery Pass-Through, all from one USB-C connectionIf you're working from a single USB-C port, this compact travel docking station delivers everything you need. It transforms your USB-C or Thunderbolt™ laptop into a fully connected, portable workstation, supporting 4K 60Hz HDMI™ (via DP 1.4), dual USB-A 5Gbps ports, Gigabit Ethernet, SD/microSD slots, and up to 100W USB Power Delivery 3.0 Pass-Through.Extra-Long CableThe attached 12" (30cm) cable gives you extra flexibility in tight or mobile setups. It reduces port strain on devices like 2-in-1s and tablets and works seamlessly with riser stands or adjustable desk environments.Universal CompatibilityEnjoy plug-and-play functionality across a broad range of USB-C and Thunderbolt devices including laptops, tablets, and even USB-C-enabled phones. It works reliably across all major operating systems including Windows, macOS, iPadOS, iOS, Android, and Chrome OS.Enterprise Management ToolsStarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.Visit www.StarTech.com/Connectivity-Tools to download the StarTech.com Connectivity Tools.Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery.

€44.75

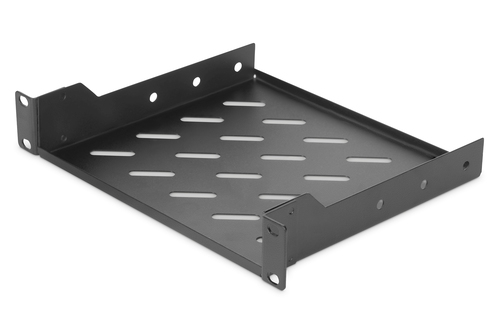

Digitus 254 mm (10") 1U shelf Accessories
