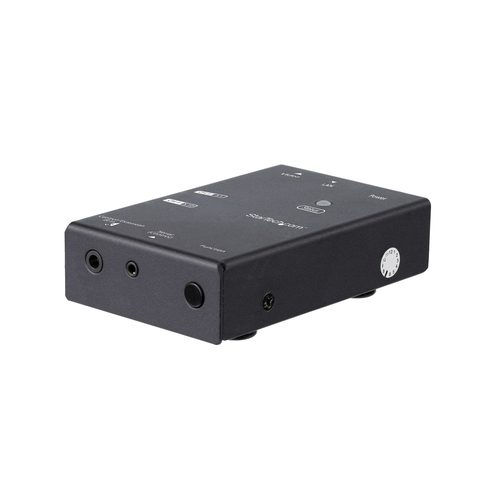

StarTech.com HDMI over IP Receiver for ST12MHDLNHK - 1080p

Broadcast your HDMI signal to multiple locations throughout your site, using your existing network infrastructure

The HDMI® over IP receiver works with the HDMI over IP Extender (ST12MHDLNHK) to distribute HDMI to an additional remote display. You can add multiple receivers (each sold separately) to easily distribute HDMI to multiple locations.

Customize your video distribution with a scalable solution

With additional receivers, you can scale your HDMI over IP kit installation to suit your needs. In a point-to-multipoint setup, you can route HDMI over IP to as many receivers as you need. For additional scalability, you can combine up to 99 different kits (ST12MHDLNHK) to create a multipoint-to-multipoint setup, where you can route different HDMI source signals to different displays. Mounting hardware and IR extenders are included for each transmitter and receiver to ensure tidy, professional installation and hassle-free remote operation.

Get brilliant video at HD 1080p

The receiver maintains your HD video signal, supporting resolutions up to 1080p. Maintaining your HD quality over IP makes it easy to distribute dynamic digital signage throughout your site to attract and engage customers.

Save your network bandwidth with video compression

Unlike some video-over-IP solutions that consume your bandwidth, this HDMI over IP solution uses video compression to distribute high-quality HDMI over your local area network, with minimal bandwidth requirements. Extending your HDMI using compression saves your network resources, avoiding the hassle of a separate video network.

The ST12MHDLNHR is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

ON ORDER

SKU: ST12MHDLNHR

Manufacturer: StarTech.com StarTech.com

RRP Price €281.36

Specifications

Features

Type
AV receiver
Maximum resolution
1920 x 1200 pixels
Cable types supported
Cat5e
Maximum transfer distance
15 m
Maximum refresh rate
60 Hz
Audio output channels
2.0 channels
LED indicators
Status
Supported video modes
1080p
Cable length
15.2 m
Material
Aluminium
Rack mounting
Yes
Daisy chain
Yes
Rubber feet
Yes
Product colour
Black
Certification
CE, REACH, FCC, TAA

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN
Yes
RJ-45 input ports
1
Number of HDMI outputs
1
USB ports quantity
1
USB connector type
Mini-USB B
Audio output
1

Power

AC input voltage
100 - 240 V
Operating voltage
5 V
Input current
0.3 A
Output current
1 A
External power adapter
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Storage relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
97 mm
Depth
130 mm
Height
24 mm
Weight
213 g

Packaging data

Package width
155 mm
Package depth
235 mm
Package height
65 mm
Package weight
800 g

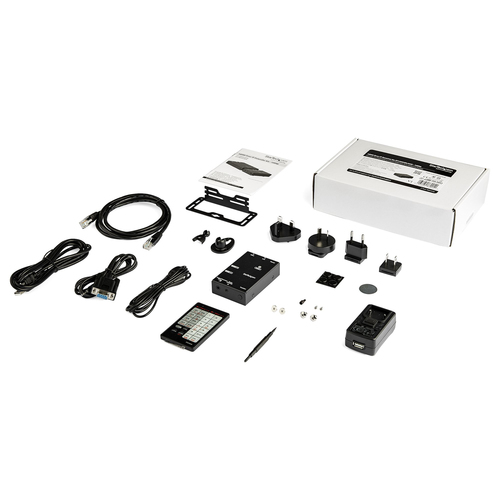

Packaging content

AC adapter included
Yes
Cables included
LAN (RJ-45), Serial, USB
Included power plug types
ANZ, EU, NA, UK
Manual
Yes
IR receiver included
Yes
Mounting kit
Yes

Technical details

Compliance certificates
RoHS

Logistics data

Master (outer) case width
325 mm
Master (outer) case length
410 mm
Master (outer) case height
265 mm
Products per master (outer) case
12 pc(s)
