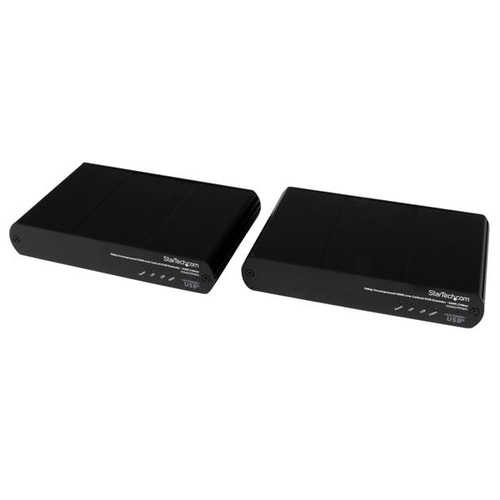

StarTech.com USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m)

StarTech.com USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m)

Name: StarTech.com USB HDMI over Cat 5e / Cat 6 KVM Console Extender w/ 1080p Uncompressed Video - 330ft (100m)
Brand: StarTech.com
SKU: SV565UTPHDU
Price: 1213.53 EUR
Availability: OutOfStock

The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.

A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.

This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Power a large HDMI display from a distance with uncompressed 1080p video
- Operate a single system or KVM switch remotely through KVM console extension
- Save time and money by extending over an existing Cat 5e / Cat 6 infrastructure cabling

ON ORDER

SKU: SV565UTPHDU

Manufacturer: StarTech.com

RRP Price €1,213.53

Specifications

Features

Type

AV transmitter & receiver

Connectivity technology

Wired

Maximum transfer distance

100 m

Rack mounting

Maximum digital resolution

1920 x 1200 pixels

Product colour

Black

Material

Aluminium

Plug and Play

Yes

Certification

CE, FCC, RoHS, UL

Transmitter

Transmitter video port type

HDMI

Transmitter local keyboard/mouse port type

USB

Receiver

Receiver local video port type

HDMI

Power

AC input voltage

100-240 V

AC input frequency

50 - 60 Hz

AC adapter output voltage

5 V

AC adapter output current

3 A

Power consumption (transmitter) (max)

15 W

Power consumption (receiver) (max)

15 W

Packaging data

Package width

214 mm

Package depth

375 mm

Package height

103 mm

Package weight

2.46 kg

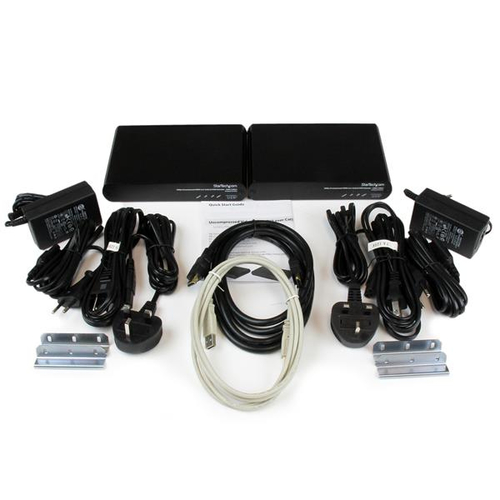

Packaging content

AC adapter included

Yes

Cables included

AC, HDMI, USB

Quick installation guide

Yes

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

20 - 80%

Technical details

Dimensions (WxDxH)

112 x 175 x 30 mm

Weight

847 g

Logistics data

Harmonized System (HS) code

84733080

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

2.46 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
