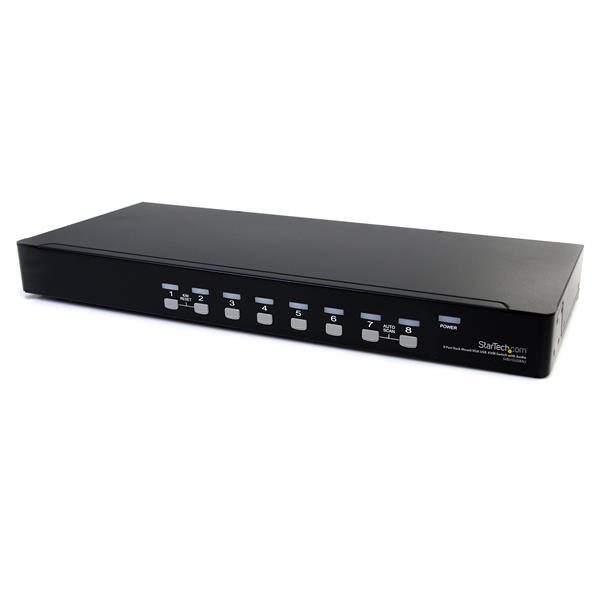

StarTech.com 8 Port Rackmount USB VGA KVM Switch w/ Audio (Audio Cables Included)

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (on-screen display) for added configuration options.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Rugged, rack mountable 1U metal chassis is ideal for any environment
- User friendly access through the OSD saves configuration time and frustration
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver

1 IN STOCK

SKU: SV831DUSBAU

Manufacturer: StarTech.com StarTech.com

RRP Price €589.02

Specifications

Ports & interfaces

Number of computers controlled
8
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
Console ports
3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity
2
USB 2.0 ports quantity
2
USB connector type
USB Type-A
Headphone outputs
8
Number of microphone inputs
8
DC-in jack
Yes

Performance

Maximum resolution
1920 x 1440 pixels
Maximum analog resolution
1920 x 1440 pixels
Plug and Play
Yes
Daisy chain
Yes
Number of users
1 user(s)

Design

Rack mounting
Yes
Rack capacity
1U
Product colour
Black
Housing material
Steel
Cascadable
Yes
LED indicators
Yes
Certification
CE, FCC, UL

Display

On Screen Display (OSD)
Yes

Power

Input voltage
110-240 V
Input current
1.8 A
Output voltage
12 V
Output current
4 A
Power consumption (typical)
48 W
Power plug type
Type M

Sustainability

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
540 mm
Depth
180 mm
Height
45 mm
Weight
2.6 kg

Packaging data

Package width
123 mm
Package depth
591 mm
Package height
264 mm
Package weight
4.7 kg

Packaging content

Cables included
AC
Manual
Yes
AC adapter included
Yes
Rubber feet
Yes

Other features

Audio support
Yes
IP control
No

Logistics data

Harmonized System (HS) code
85176200

Accessories

License
