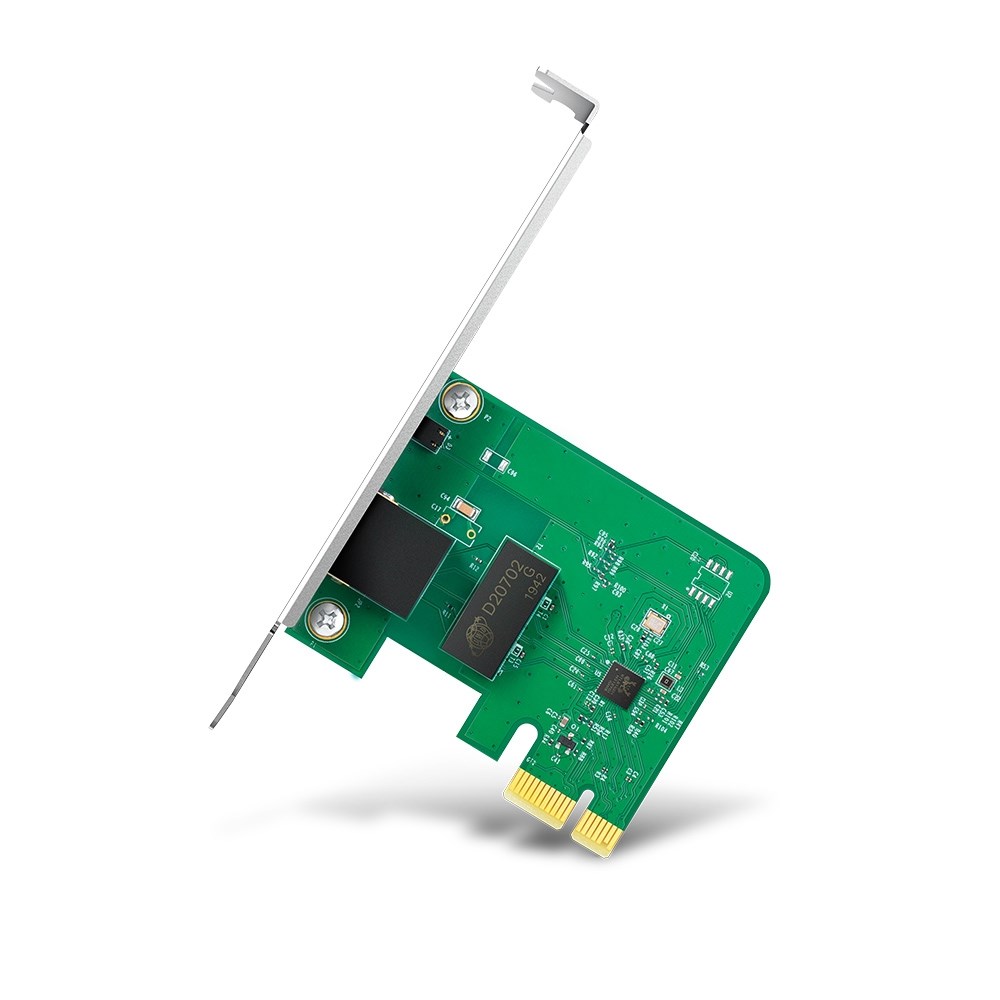

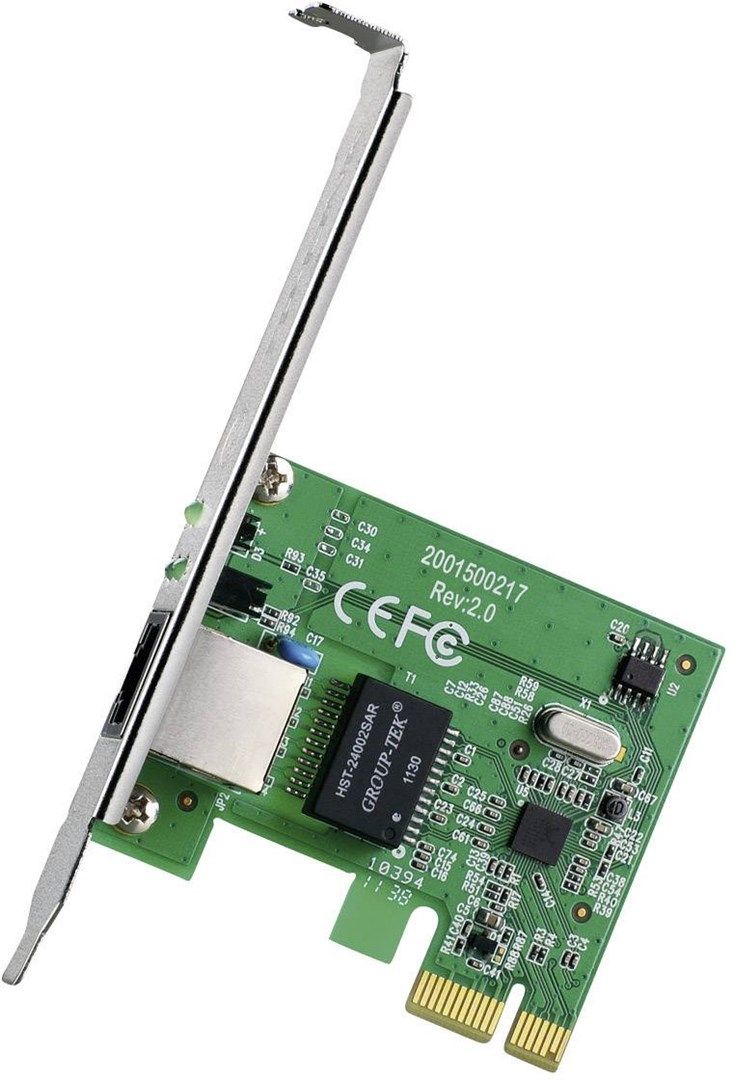

TP-Link TG-3468 network card Internal Ethernet 2000 Mbit/s

Operating System

Supports operating systems include Windows 10/8.1/8/7/Vista/XP

Low-Profile Bracket

In addition to standard bracket, low-profile bracket is also provided for mini tower computer case

Wake On LAN

Remotely power on/off your computer with WOL, good for centralized management

231 IN STOCK

SKU: TG-3468

Manufacturer: TP-Link TP-Link

RRP Price €13.16

Specifications

Ports & interfaces

Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Ethernet LAN (RJ-45) ports
1

Network

Maximum data transfer rate
2000 Mbit/s
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000BaseT(X)
Wake-on-LAN ready
Yes
Auto MDIX IEEE
Yes
Full duplex
Yes
Auto-negotiation
Yes
Quality of Service (QoS) support
Yes
VLAN tagging
Yes
Maximum operating distance
100 m

Design

Component for
PC
Product colour
Green, Grey
Internal
Yes
LED indicators
Status
Certification
FCC, BSMI, VCCI

System requirements

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Width
78.5 mm
Depth
120.8 mm
Height
21.5 mm

Packaging data

Package width
160 mm
Package depth
135 mm
Package height
30 mm
Package weight
100 g

Packaging content

Mounting brackets included
Yes
Resource CD
Yes
Quick installation guide
Yes

Technical details

Compliance certificates
BSMI, CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code
85176990

Other features

Flow control support
Yes
