Tripp Lite U223-004-IND 4-Port Industrial-Grade USB 2.0 Hub - 15 kV ESD Immunity, Metal Housing, Mountable

Tripp Lite U223-004-IND 4-Port Industrial-Grade USB 2.0 Hub - 15 kV ESD Immunity, Metal Housing, Mountable

Name: Tripp Lite U223-004-IND 4-Port Industrial-Grade USB 2.0 Hub - 15 kV ESD Immunity, Metal Housing, Mountable
Brand: Eaton
SKU: U223-004-IND
Price: 70.62 EUR
Availability: OutOfStock

Industrial-Grade USB 2.0 Hub Adds up to 4 USB Devices to Your Computer
This USB 2.0 hub with a heavy-duty all-metal housing connects as many as four USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. The hub supports USB 2.0 data transfer rates up to 480 Mbps and is backward compatible with USB 1.1 devices.

Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This four-port hub includes ESD protection to ±15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with overcurrent protection to safeguard your connected devices against damage and data loss from power surges.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

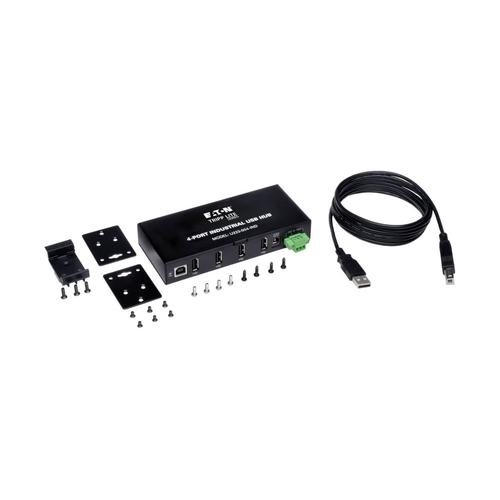

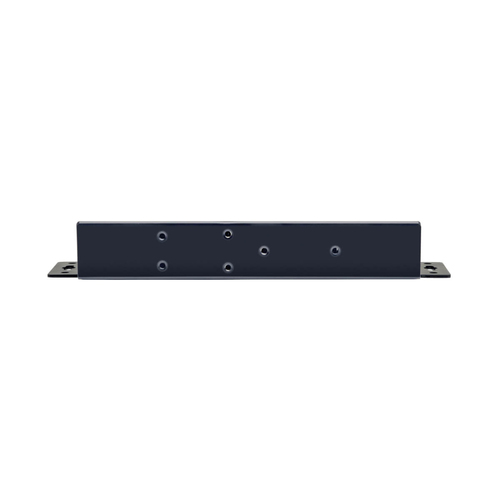

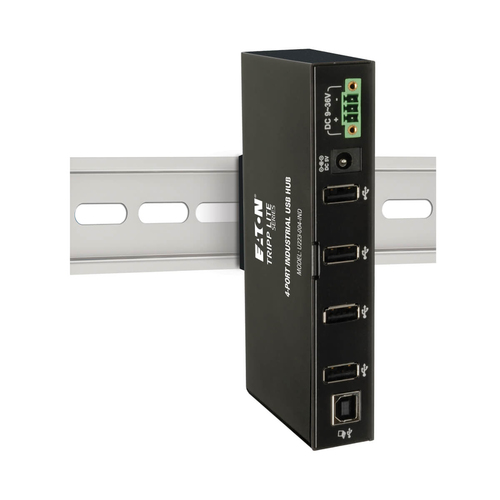

The U223-004-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 5V 2.5A DC power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.

ON ORDER

SKU: U223-004-IND

Manufacturer: Eaton Eaton

RRP Price €70.62

Specifications

Ports & interfaces

Host interface

USB 2.0

Hub interfaces

USB 2.0

USB 2.0 ports quantity

Ports quantity

DC-in jack

Yes

Features

Data transfer rate

480 Mbit/s

Product colour

Black

Housing material

Metal

Country of origin

China

Weight & dimensions

Width

139.7 mm

Depth

63.5 mm

Height

25.4 mm

Weight

320 g

Packaging data

Package width

160 mm

Package depth

231.1 mm

Package height

76.2 mm

Package weight

640 g

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Operating relative humidity (H-H)

5 - 95%

Logistics data

Master (outer) case width

342.9 mm

Master (outer) case length

480.1 mm

Master (outer) case height

386.1 mm

Master (outer) case gross weight

12 kg

Products per master (outer) case

20 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332174281

Harmonized System (HS) code

84719000

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.32 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
