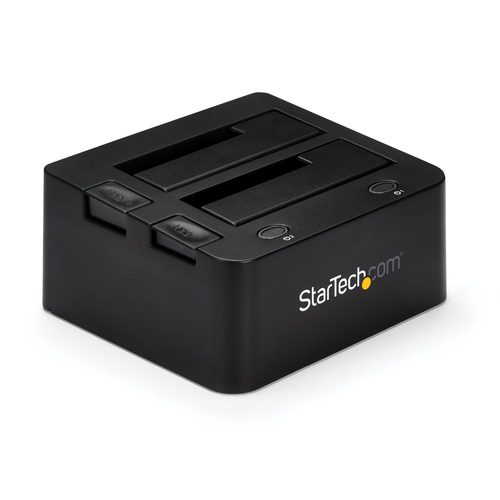

StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading

StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HDD Docking Station, Hot-Swap Hard Drive Bays, Top-Loading

Name: StarTech.com Dual-Bay USB 3.0 to SATA and IDE Hard Drive Docking Station, USB Hard Drive Dock, External 2.5/3.5" SATA I/II/III and IDE (40 pin) SSD/HD...
Brand: StarTech.com
SKU: UNIDOCKU33
Price: 101.33 EUR
Availability: InStock

External SSD/HDD Docking Station | USB 3.2 Gen 1 (5 Gbps) to SATA III and IDE

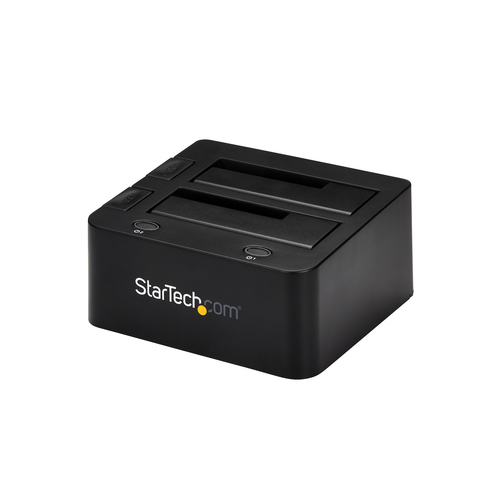

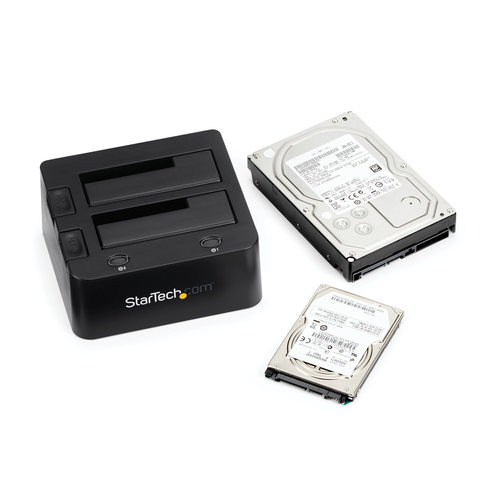

The UNIDOCKU33 USB 3.0 Universal HDD / SSD Dock enables you to instantly access your 2.5 or 3.5in IDE and SATA hard drives through two top loading drive slots, saving you the hassle of mounting the drives into a computer or external enclosure or tray.

Enhanced with UASP (USB Attached SCSI Protocol), this hard drive docking station lets you get the most out of the fastest drive technologies such as SATA III (6 Gbps), solid state drives (SSD) and hybrid, drives with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.

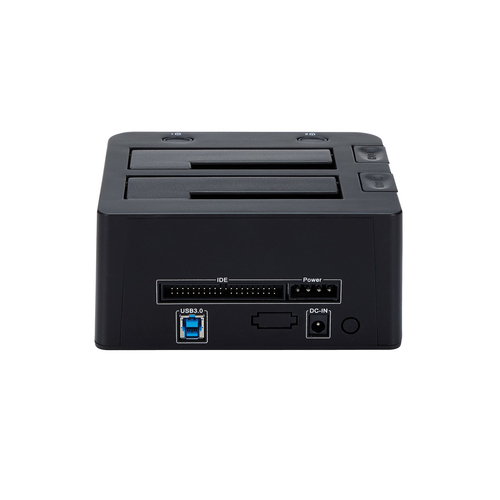

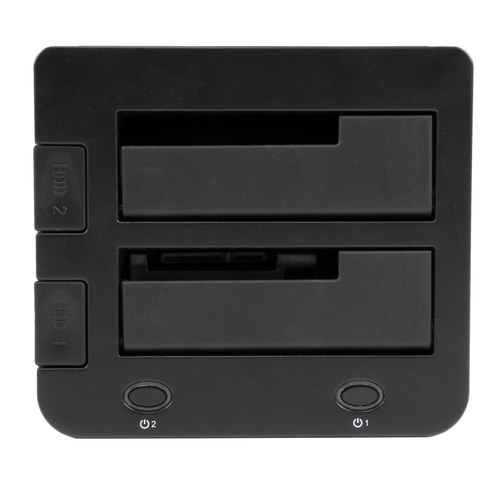

The slot-loading design holds the SATA and IDE drives upright inside the docks, neatly keeping them off the desk, for convenience and a clutter-free setup. For SATA drives, the HDD can be inserted and connected directly through the designated dock slot, while the IDE drive slot is conveniently positioned near the rear panel 40-pin data and LP4 power connections, making it easy to connect to the dock using the included IDE data and power cables.

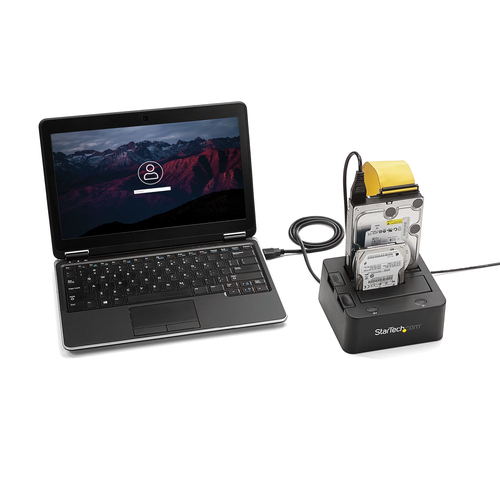

A single USB 3.0 connection to your host computer, enables access to both the IDE & SATA hard drives simultaneously - a convenient solution for migrating data from an IDE drive to a SATA drive or vice versa. The dock can also be used to greatly increase the storage and backup capabilities of your computer system with support for high capacity drives (tested with up to 6TB 3.5" and 2TB 2.5" drives).

The UNIDOCKU33 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage

7 IN STOCK

SKU: UNIDOCKU33

Manufacturer: StarTech.com

RRP Price €101.33

Specifications

Hard drive

Storage media type

HDD, SSD

Storage drive interface

Parallel ATA (IDE), Serial ATA, Serial ATA II, Serial ATA III

Storage drive sizes supported

2.5,3.5"

Number of storage drives supported

Maximum storage capacity

6 TB

Ports & interfaces

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B

USB 3.2 Gen 1 (3.1 Gen 1) ports quantity

DC-in jack

Yes

Features

Product colour

Black

Material

Plastic

Maximum data transfer rate

5 Gbit/s

Hot-swap

Yes

Plug and Play

Yes

RAID support

LED indicators

Activity, Power

UASP support

Yes

Certification

CE, FCC

Cooling

Built-in fan

Power

AC input voltage

110-240 V

Input current

1.3 A

Output voltage

12 V

Output current

3 A

Power plug type

Type M

Weight & dimensions

Width

130 mm

Depth

147 mm

Height

70 mm

Weight

500 g

Packaging data

Package width

123 mm

Package depth

187 mm

Package height

214 mm

Package weight

1 kg

Packaging content

AC adapter included

Yes

Cables included

USB

Manual

Yes

Operational conditions

Operating temperature (T-T)

5 - 80 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

8 - 90%

Other features

Chipset

JMicron - JMS561U, JMD330

Mean time between failures (MTBF)

30000 h

Compliance certificates

RoHS

Logistics data

Harmonized System (HS) code

84733080

Master (outer) case width

210 mm

Master (outer) case length

625 mm

Master (outer) case height

450 mm

Products per master (outer) case

10 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.5 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
