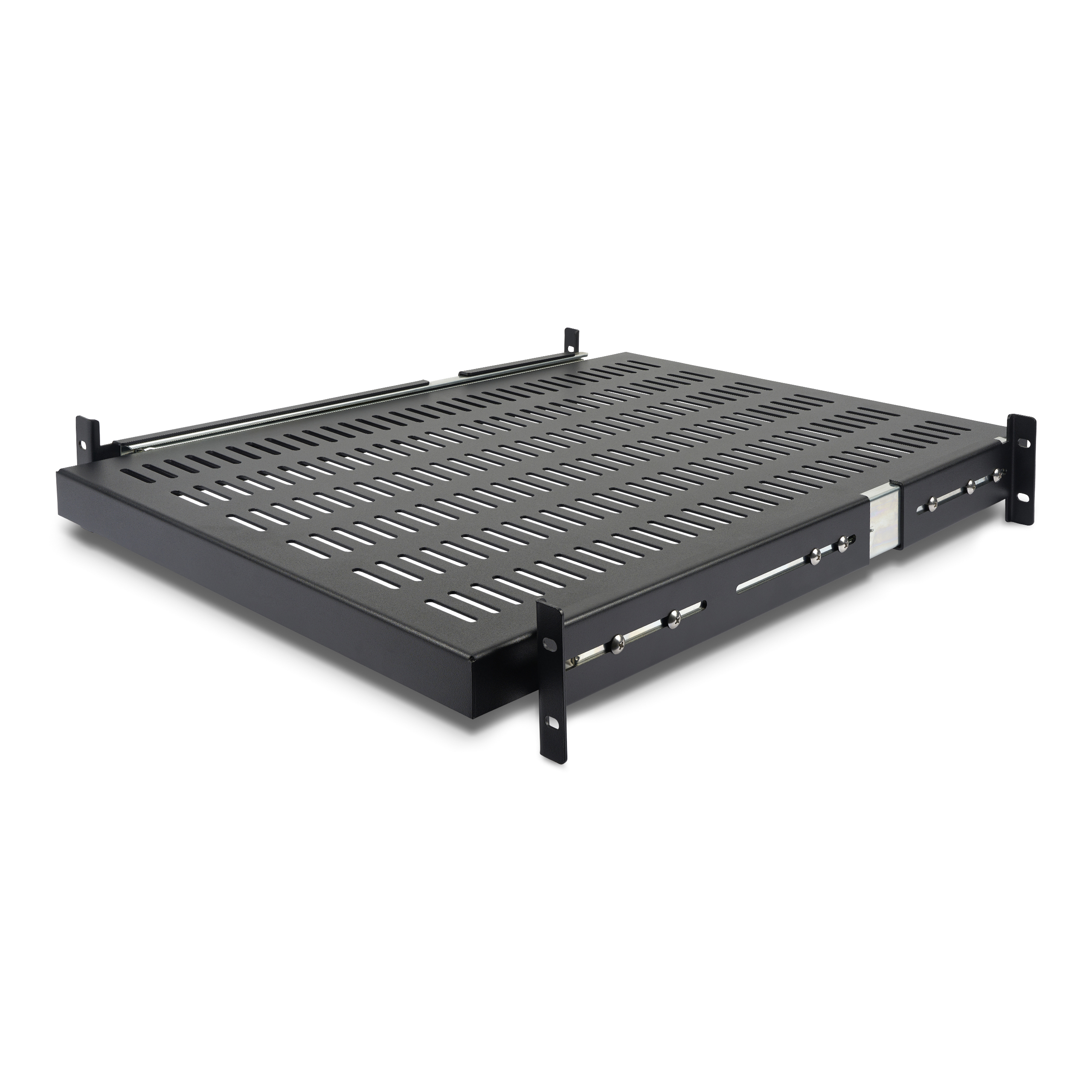

StarTech.com 2U Sliding Server Rack Mount Shelf - 20 to 30in Adjustable Mounting Depth - Vented - 50lb - Heavy Duty Universal 19” Rack Shelf for Equipment Rack - 24in Deep

Increase peripheral and equipment accessibility with this vented sliding cabinet shelf

The UNISLDSHF19 19in Vented Adjustable Mounting Depth Sliding Server Rack Cabinet Shelf offers a simple way to install non rack mountable equipment into a server cabinet or open server rack.

Offering a weight capacity of up to 50 lbs (22.7 kg), the sliding rack shelf features a ventilated, cold-rolled steel shelf on two locking adjustable rails which allow the shelf to be installed into cabinets or racks with mounting depths from 20in (510mm) to 30in (744mm). The locking feature locks the shelf 3/4 of the way out, preventing the shelf from accidentally falling out of the rack or sliding back in before maintenance is complete.

The StarTech.com Advantage

8 IN STOCK

SKU: UNISLDSHF19

Manufacturer: StarTech.com StarTech.com

RRP Price €143.20

Specifications

Features

Type
Adjustable shelf
Product colour
Black
Housing material
Steel
Maximum weight capacity
22.7 kg
Rack capacity
2U
Compliance industry standards
EIA RS310-C

Weight & dimensions

Width
452 mm
Depth
610 mm
Height
45 mm
Mounting depth (min)
51 cm
Mounting depth (max)
74.4 cm
Weight
6.4 kg

Packaging data

Package width
527 mm
Package depth
680 mm
Package height
138 mm
Package weight
8.4 kg

Packaging content

Screws included
Yes
Screw type
M6
Number of screws
8
Cage nuts included
Yes
Number of cage nuts
8

Technical details

Compliance certificates
CE, RoHS

Logistics data

Master (outer) case width
527 mm
Master (outer) case length
680 mm
Master (outer) case height
138 mm
Products per master (outer) case
1 pc(s)
Harmonized System (HS) code
85389099
