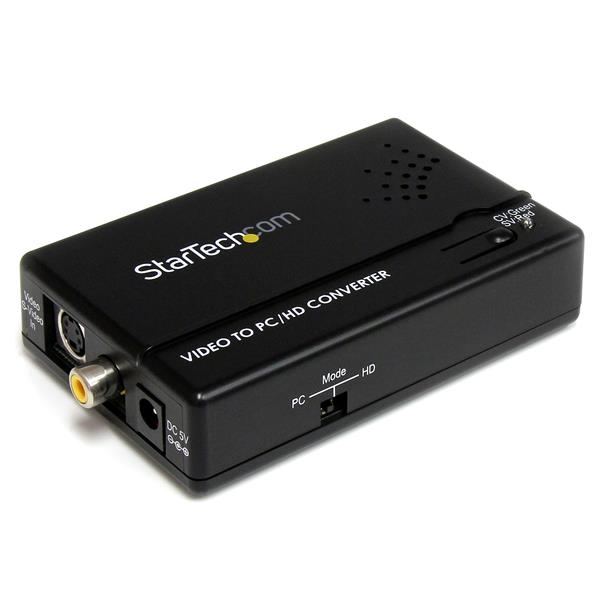

StarTech.com Composite and S-Video to VGA Video Scan Converter

Name: StarTech.com Composite and S-Video to VGA Video Scan Converter
Brand: StarTech.com
SKU: VID2VGATV2
Price: 226.64 EUR
Availability: InStock

Convert and Scale a Composite or S-Video Signal to Work with a VGA Display

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
- Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
- Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution

7 IN STOCK

SKU: VID2VGATV2

Manufacturer: StarTech.com

RRP Price €226.64

Specifications

Features

Converter type

Active video converter

On Screen Display (OSD)

Yes

Plug and Play

Yes

Product colour

Black

Housing material

Plastic

Certification

CE, FCC, TAA, REACH

Video

Maximum video resolution

1600 x 1200 pixels

Video resolutions

1024 x 768,1280 x 1024,1600 x 1200

Analog signal format system

NTSC, PAL

Maximum refresh rate

60 Hz

Ports & interfaces

Host interface

Composite, S-Video

Output interface

VGA

Power

External power adapter

Yes

Operating voltage

5 V

Operating current

1 A

Power consumption (typical)

2.5 W

Technical details

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

0 - 60 °C

Operating relative humidity (H-H)

0 - 60%

Weight & dimensions

Width

64 mm

Depth

112 mm

Height

26 mm

Weight

86 g

Packaging data

Package width

209 mm

Package depth

118 mm

Package height

61 mm

Package weight

459 g

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.086 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
