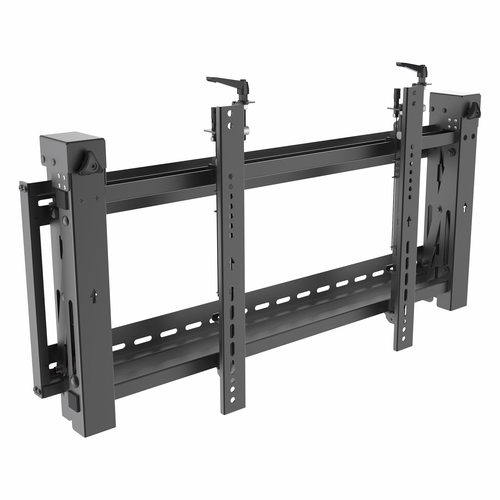

StarTech.com Video Wall Mount - Pop-Out Design - Micro-Adjustment

TV Video Wall System | Steel | Anti-Theft | For 45" to 70" Displays

This professional video-wall mount features an innovative pop-out design that enables fast and easy display alignment and adjustment, within a multi-display video wall.

A Versatile Video Wall Mounting System

Engineered with heavy-duty steel, the video-wall mount securely supports 45" to 70" displays, weighing up to 154 lb. (70 kg).

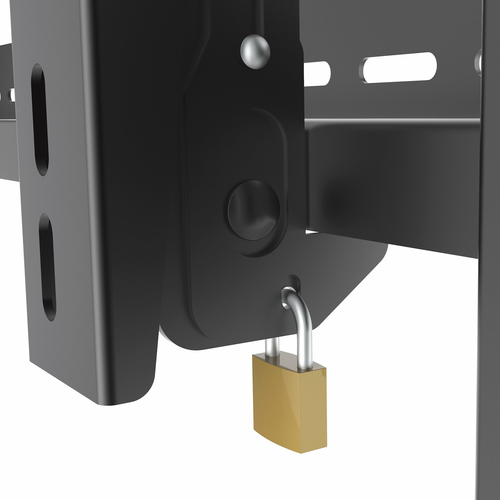

Using multiple VIDWALLMNT wall mounts, you can create an impressive video wall, enabling you to align your displays in unison. It’s the ideal solution for public, business and commercial displays and includes a theft deterrence feature (padlock required).

Align Your Displays Seamlessly

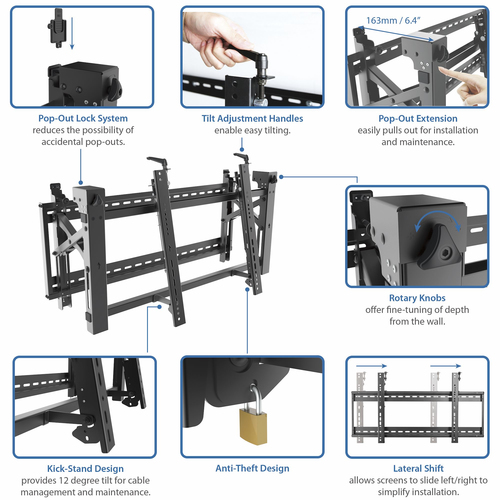

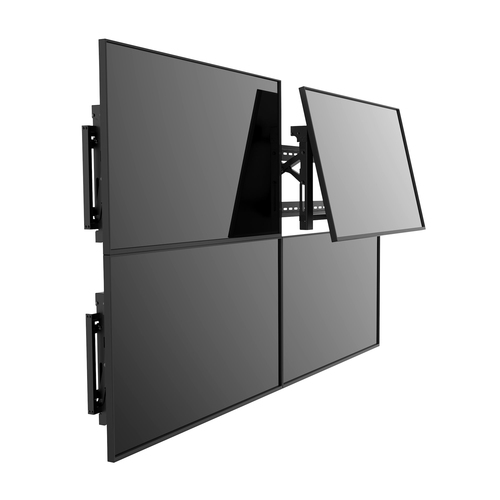

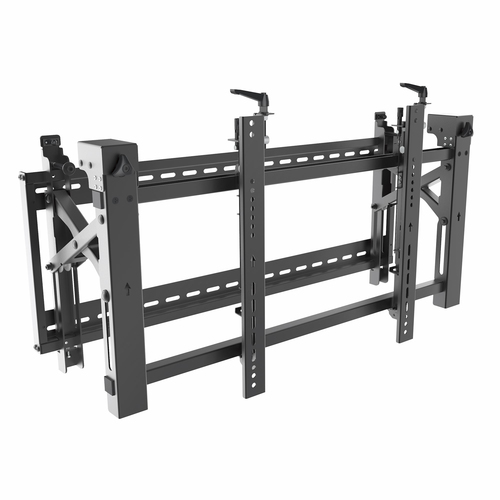

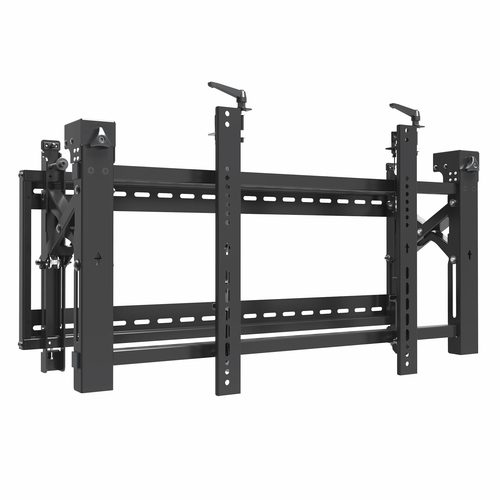

With its unique pop-out design, the video wall mount helps you align your displays with perfect precision. Once installed, you simply press gently on the front of the display and the mount extends out from the wall for rear-screen access. This pop-out feature makes it easy to adjust the position and angle of the display, or replace a display when required.

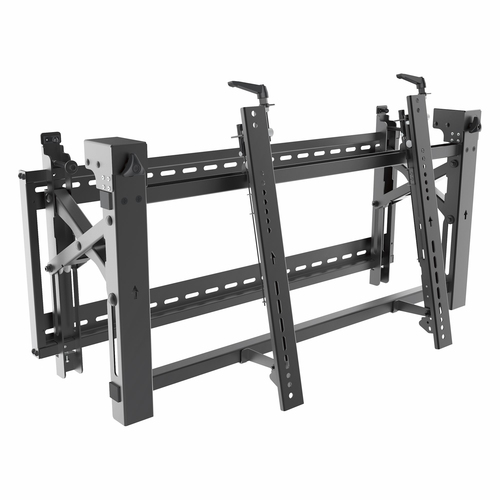

The video-wall mount features 6 points of micro-adjustment, with vertical, tilt and swivel adjustments, to provide exact display alignment and an optimum viewing angle.  You can tilt your display +3 / -5 degrees, adjust the swivel angle +1.2 / - 1.2 degrees, and rotate the display +3 / - 3 degrees. The video-wall mount also features lateral shift brackets, making it easy to move the display to the left or right for ideal alignment in your video wall.

Easy Installation and Maintenance

This video-wall mounting system is designed for easy set-up and maintenance. The pop-out design also assists in installation and maintenance, plus a convenient kickstand allows you to tilt the display up to 12 degrees giving you extra room when adjusting cables or accessing ports.

The VIDWALLMNT is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Create an impressive video wall with this flat-screen TV mount, supporting a 45" to 70" display (theft deterrent design); Heavy-duty steel construction supports displays up to 154 lb. (70 kg)
- Pop-out design extends up to 12" (306 mm) to give rear-screen access for display adjustment
- 6 points of micro-adjustment (vertical, tilt and swivel) for exact display alignment

ON ORDER

SKU: VIDWALLMNT

Manufacturer: StarTech.com StarTech.com

RRP Price €591.14

Specifications

Mounting

Maximum weight capacity
70 kg
Minimum screen size
114.3 cm (45")
Number of displays supported
1
Maximum screen size
177.8 cm (70")
Mounting type
Wall
Minimum VESA mount
200 x 200 mm
Maximum VESA mount
600 x 400 mm
Panel mounting interface
200 x 200,300 x 300,400 x 200,400 x 400,600 x 400

Ergonomics

Tilt angle range
-5 - 3°
Swivel angle range
-1.2 - 1.2°
Distance to the wall (min)
14.2 cm
Distance to the wall (max)
30.6 cm

Design

Product colour
Black
Housing material
Aluminium, Steel
Accepts padlock
Yes
Certification
CE, REACH

Weight & dimensions

Width
306 mm
Depth
934 mm
Depth (max)
93.4 cm
Height
483 mm
Weight
13.5 kg

Packaging data

Package width
510 mm
Package depth
1000 mm
Package height
209 mm
Package weight
16.4 kg

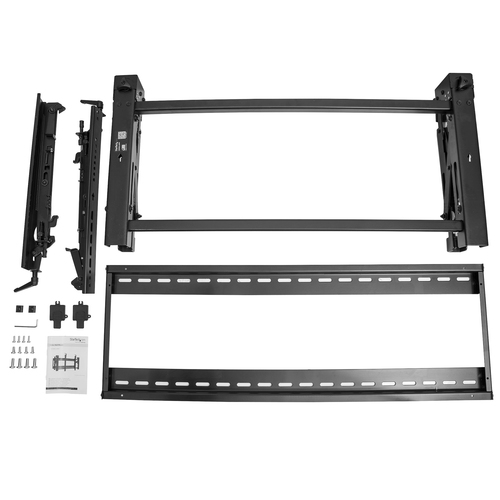

Packaging content

Manual
Yes
Screws included
Yes
Number of screws
26
Wrench included
Yes
Wrench type
Hexagonal wrench
Washers included
Yes
Number of washers included
6
Spacer included
Yes
Number of spacers included
12

Technical details

Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
85299097
Master (outer) case width
510 mm
Master (outer) case length
1010 mm
Master (outer) case height
209 mm
Products per master (outer) case
1 pc(s)
