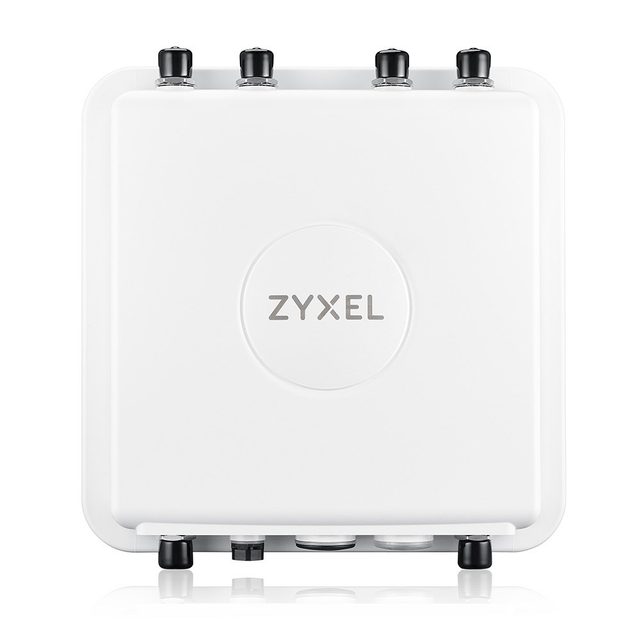

Zyxel WAX655E 4800 Mbit/s White Power over Ethernet (PoE)

Extend WiFi to Crowded Outdoor Environments

Designed to combat congested mobile data networks and bad WiFi offloading, the Zyxel WAX655E access point provides multi-gigabit wireless connectivity in large open areas, such as stadiums and parking lots.

Fully equipped with the latest WiFi 6 technologies, the WAX655E is able to provide both superb performance and user satisfaction in public environments.

Ideal for Harsh Outdoor Connectivity
The WAX655E offers up to IP67 industry-grade weather proofing and the capability to work in extremely high- or low-temperature conditions.

Also, the built-in surge protector of WAX655E provides an extra layer of protection for your investments against surges caused by lightning.

Extending Your WiFi Coverage with Smart Mesh
Zyxel’s Smart Mesh Technology not only can form dynamic wireless links between APs to extend coverage in the high-density outdoor environments, but also bridge the wireless connectivity from one building to another. The WAX655EE is an ideal choice for expanding your wireless network to busy outdoor areas as well as forming an interconnected wireless network through outdoor inter-building links.

Manage it your way!
The WAX655E comes with the support of NebulaFlex Pro, which offers the full flexibility for users to easily switch between, Zyxel Nebula cloud-managed, controller-managed, and standalone modes. You can choose the appropriate managed-mode best suited for your needs.

ON ORDER

SKU: WAX655E-EU0101F

Manufacturer: Zyxel Zyxel

RRP Price €1,009.07

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
6 GHz
No
Maximum data transfer rate
4800 Mbit/s
Maximum data transfer rate (2.4 GHz)
575 Mbit/s
Ethernet LAN data rates
1000,2500 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO
Yes
MIMO type
Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)
Yes
VLAN support
Yes

Security

Security algorithms
WEP, WPA2, WPA2-PSK, WPA3
MAC address filtering
Yes

Management features

Web-based management
Yes
Firmware upgradeable
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

Power over Ethernet (PoE)
Yes
Power consumption (max)
25.5 W

Design

Placement
Pole, Wall
Product colour
White
International Protection (IP) code
IP67

Antenna

Antenna type
External
Antenna features
Detachable antenna
Antennas quantity
6
Antenna connector type
N-type
Number of connectors
6

Certificates

Certification
FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002

Weight & dimensions

Width
256 mm
Depth
257 mm
Height
70 mm
Weight
1.36 kg

Packaging data

Package width
427 mm
Package depth
284 mm
Package height
111 mm
Package weight
2.92 kg

Packaging content

Quantity per pack
1 pc(s)

Operational conditions

Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-40 - 65 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
10 - 90%

Accessories

License
