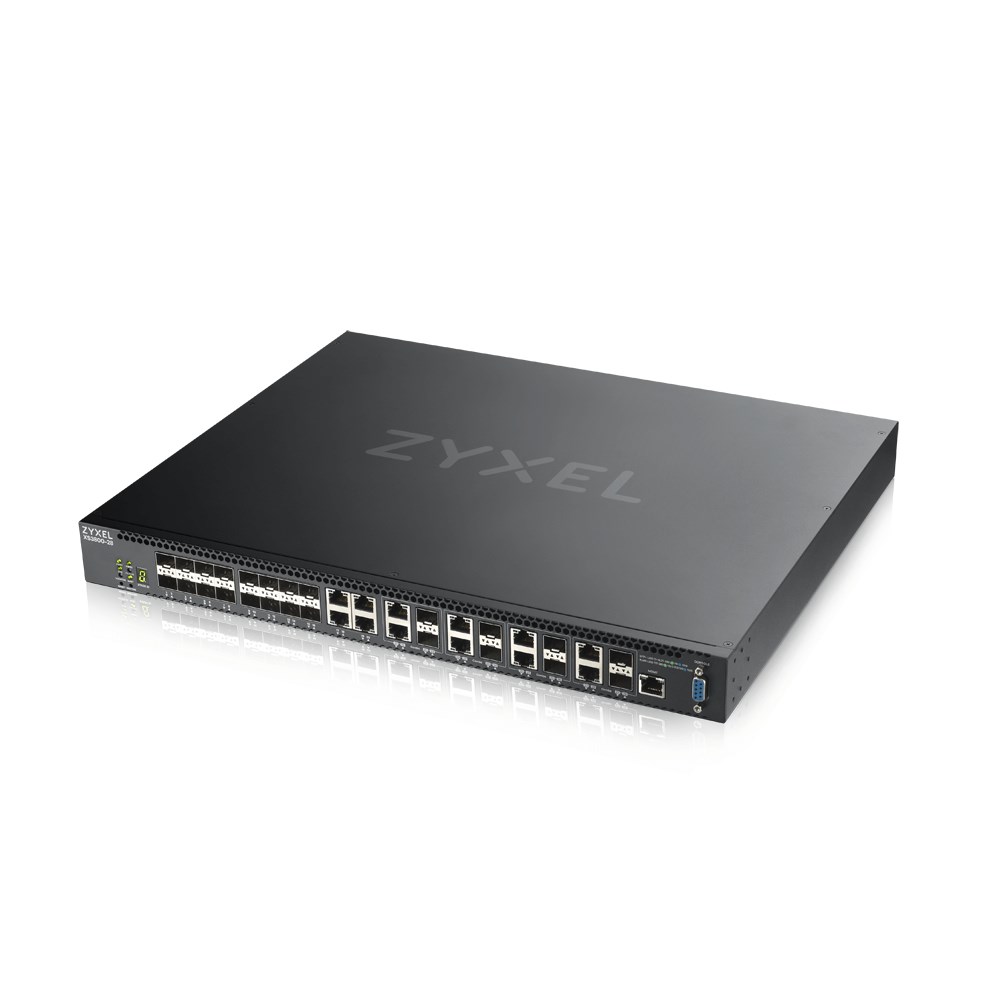

Zyxel XS3800-28 Managed L2+ 10G Ethernet (100/1000/10000) Black

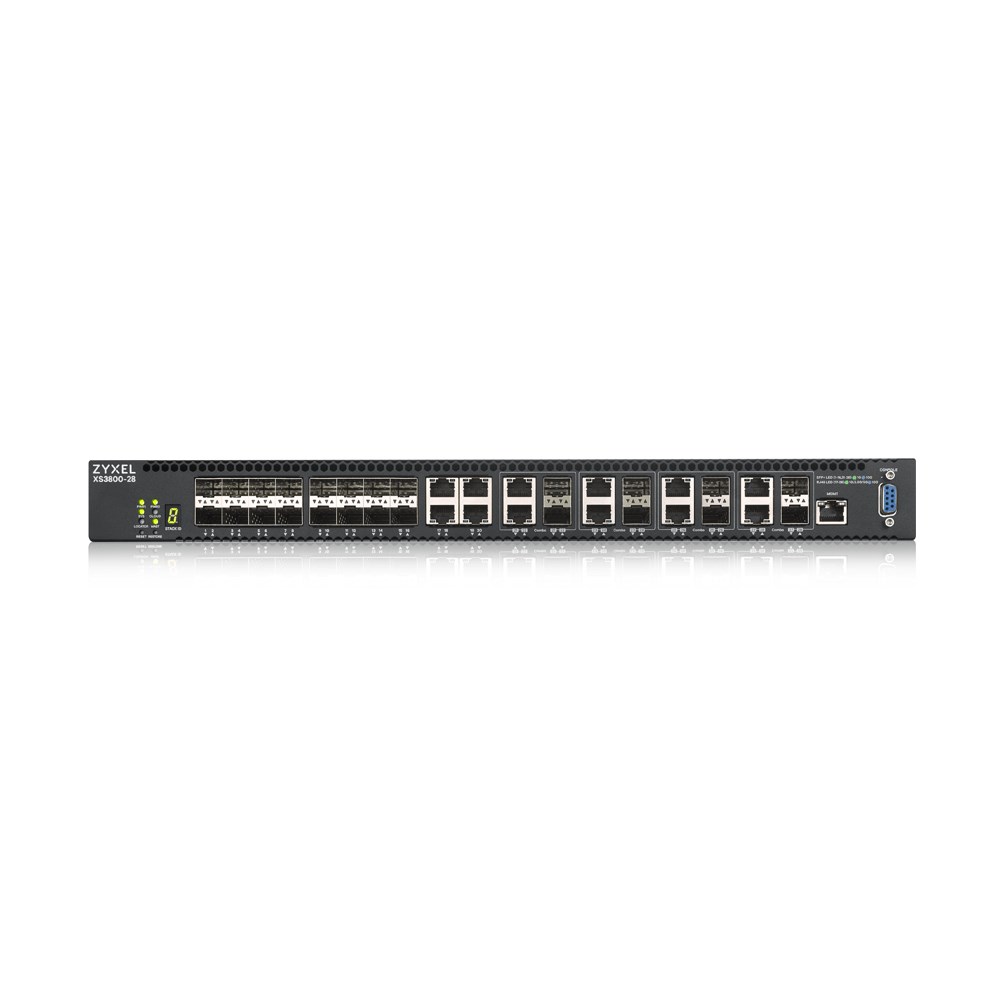

Flexible port design
XS3800-28 offers a maximum of 24 10G fiber ports or 12 10G copper ports that are for most flexible adoption to your networks.

Essentials of a core switch
XS3800-28 is suitable for network aggregation such as SMB or campus networks that require low latency and high-density 10G backbone architectures with basic routing capability.

Restore Button
The "Restore" button saves the last workable configuration as the custom default, which allows you to fall back instantly in case of network misconfigurations.

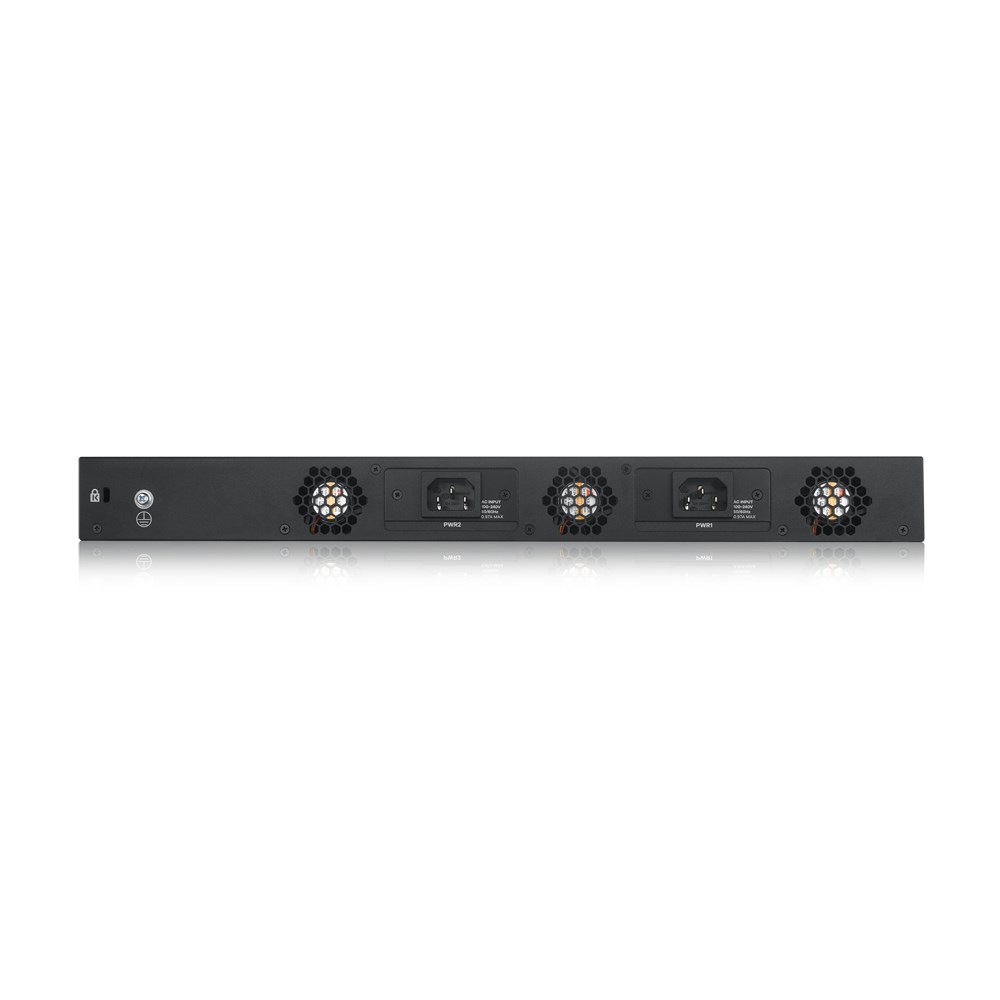

Dual Power
Two PSUs support active-standby power redundancy that triggers backup power supply if the main unit fails.

Designed for the long haul
Quality hardware design is how Zyxel differentiate ourselves from others. We ensure stability and longevity for XS3800-28 for your networks.

ON ORDER

SKU: XS3800-28-ZZ0101F

Manufacturer: Zyxel Zyxel

RRP Price €3,755.25

Specifications

Management features

Switch type
Managed
Switch layer
L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Traffic classification
Yes
Traffic shaping
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
MIB support
Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Combo SFP ports quantity
8
SFP+ module slots quantity
16
Fiber optic connector
SFP+
Power connector
AC-in jack

Network

Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Copper ethernet cabling technology
10GBASE-T, 100BASE-T, 1000BASE-T
Port mirroring
Yes
IP routing
Yes
Policy-based routing
Yes
Flow control support
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Auto-negotiation
Yes
VLAN support
Yes

Optical fiber

Fiber ethernet cabling technology
1000BASE-X

Data transmission

Switching capacity
560 Gbit/s
Forwarding rate
416 Mpps
MAC address table
32000 entries
Packet buffer memory
4 MB

Security

DHCP features
DHCP client, DHCP relay, DHCP server
Access Control List (ACL)
Yes
IGMP snooping
Yes
IGMP proxy
Yes
MAC address filtering
Yes
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication
Password protection
Yes

Multicast features

Multicast support
Yes

Design

Rack mounting
Yes
Product colour
Black
Reset button
Yes

Performance

Internal memory
8000 MB
Flash memory
64 MB
Mean time between failures (MTBF)
656274.78 h

Power

Power supply included
Yes
Redundant power supply (RPS) support
Yes
Number of power supply units
2
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 95%

Weight & dimensions

Width
441 mm
Depth
340 mm
Height
44 mm
Weight
4.81 kg

Packaging content

Cables included
AC
Rack mount kit
Yes

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
