Axis 01633-001 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Name: Axis 01633-001 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Brand: Axis
SKU: 01633-001
Price: 979.43 EUR
Availability: InStock

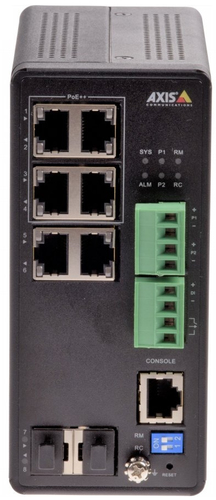

AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -40 °C to 75 °C (-40 °F to 167 °F), making it perfect for high demanding installations such as alongside highways and tunnels.

5 IN STOCK

SKU: 01633-001

Manufacturer: Axis Axis

RRP Price €979.43

Specifications

Management features

Switch type

Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Fiber optic connector

SFP

Console port

RJ-45

Power connector

DC-in jack

Network

Networking standards

IEEE 802.1Q, IEEE 802.1x

10G support

VLAN support

Yes

Data transmission

Switching capacity

16 Gbit/s

Throughput

11.9 Mpps

MAC address table

8000 entries

Jumbo frames support

Yes

Jumbo frames

9216

Security

Security algorithms

HTTPS, SNMP, SNMPv3

Password protection

Yes

Authentication type

RADIUS

Design

Product colour

Black

Housing material

Aluminium

Power

DC input voltage

54 - 57 V

Surge protection

Yes

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) ports quantity

Power over Ethernet (PoE) power per port

60 W

Total Power over Ethernet (PoE) budget

240 W

Operational conditions

Operating temperature (T-T)

-40 - 75 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

62 mm

Depth

130 mm

Height

135 mm

Weight

600 g

Packaging content

Quick start guide

Yes

Packaging data

Mounting brackets included

Yes

Certificates

Certification

EN 55032, EN 55024, FCC, ICES-003, VCCI, RCM AS/NZS CISPR 32, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 IEC 62236-4, IEC/EN/UL 60950-1, IEC 60068-2-6, IEC 60068-2-27, 60068-2-31, NEMA TS-2-2003

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Axis

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

0.6 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
