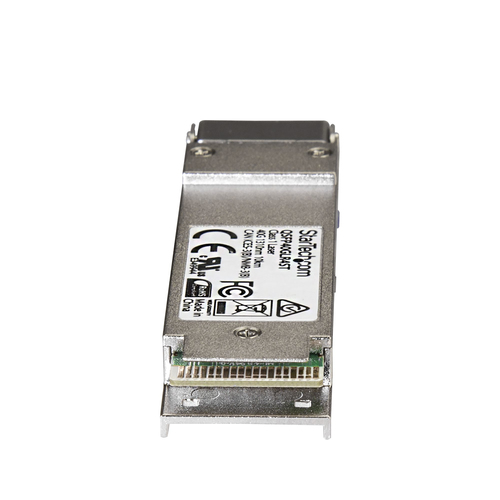

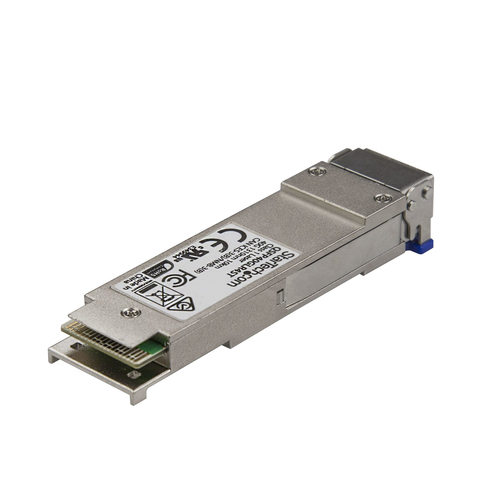

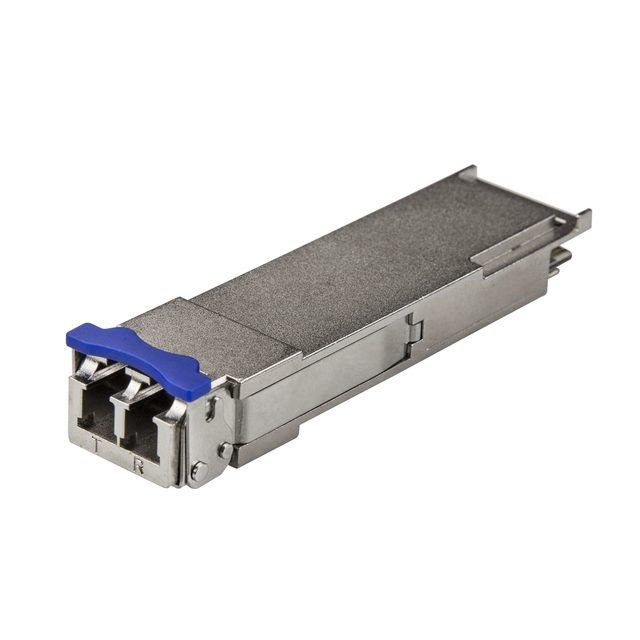

StarTech.com Extreme Networks 10320 Compatible QSFP+ Module - 40GBASE-LR4 - Single Mode Fiber (SMF) - 40GE Gigabit Ethernet QSFP+ - LC 6.2 mi - 1270nm to 1330nm - DDM~Extreme Networks 10320 Compatible QSFP+ Module - 40GBASE-LR4 - Single Mode Fiber (SMF) - 40GE Gigabit Ethernet QSFP+ - LC 10 km - 1270nm to 1330nm - DDM

40 Gbps | Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The 10320-ST is an Extreme Networks® 10320 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 95,832,026 hours
• Power Consumption:

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: 10320-ST

Manufacturer: StarTech.com StarTech.com

RRP Price €1,563.10

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
41250 Mbit/s
Interface type
QSFP+
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
Fiber optic connector
LC
SFP transceiver standard
LR4
Maximum transfer distance
10000 m
Tx wavelength (min)
1270 nm
Tx wavelength (max)
1330 nm
Duplex system
Full
Digital Diagnostics Monitoring (DDM)
No

Features

Product colour
Silver
Hot-swap
Yes
Mean time between failures (MTBF)
95832026 h
Brand compatibility
Extreme Networks
Compatible products
10320

Power

Power consumption (typical)
2.5 W

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, UR

Weight & dimensions

Width
18.3 mm
Depth
72 mm
Height
13 mm
Weight
44 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
90 mm
Package depth
115 mm
Package height
31 mm
Package weight
50 g

Logistics data

Master (outer) case width
340 mm
Master (outer) case length
420 mm
Harmonized System (HS) code
85369010
Master (outer) case height
350 mm
Products per master (outer) case
100 pc(s)
