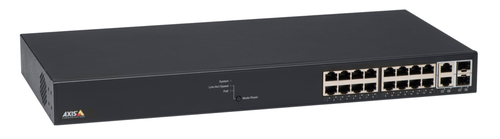

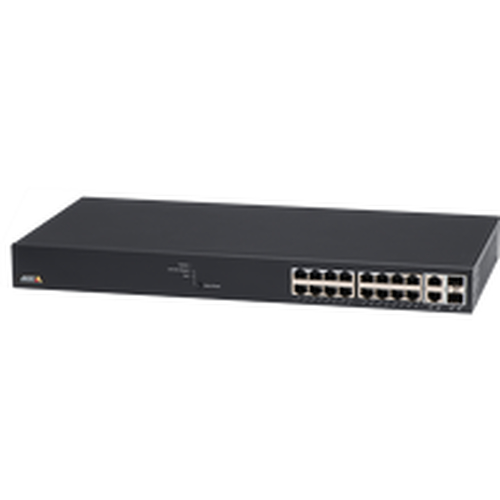

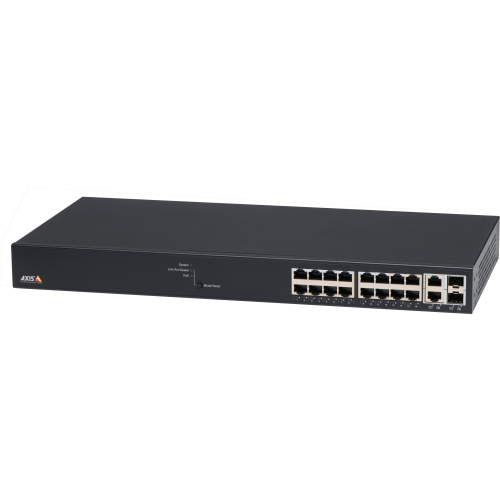

Axis 5801-692 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

AXIS T8516 PoE+ Network Switch is an easy to install 16-port managed Gigabit switch - a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. AXIS T8516 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 16 PoE cameras.

2 IN STOCK

SKU: 5801-692

Manufacturer: Axis Axis

RRP Price €1,021.66

Specifications

Management features

Switch type
Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity
2

Network

Networking standards
IEEE 802.3af, IEEE 802.3at
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support
Yes

Data transmission

Switching capacity
36 Gbit/s
Throughput
26.8 Mpps
MAC address table
8000 entries
Jumbo frames support
Yes
Jumbo frames
9216

Security

Access Control List (ACL)
Yes
Security algorithms
HTTPS, SNMP, SSH

Design

Product colour
Black
Reset button
Yes
LED indicators
Activity, Link, PoE, Speed, System

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Output power
240 W
Power consumption (max)
285 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-10 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
442 mm
Depth
211 mm
Height
44 mm
Weight
3 kg

Packaging data

AC adapter included
Yes
Rubber feet
Yes

Logistics data

Harmonized System (HS) code
85176990
